OZONE BLASTER ADJ CE
OZONE BLASTER ADJ
Electronic Air Purification System
READ MANUAL CAREFULLY FOR PROPER PROCEDURES AND OPERATION.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OzoneBlaster and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for activTek OzoneBlaster

Summary of Contents for activTek OzoneBlaster

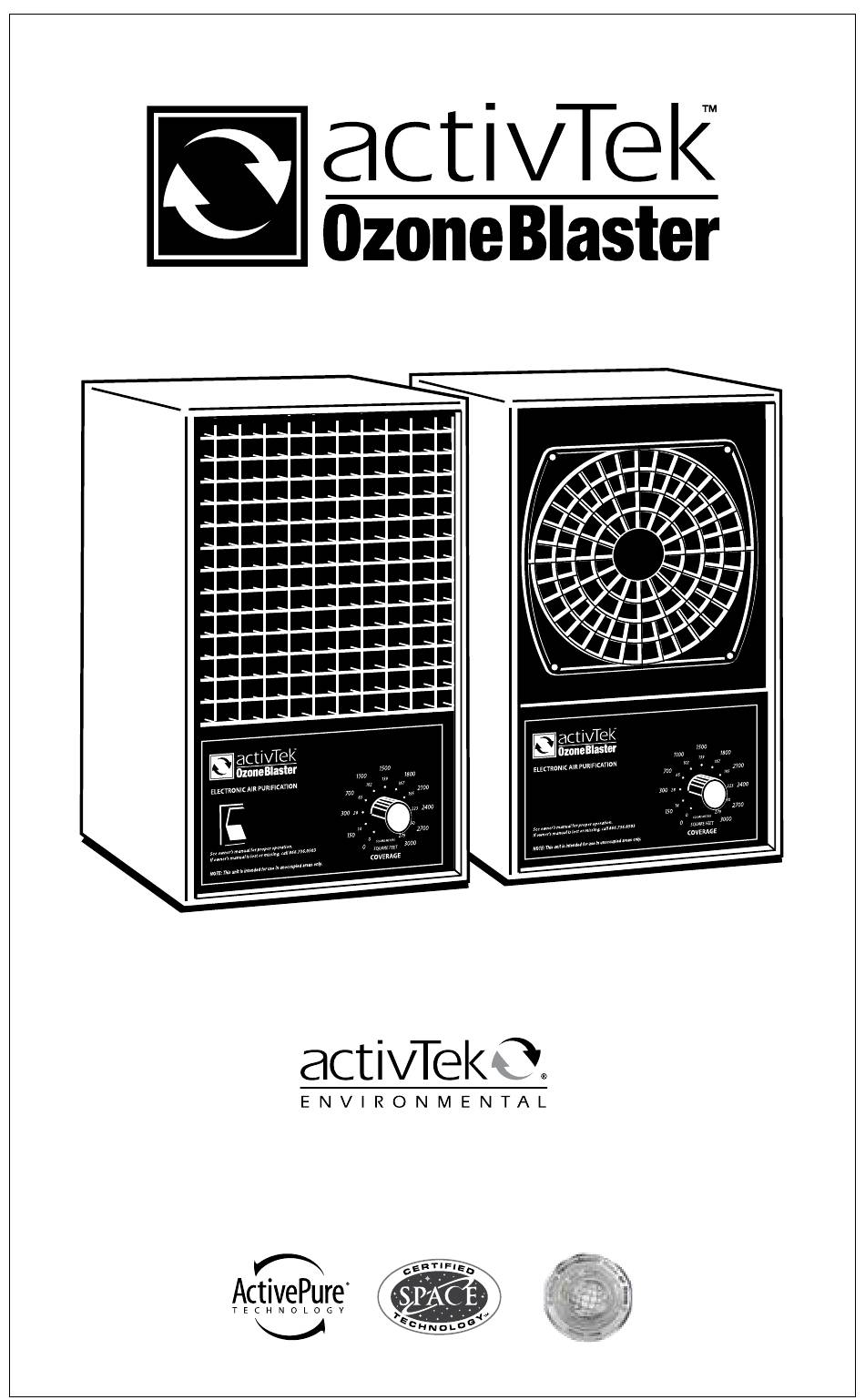

  • Page 1 OZONE BLASTER ADJ CE OZONE BLASTER ADJ Electronic Air Purification System READ MANUAL CAREFULLY FOR PROPER PROCEDURES AND OPERATION.

  • Page 2: Table Of Contents

    Please record the name and phone of your activTek Distributor: Name___________________________________________________________________________ Phone __________________________________________________________________________ Please record the serial number of your Ozone Blaster by activTek: Serial # _________________________________________________________________________ CAUTION: This unit is to be used in unoccupied areas only . WARNING: DO NOT operate this unit without the lint screen installed .

  • Page 3: Applications

    MECHANICAL: • 52 CFM • One front-mounted control for ozone output SIZE: • Height: 11 3/4"; Width: 8"; Depth: 9 3/4" • Weight: 16 pounds OZONE OUTPUT: • 0-1,200mg per hour This owner’s manual is also available online at: http://www.activTek.net...

  • Page 4: Principles Of Operation

    PRINCIPLES OF OPERATION Nature cleans the air with the lightning and rain . Lightning bolts produce ozone which cleans the air naturally . Rain helps bring the ozone closer to the earth's surface . They are then attracted to atmospheric contaminants that are either removed from the air and attached to grounded objects or are oxidized .

  • Page 5: Placing The Unit

    PLACING THE UNIT Place the unit as high as possible (5 to 6 feet from the floor – top of a bookshelf, high cabinet, etc . ) and at least 6 inches from wall or other obstruction for maximum effectiveness . Do not point the unit towards a wall or directly at the ceiling .

  • Page 6: Ozone Plate Installation

    OZONE PLATE INSTALLATION The Ozone Blaster utilizes two ozone plates . Unplug the unit before doing any work . Remove two (2) screws and clip from top of unit . Remove filter by tilting and pulling up . Fully insert the ozone plates (a & b) between the guide-grooves in the top and bottom of the plate cage (between the posts and clips) making sure the metal clip on each side of the plate is in...

  • Page 7: Lint Screen Installation

    LINT SCREEN INSTALLATION Always install bottom of lint screen first . The lint screen should depress the safety switch . Fit top of lint screen into cabinet . Lint Unit will not operate if safety switch is not depressed . Screen Safety SETTING/ADJUSTING...

  • Page 8: Maintenance

    SETTING/ADJUSTING (CONTINUED) 4. TREATING AN AREA 4a. SITE PREPARATION • Remove the contaminant or debris that may be associated with the source of the problem . • Clean excess contaminate residue off surfaces . • Seal the environment intended to be treated . Close vents and air returns . It may be necessary to seal off return vents to prevent leakage of ozone into other areas .
  • Page 9 MAINTENANCE (CONTINUED) OZONE PLATE Carefully remove the plates (a & b) from the card cage by grasping the middle of the edge nearest to you and slowly pulling straight out . For all applications - Clean with 50% ammonia and 50% water to remove contaminates .

  • Page 10: Troubleshooting

    TROUBLESHOOTING I have plugged in the unit, turned "ON" the power switch and nothing happens… what's wrong? • Make sure cord is securely plugged into the back of the unit and into a working electrical outlet . • Check the lint screen located at the back of the machine to ensure that the safety switch activator clip depresses the safety switch .
  • Page 11 • Is the unit properly placed away from objects that may obstruct air flow? • Are the filter and fan housing clean? If your unit fails to operate properly after performing troubleshooting, contact your activTek Distributor . For further assistance, contact us at the address located on the back of the manual, or visit www .activTek .com .

  • Page 12: Warranty

    Internet presence for with the Owner’s Manual . Failure to you specific legal rights and you may activTek products is www . a ctivTek . meet any of these requirements will void also have other rights which vary from net .
