PRINCIPLES OF OPERATION
The activTek INDUCT 500 utilizes tested ActivePure
Technology to substantially reduce odors, visible smoke in the
air, and treat contamination on surfaces.

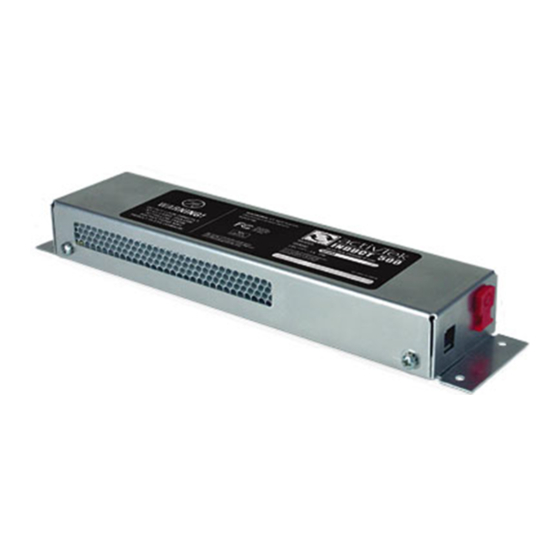

The activTek INDUCT 500 designed to be installed inside the
ductwork of an in-wall heating and air conditioning unit. Optional ozone
units are available with the same basic components as ozone-free units
and an ozone bulb.
INSPECTION
1. Remove unit from shipping carton.
2. Remove all protective materials.
3. Check for loose or broken parts due to shipping damage.
4. Read owner's manual thoroughly prior to installation.
5. Determine placement location for the unit, follow installation
instructions in this owner's manual.
Fastener Locations
Power Connection
Please record the name and phone of your independent activTek Environmental Distributor:
Name _____________________________________________________________________________________
Phone _____________________________________________________________________________________
Please record the serial number of your activTek INDUCT 500:
Serial # ____________________________________________________________________________________
WARNING! - UV Lamp operation. Do not operate unless the unit is completely and correctly assembled. Failure to
comply may result in serious eye damage.
CAUTION! - For outlet installation only! Never connect to an extension cord or other power source. Improper
installation could result in electrical shock or short.
CAUTION: READ AND SAVE THESE INSTRUCTIONS FOR PROPER PROCEDURES AND OPERATION.
®
ActivePure
Matrix (Honeycomb)
®
SECURE AIR PURIFICATION SYSTEM
SPECIFICATIONS
Ozone Production:
• 0.00 ppm with ozone-free
replaceable UV bulb.
• 0.40 ppm maximum with ozone
replaceable UV bulb.
Features:
• ActivePure
• Convenient power cord
Electrical:
- AC Adapter
• Input: 100 -240VAC, 50/60 Hz, 1.2A
• Output: 12VDC, 3A
- activTek INDUCT 500
• 12VDC, 1.2A
Size:
• Height: 1.25" (3.175 cm); Width: 2.25"
(5.72 cm); Length: 12.38" (31.45 cm)
• Weight: .7 lb (.3 kg), Unit only
Coverage:
• Up to 500 sq. ft. (46.5 sq. m)
Hg - LAMP CONTAINS MERCURY.
Manage in accordance with local laws.
Power Supply
Technology
®
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for activTek INDUCT 500
Summary of Contents for activTek INDUCT 500
- Page 1 Power Connection Hg - LAMP CONTAINS MERCURY. Manage in accordance with local laws. Power Supply Please record the name and phone of your independent activTek Environmental Distributor: Name _____________________________________________________________________________________ Phone _____________________________________________________________________________________ Please record the serial number of your activTek INDUCT 500: Serial # ____________________________________________________________________________________ WARNING! - UV Lamp operation.
-
Page 2: Installing The Unit
Downward View 4. Place the power cord in an out-of-the-way location toward the electrical outlet. 2. Placement of the INDUCT 500 varies depending on your PTAC unit design. However, the INDUCT 500 should be placed directly in the unit’s airflow (see NOTE on this page). - Page 3 500 once a year, if cycled with fan on/off, and every 2 years, for continuous operation. If the INDUCT 500 unit is connected to the fan circuit, it will only operate when the fan runs. The INDUCT 500 unit can operate continuously if it is connected separately from the fan.
-
Page 4: Warranty Information
LIMITED 3 YEAR WARRANTY Customer should not repackage and ship the INDUCT 500 unit due to possibility of irreparable damage. For warranty service, please contact your activTek Distributor for the address of the nearest service center or call Customer Service at 866.736.0503.
