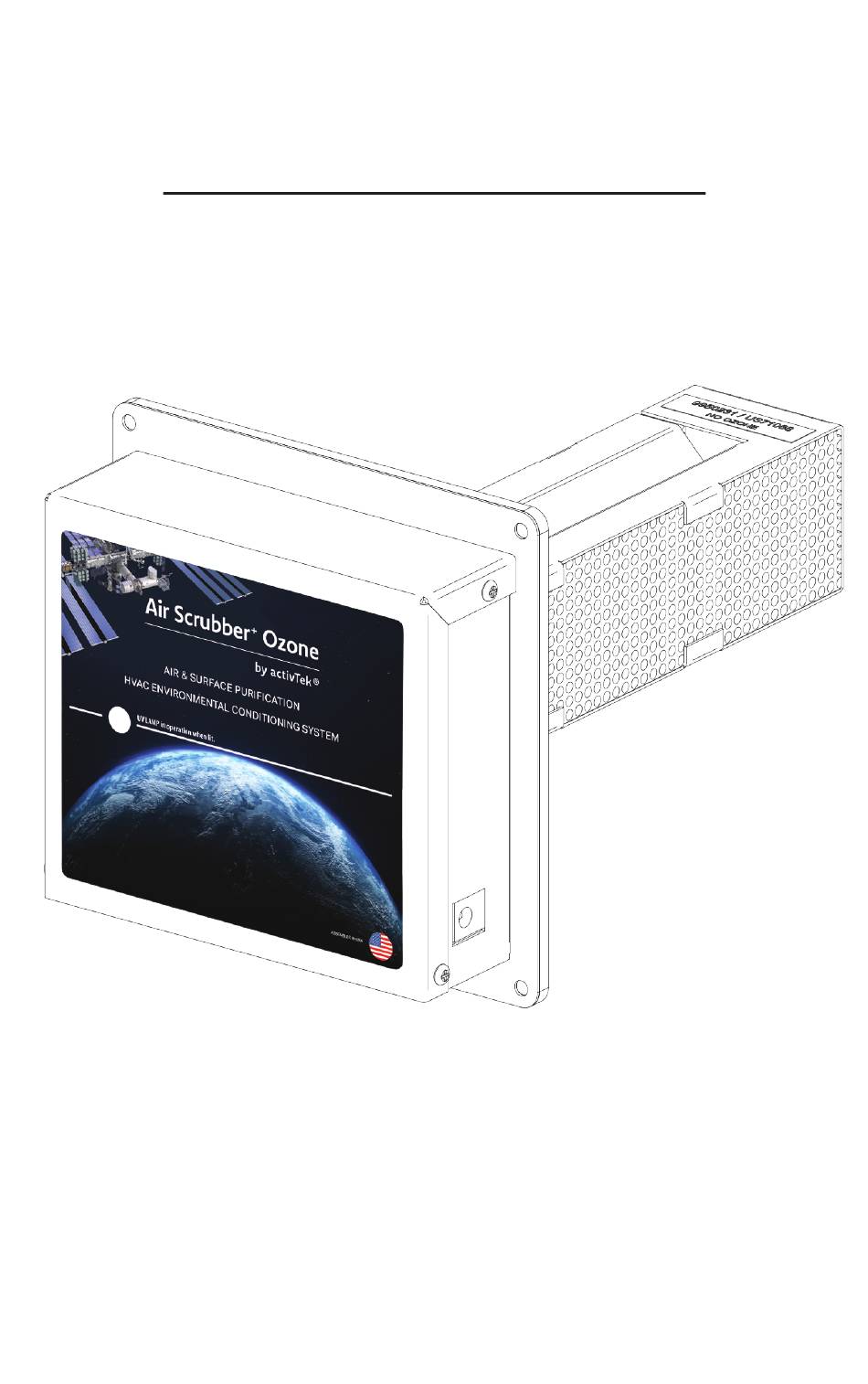

- Page 1 Air Scrubber Ozone by activTek® DUCT MOUNTED AIR & SURFACE PURIFICATION SYSTEM READ MANUAL CAREFULLY FOR PROPER USE AND OPTIMAL OPERATION.
- Page 2 ) nominal; Record information regarding your new Air Scrubber 3,000 sq. ft. (279 m ) maximum, depending upon Ozone by activTek here. Retain for future reference. occupant density and other factors. Warranty: Model No. • Limited Five (5) Year Warranty; 2 year warranty Serial No.
- Page 3 If the unit is hard wired, be sure the power to the unit is off; always follow OSHA electrical lockout safety requirements to prevent accidental release of energy during service or maintenance activities • Never attempt to check operation of the activTek Cell Assembly by direct observation; severe eye damage ®...
- Page 4 PRODUCT FEATURES It is important to be familiar with the parts of the Air Scrubber Ozone by activTek. If any parts are missing, contact your sales representative or Customer Service at 866.736.0503 or email support@activtek.net. activTek Cell Assembly (Includes UV Bulb)
- Page 5 3. When installing near a furnace or heating coils, run the heating system through the heating cycles to ensure the temperature of the Air Scrubber Ozone by activTek unit does not exceed 200˚F (93˚C). Air Handle 4. An approximate 3.5” (8.89 cm) opening will need to be cut into the existing ductwork to install the unit properly.
- Page 6 • When the unit is installed in a roof mounted HVAC system, the unit must be protected from elements CAUTION • The Air Scrubber Ozone by activTek requires power 24/7; DO NOT ® install where power to the unit will be cycled on and off Find the optimal position downstream from the air handler.
- Page 7 • Hard wiring unit into HVAC system should be done by a licensed HVAC installer or qualified electrical contractor only Ozone by activTek requires power 24/7; DO NOT • The Air Scrubber CAUTION install where power to the unit will be cycled on and off 1.
- Page 8 UV Bulb Indicator NOTE: For optimal performance and to maintain the limited 5 year warranty, it is required to replace the activTek Cell Assembly once every two (2) years, even if the UV Bulb appears to be operating normally. REPLACING THE ACTIVTEK CELL ASSEMBLY ®...
- Page 9 CELL ASSEMBLY ® (CONTINUED) 4. Remove the two (2) thumb 5. Remove the used activTek 6. Plug the new activTek Cell screws holding the activTek Cell Assembly from the Assembly into the base unit. Cell Assembly. base unit and dispose of Be sure Air Flow / Honeycomb the cell properly.
- Page 10 NOTE: UV Bulb Indicator should be lit when in operation. NOTE: Always follow OSHA electrical lockout safety requirements to prevent accidental release of energy during service or maintenance activities. For questions on maintenance procedures, contact Customer Service at 866.736.0503 or email support@activTek.net...
- Page 11 UV Bulb pins that are closest to each other. The Multimeter should beep if the filaments are not broken. Resistance can also be checked if continuity is not available on the Multimeter. Resistance should be between 3 – 5 ohms. If continuity or resistance check is bad, replace the activTek Cell Assembly.
- Page 12 REPLACEMENT PARTS & SERVICE Use only replacement parts recommended by the manufacturer. WARNING REPLACEMENT PARTS PART NUMBER activTek Cell Assembly - (1) 9” Cell (O 62005 NOTE: Not available in Canada and California Ballast 9950102 Power Cable 9950103 activTek Cell Assembly...
- Page 13 DISCLAIMED, INCLUDING ANY IMPLIED WARR ANTY OF the activTek Cell Assembly cycles “ON and OFF” with the MERCHANTABILITY OR FITNESS FOR A PARTICULAR system fan, the activTek Cell Assembly is only covered by a PURPOSE. ninety (90) day warranty from date of purchase.
- Page 14 Rules These limits are designed to Models: A1013AA provide reasonable protection against harmful interference in a residential Manufactured by: activTek Environmental, LLC installation. This equipment generates, uses, and can radiate radio frequency This device complies with Part 15 of the energy, and if not installed and used FCC Rules.
- Page 16 For information regarding the use of this product, please call Customer Service. 866.736.0503 support@activTek.net activTek Environmental, LLC 1300 Valley Drive Bristol, VA 24201 866.736.0503 Assembled in U.S.A. | © 2024 activTek Environmental, LLC All Rights Reserved...
