* For Germany and Poland, the currently selected weight range is shown. For Switzerland, this value
shows the calculated train weight depending on trailer-presence. For all other services, the maximum
permissible total weight of the train is shown if relevant for tolling, in other cases this value is empty.
The number of axles shown at the Start Display is the total number of axles for the entire vehicle (train +
trailer) consisting of the (static) number of tractor unit axles (as stated by the Service Partner during
registration) plus the actual declared trailer axles. The actual trailer axles are set according to the current status
by the driver on the OBU.
Note: The personalization of the OBU requires a GNSS signal and GPRS connection. Please ensure a free view to
the sky (GNSS satellites).

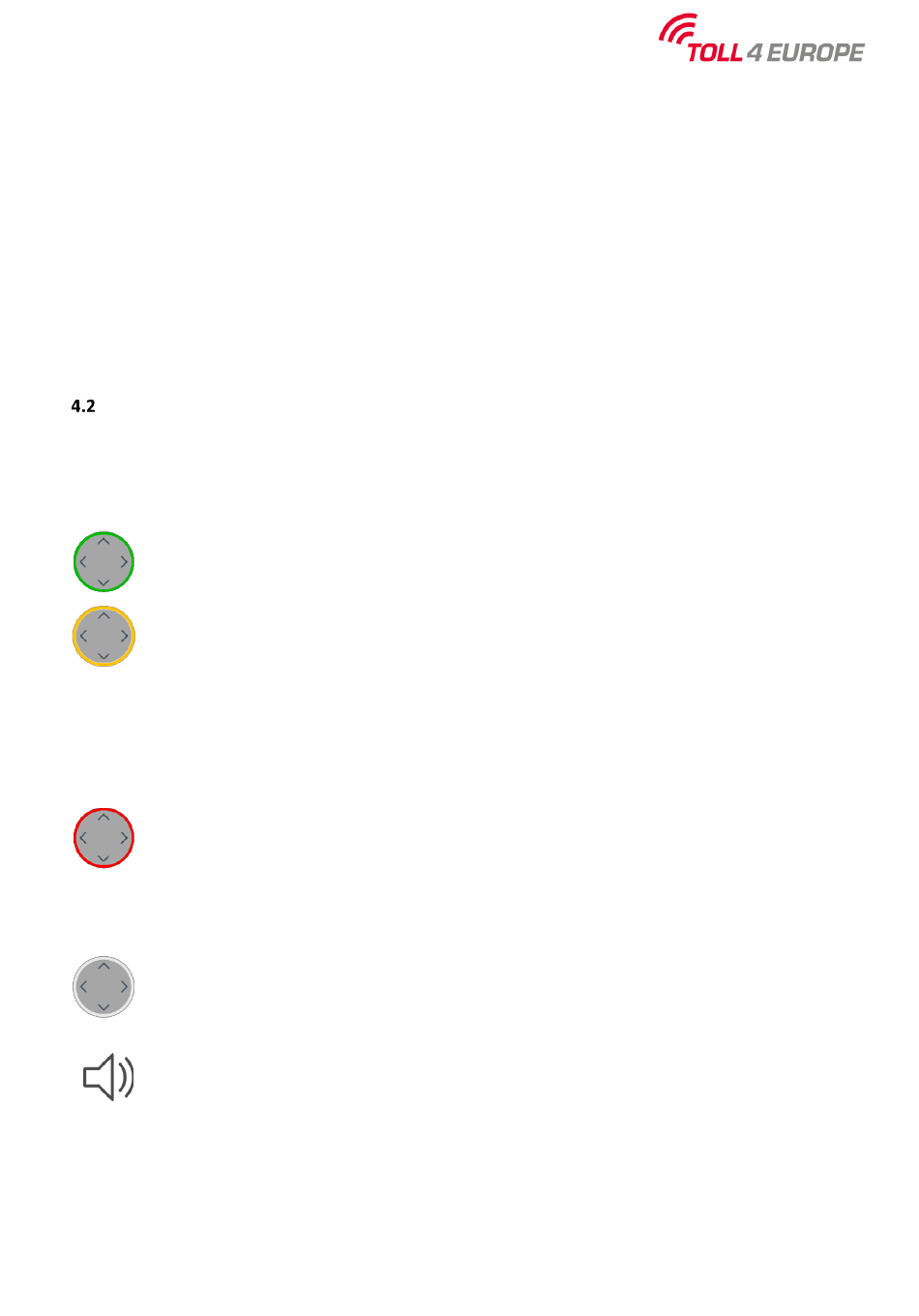

Status Indication (LED)
The status indicator is the LED ring around the navigation button. Additionally, a buzzer signals the status of the
OBU acoustically. The status indicator supports the user while driving the vehicle and gives feedback on
different statuses.
Green LED: The OBU is active and ready for operation. Toll charging for the current location
and valid. You can drive.
Yellow LED: If yellow light appears, check the message on the OBU display. OBU is either
•
not yet personalized, or
•
the toll service for the area in which the vehicle is currently located, is not activated,
or not available in the OBU, or
•
there is no electronic tolling system (e.g. Netherlands).
Please check (via the display-menu) which toll services are activated. In case of an obligation
to pay toll, use tolling equipment of local toll provider.
Red LED: Critical problem. Do not drive and contact your customer service.
If, for obvious reasons, you do not have any GPS reception (OBU goes red after 30 minutes
without GPS reception), e.g. if you find yourself in a tunnel or garage, drive to a location with
GPS reception. Whenever the status indicator is red, it also will be flashing (by default) to sig-
nal a problem.
LED off: OBU is not active. The OBU is switched off, or is in sleep mode (it will wake up with
electricity or movement).
Buzzer – for acoustic signalization:
•
signaling of performed actions or warnings, e.g. no GPS signal,
•
feedback to user interactions, e.g. changes in the menu,
•
signalling of additional information during driving.
