4 Quick Start
The OBU is prepared for the prompt use. After connecting to the power, the OBU boots immediately. The OBU
will be personalized with the vehicle data that was transmitted with the registration of the vehicle by your
Service Partner. Also, the data for the selected EETS Service are stored and personalized on the OBU.

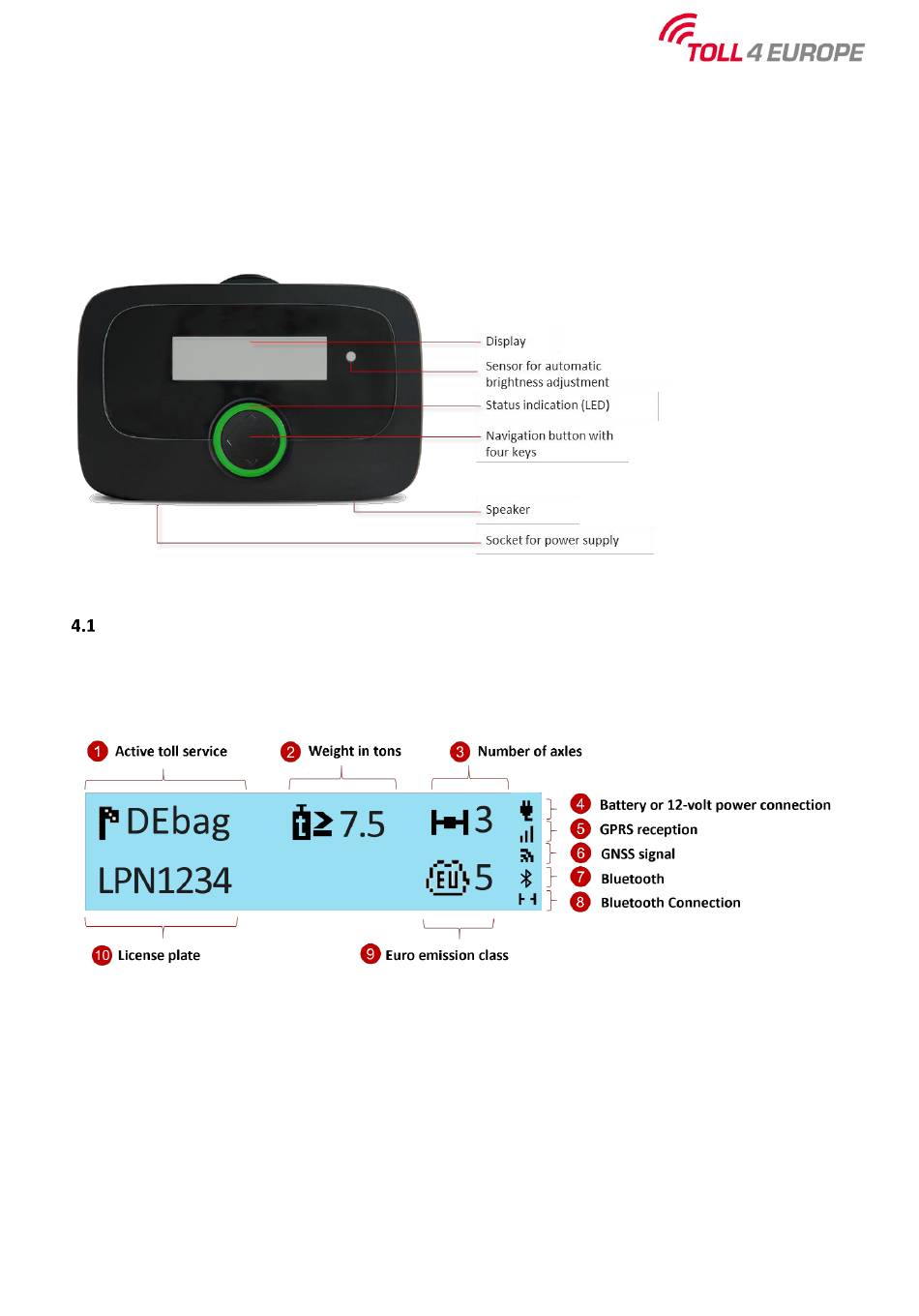

Figure 9: OBU
Start Display
The Start Display is shown when the vehicle is located within an area or country with an activated toll service.
For example, when the vehicle is within Germany and the German toll service (short "DEbag") is activated, then
the following Start Display is visible:
Figure 10: Start Display of an OBU driving in Germany
When you drive in an area/country where the OBU is activated, then you can always see the active toll service
(1) and your license plate (10) on the display. Weight (2)*, number of axles (3) and Euro emission class (9) are
shown if this information is used in the active toll service, mainly applies
•
The weight is shown in Germany, Belgium, Switzerland and Poland only.
•
Number of axles is the sum of tractor and trailer axles, not shown in Belgium.
Symbols for the type of power connection (4), the GPRS reception level (5), and the GNSS signal (6) are always
visible. In case it has been activated, the Bluetooth symbol (7) is displayed. An active Bluetooth connection be-
tween OBU and a mobile device is indicated in the lower right corner of the display (8).
