3.5 Connecting Cables
(1) Select or make an Ethernet cable suitable for the distance between the bridge and the power source
equipment. (The bridge supports Cat5e or higher cables up to 100 meters (328.08 ft) for PoE power supply.)
(2) Connect one end of the Ethernet cable to the PoE port of the 1000 Mbps passive PoE injector, and the other
end to the LAN1/PoE port on the bridge. Connect the LAN port of the 1000 Mbps passive PoE injector to a
server or IP camera using another Ethernet cable. Connect the 24 V/0.6 A DC power adapter to the DC power
connector of the PoE injector for power supply. Alternatively, connect a 12 V DC solar panel to the DC
connector of the bridge for power supply. Then, connect a LAN port on the bridge to a server or IP camera
using an Ethernet cable.

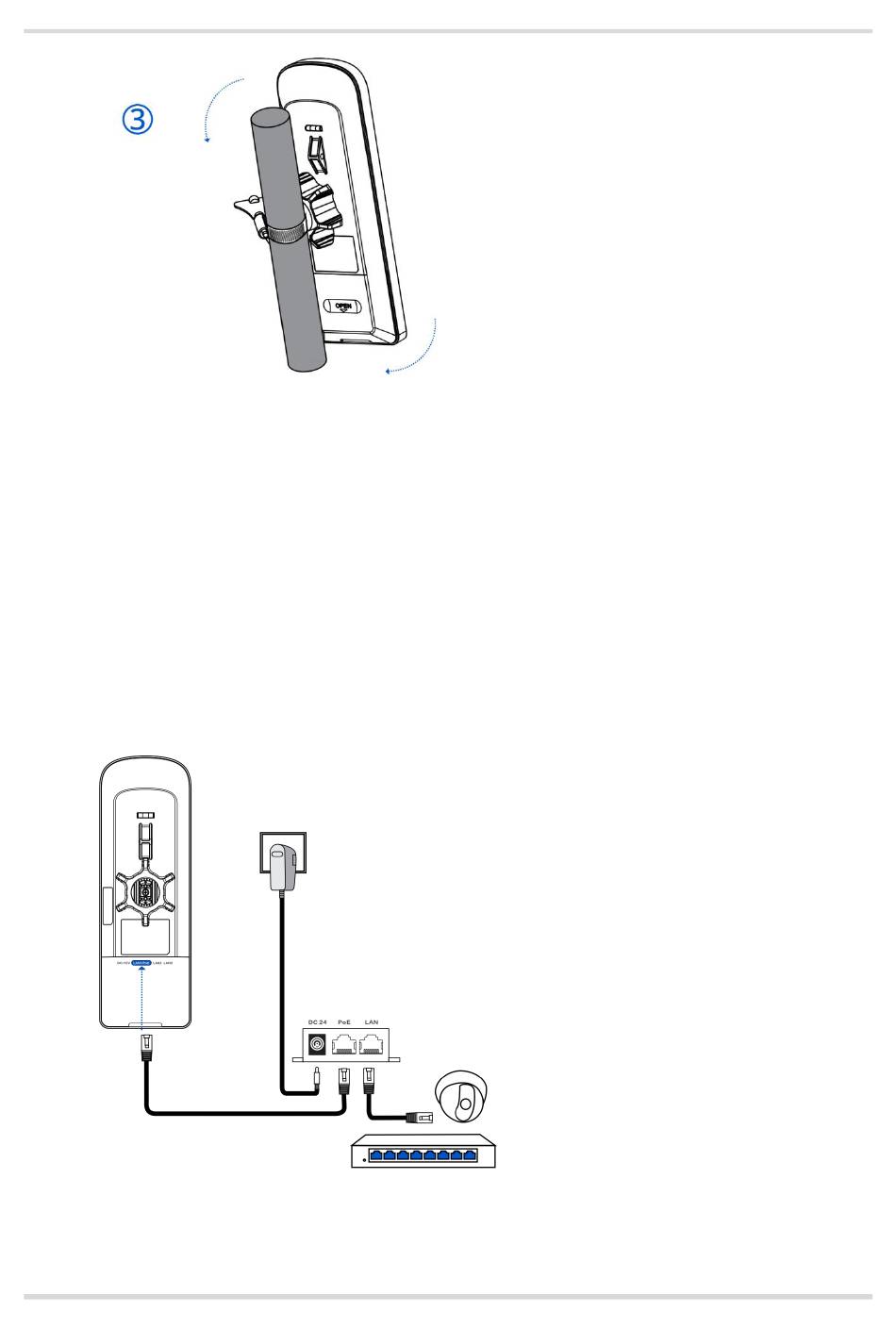

Figure 3-1 Connecting the Ethernet Cable to the Passive PoE Injector
