- Page 1 Reyee Home Wi-Fi Series Reyee Mesh Solution in Home Scenario Document Version: V1.0 Date: 2024-08-13 Copyright © 2024 Ruijie Networks...
- Page 2 Ruijie Networks reserves the right to modify the content of the document without any notice or prompt. This manual is designed merely as a user guide. Ruijie Networks has tried its best to ensure the accuracy and reliability of the content when compiling this manual, but it does not guarantee that the content of the manual is completely free of errors or omissions, and all the information in this manual does not constitute any explicit or implicit warranties.
- Page 3 Preface Intended Audience This document is intended for: Network engineers Technical support and servicing engineers Network administrators Technical Support The official website of Ruijie Reyee: https://www.ruijienetworks.com/products/reyee https://reyee.ruijie.com/en-global/support Technical Support Website: Case Portal: https://caseportal.ruijienetworks.com Community: https://community.ruijienetworks.com...
- Page 4 Note An alert that contains additional or supplementary information that if not understood or followed will not lead to serious consequences. Specification An alert that contains a description of product or version support. Instruction This manual is used to guide users to understand the product, install the product, and complete the configuration.
- Page 5 Contents Preface ..............................I 1 . Introduction ............................2 1.1 Benefits of Reyee Mesh in Home Scenario ................2 1.2 Limitations of Mesh Scenario..................... 2 1.3 Typical Topology of Reyee Mesh in Home Scenario ..............3 1.4 Products of Reyee Mesh in Home Scenario ................3 2 Installation ............................
- Page 6 Cookbook . Introduction Introduction Reyee Mesh is an innovative feature that connects multiple compatible Reyee home routers to create a whole- home Wi-Fi network. It offers a flexible and scalable solution that enables you to mix different models as needed for extended coverage or additional features.

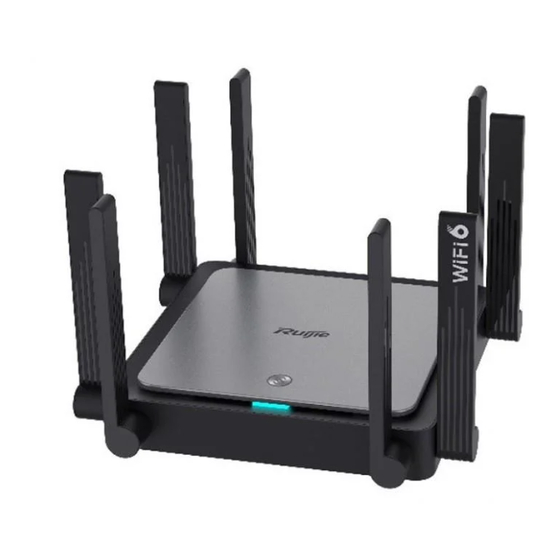

- Page 7 Cookbook . Introduction Typical Topology of Reyee Mesh in Home Scenario Products of Reyee Mesh in Home Scenario Reyee Mesh is supported on all Reyee EW series routers.
- Page 8 (3) ESD Protection Requirements (4) Anti-interference (5) Checking the Mounting Workbench For more details, see Ruijie Reyee RG-EW3000GX PRO Wi-Fi Router Installation Guide. Basic Configuration Quick Start (1) Connect the primary router to a power source, and then connect the LAN port of the modem to the WAN port...
- Page 9 Cookbook Basic Configuration (2) After the system status LED turns solid on, connect your PC or phone to the SSID (@Ruijie-sXXXX). You will be automatically redirected to the configuration page.
- Page 10 Cookbook Basic Configuration (Note: If the configuration page does not appear, enter 192.168.110.1 in the browser to access the web interface and proceed with the configuration as prompted.) (3) Configure the Internet connection type as confirmed by your local ISP. You can choose from DHCP, PPPoE, Static IP, or L2TP for Internet connection.
- Page 11 Cookbook Basic Configuration (4) On the Wi-Fi Settings page, set the SSID and password for the general Wi-Fi network and Game Wi-Fi network.
- Page 12 Cookbook Basic Configuration (5) Enable IoT Wi-Fi to ensure reliable connectivity for your IoT devices. One-touch Reyee Mesh (1) Place the secondary routers 2 meters (6.56 ft.) away from the primary router and power them on. Wait a few minutes until the system status LEDs on the secondary routers change from blinking green to solid red, indicating that the routers have finished starting up.
- Page 13 Cookbook Basic Configuration (3) Place the secondary routers in areas where the Wi-Fi signal strength needs to be improved and then power them on. No further configuration is needed after power-on. Once the system status LED turns solid green, you can connect to the SSID broadcast by the router for Internet access.
- Page 14 Cookbook Advanced Configuration Advanced Configuration 4.1 Parental Control To help children develop healthy Internet habits, prevent Internet addiction, and safeguard their online safety, consider setting time limits for their online activities. Follow the following steps for phone view (For PC view, choose Clients >...
- Page 15 Cookbook Advanced Configuration (2) Tap Tap here to set to set the Internet block periods. During these periods, the selected client cannot access the Internet. You can select specific days of the week or customize the block periods. Use One-click Block to temporarily restrict Internet access for the client.
- Page 16 Cookbook Advanced Configuration Tap Allowed to remove all Internet access restrictions imposed on the client for the current day. This change is effective only for today. The restrictions will resume from tomorrow onward.
- Page 17 Cookbook Advanced Configuration IPTV IPTV is an Internet TV service provided by your ISP. This feature is supported only when the device operates in router mode (as the primary router on a mesh network). Before configuring IPTV, verify if the IPTV service is configured.
- Page 18 Cookbook Advanced Configuration (1) VLAN IPTV Toggle on IPTV, and select the LAN port connected to the IPTV box. Toggle on VLAN, and enter the VLAN ID provided by your ISP for IPTV. Then, ensure the IPTV box is properly connected to the LAN port. Connect the IPTV box to LAN1, as shown in the following figure.
- Page 19 Cookbook Advanced Configuration (2) IGMP IPTV This configuration is specific to the Vietnamese ISP FPT. Once enabled, you can connect the IPTV box to any LAN port on the router. Port Mapping Port mapping links the IP address of a device on your LAN to an external network using a combination of a WAN IP address and port number.
- Page 20 Cookbook Advanced Configuration To create a port mapping policy, click Add on the configuration page. In the pop-up dialog box, enter the name, service type, protocol, external port/range, internal server IP address, and internal port/range. You can configure a maximum of 50 port mapping rules. To access the internal server's web service in this case, set the internal port to 80.
- Page 21 Scan the QR code on the label at the back of the router to change the Wi-Fi password via Ruijie Reyee App. If the fault persists, restore the router to factory settings. The management password will also be restored to...
- Page 22 Cookbook Troubleshooting the default Wi-Fi password. What should I do if I cannot log in to the router's web interface (192.168.110.1)? (1) Ensure that the PC's NIC is set to Obtain an IP address automatically. (2) Ensure that the PC is connected to one of LAN1/2/3 ports on the router, and that the port status LED is on. If the port status LED is not on, replace the Ethernet cable.
