- Page 1 Ruijie Reyee RG-EG105GW-X Router Hardware Installation and Reference Guide Document Version: V1.0 Date: 2023-02-03 Copyright © 2023 Ruijie Networks...
- Page 2 Due to product version upgrades or other reasons, the content of this document will be updated from time to time. Ruijie Networks reserves the right to modify the content of the document without any notice or prompt. This manual is for reference only. Ruijie Networks endeavors to ensure content accuracy and will not shoulder...
-
Page 3: Preface
Intended Audience This document is intended for: Network engineers Technical support and servicing engineers Network administrators Technical Support The official website of Ruijie Reyee: https://www.ruijienetworks.com/products/reyee Technical Support Website: https://www.ruijienetworks.com/support Case Portal: https://caseportal.ruijienetworks.com Community: https://community.ruijienetworks.com... - Page 4 2. Note This manual provides the device installation steps, hardware troubleshooting, module technical specifications, and specifications and usage guidelines for cables and connectors. It is intended for the users who have some experience in installing and maintaining network hardware. At the same time, it is assumed that the users are already familiar with the related terms and concepts.
-
Page 5: Table Of Contents
Contents Preface ............................. I 1 Product Overview ......................... 1 1.1 Package Contents .........................1 1.2 Product Appearance ......................2 1.2.1 Front Panel ........................2 1.2.2 Rear Panel .........................4 1.3 Technical Specifications ......................5 2 Preparing for Installation ....................... 8 2.1 Safety Precautions ........................8 2.2 General Safety Precautions ....................8 2.3 Handling Safety ........................8 2.4 Electric Safety ........................8 2.5 Installation Environment Requirements ..................9... - Page 6 3.3.1 Connecting the Ethernet Cables ................12 3.3.2 Connecting the Power Cord ..................12 3.4 Powering on the Router ....................... 13 3.4.1 Checklist before Power-on ..................13 3.4.2 Powering on the Router.................... 13 3.4.3 Checklist after Power-on ..................13 3.5 Configuring the Router......................13 4 Troubleshooting ..........................
-
Page 7: Product Overview

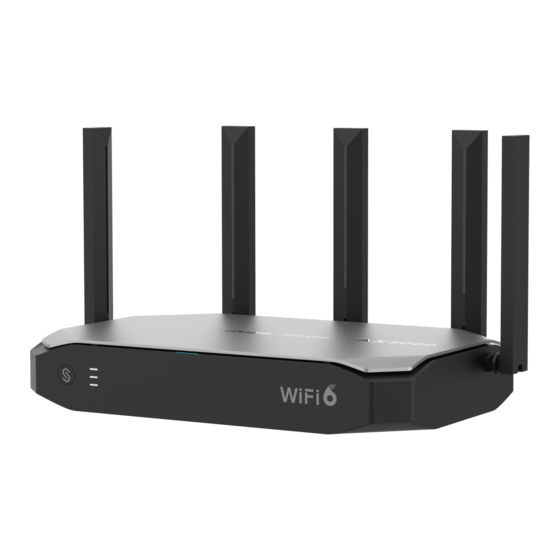

Hardware Installation and Reference Guide Product Overview Product Overview The RG-EG105GW-X is a high-performance enterprise-level wireless router designed for small business offices, small- and medium-sized stores, food and beverage industry, etc. The brushed aluminum top cover of the metal housing not only provides exquisite texture, but also shields external interference, thus improving the signal transmission quality and stability of the device. -
Page 8: Product Appearance
Hardware Installation and Reference Guide Product Overview Product Appearance 1.2.1 Front Panel Figure 1-1 Front Panel of a RG-EG105GW-X Router Note The CMIIT ID is printed on the product nameplate. Table 1-2 Front Panel Specifications Item Status Description Mesh Button Press for less than 2 seconds Perform Mesh pairing. - Page 9 Hardware Installation and Reference Guide Product Overview Item Status Description 1. The Mesh signal strength is low. One bar on 2. The repeated Wi-Fi signal strength is low. Fast flashing (at 8 Hz) The router is starting up. Slow flashing (at 0.5 Hz) The network is unreachable.
-
Page 10: Rear Panel
Hardware Installation and Reference Guide Product Overview 1.2.2 Rear Panel Figure 1-2 Rear Panel of a RG-EG105GW-X Router Table 1-3 Rear Panel Specifications Item Description Power Plug Connect the AC power cord to the power plug. Nameplate Nameplate on the bottom of the device 1. -
Page 11: Technical Specifications
Hardware Installation and Reference Guide Product Overview Item Description WAN0 Port 10/100/1000Base-T Ethernet port Table 1-4 Status Description Flashing The port has made a successful link and is sending/receiving traffic. The port has made a successful link and is not sending/receiving WAN0 Port LED Solid on (Green) - Page 12 Hardware Installation and Reference Guide Product Overview Standard & Protocol 802.11ax, 802.11ac wave2/wave1 and 802.11a/b/g/n Operating Radio 802.11b/g/n/ax: 2.4 GHz to 2.4835 GHz 802.11a/n/ac/ax: 5.1 GHz: 5.150 GHz to 5.350 GHz, 5.8 GHz: 5.725 GHz to 5.850 GHz Note: The operating band varies in different countries. Antenna External antenna (2.4 GHz: 5 dBi, 5 GHz: 5 dBi) Max Data Rate...
- Page 13 Hardware Installation and Reference Guide Product Overview Thailand： 2400MHz~2483.5MHz：≤ 20dBm 5150MHz~5350MHz：≤ 23dBm 5470MHz~5725MHz：≤ 25dBm 5725MHz~5850MHz：≤ 30dBm Power Adjustment Configurable in increments of 1 dBm Dimensions (W × D × H) 283 mm × 172 mm × 46 mm (11.14 in. × 6.77 in. × 1.81 in.) Note: The value (46 mm/1.81 in.) only indicates the height of the main unit, excluding that of the antenna.
-
Page 14: Preparing For Installation
Hardware Installation and Reference Guide Preparing for Installation Preparing for Installation Safety Precautions Note To avoid personal injury and device damage, carefully read the safety precautions before you install the device. The following safety precautions may not cover all possible dangers. General Safety Precautions ... -
Page 15: Installation Environment Requirements
Hardware Installation and Reference Guide Preparing for Installation Warning Improper or incorrect electric operations may cause a fire, electric shock, and other accidents, and lead to severe and fatal personal injury and device damage. Direct or indirect contact with high voltage or mains power supply through wet objects may cause fatal dangers. -
Page 16: Unpacking The Router
Hardware Installation and Reference Guide Preparing for Installation Antistatic gloves, wire stripper, crimping pliers, crystal connector crimping pliers, Special Tools and wire cutter Meter Multimeter, and bit error rate tester (BERT) Note The router is delivered without a tool kit. The tool kit is customer-supplied. Unpacking the Router Table 2-2 Package Contents... -
Page 17: Installing The Router
Hardware Installation and Reference Guide Installing the Router Installing the Router The RG-EG105GW-X router must be installed indoors. Installation Procedure To avoid damage to the router, please follow the steps for installation. Prepare for installation Read precautions Install the device Connect the power cord Connect the cables Bundle the cables... -
Page 18: Connecting The Cables
Connect the AP to the LAN port on the router with an Ethernet cable. After power-on, the router will broadcast the SSID @Ruijie-XXXXX. Connect the PC to the LAN port of the router with an Ethernet cable. Enable Automatic (DHCP) on the PC to obtain an IP address automatically. -
Page 19: Powering On The Router
Web management system. Configuring the Router To better use the router, please configure the device on the Web management system subject to specific needs. For details, see Ruijie Reyee RG-EG-W Series Routers Web-based Configuration Guide, Release ReyeeOS 1.95. -
Page 20: Troubleshooting
Hardware Installation and Reference Guide Troubleshooting Troubleshooting Power Troubleshooting You can check whether the power supply is faulty by observing the system (SYS) status LED on the router. For the LED status, see Chapter 1 Product Overview. If a fault occurs, check the following items: ... -
Page 21: Appendix
Hardware Installation and Reference Guide Appendix Appendix Connectors and Media 2500BASE-T/1000BASE-T/100BASE-TX/10BASE-T The 2500BASE-T/1000BASE-T/100BASE-TX/10BASE-T is a 10/100/1000/2500 Mbps self-adaptive port that supports auto MDI/MDIX Crossover. Compliant with IEEE 802.3bz, 2500BASE-T requires Category 5e or better 100-ohm UTP or STP (STP is recommended) with a maximum distance of 100 meters (328 feet). -
Page 22: Cabling
Hardware Installation and Reference Guide Appendix Socket Plug Output Transmit Data- Input Receive Data- 4, 5, 7, 8 Not Used Not Used The following figure shows feasible connections of the straight-through and crossover twisted pairs for 100BASE-TX/10BASE-T port. Figure 5-2 100BASE-TX/10BASE-T Twisted Pair Connection Cabling 5.2.1... - Page 23 Hardware Installation and Reference Guide Appendix Figure 5-3 Binding Cables Cables of different types (such as power cords, signal cables, and ground cables) should be separated in cabling and bundling. Mixed bundling is not allowed. When they are close to each other, it is recommended to adopt crossover cabling.
- Page 24 Hardware Installation and Reference Guide Appendix Figure 5-5 Binding Cables Cables not to be assembled or remaining parts of cables should be folded and placed in a proper position of the cabinet or cable trough. The proper position refers to a position that does not affect device running or damage the router or cable.
- Page 25 Hardware Installation and Reference Guide Appendix Table 5-2 Cable Fastening Components Components Flat washer Spring washer Flat washer Hard power cords should be fastened in the terminal connection area to prevent stress on terminal connection and cable. Do not use self-tapping screws to fasten terminals. ...
