Installation Guide
1.3.2 Ports, Buttons and LEDs

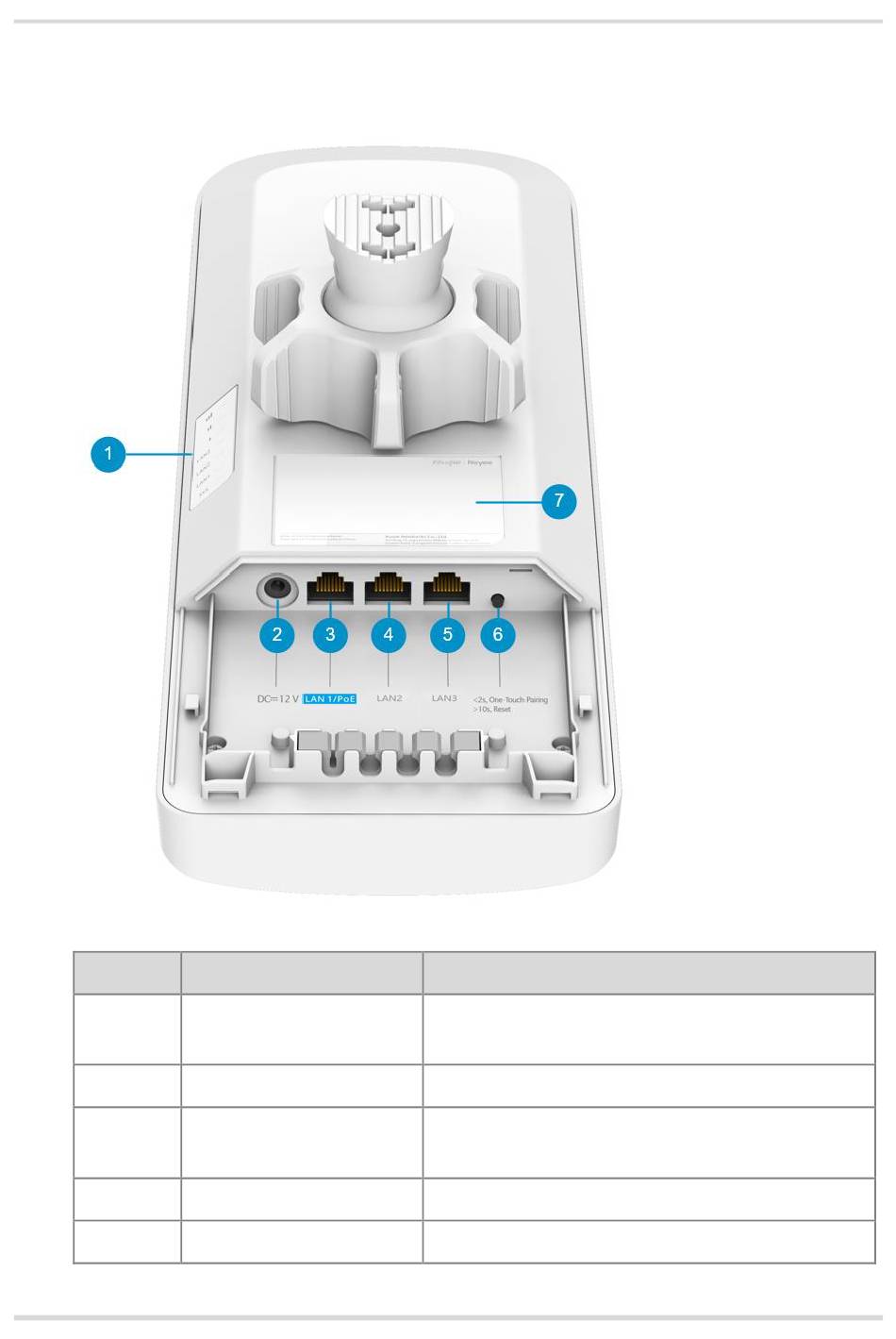

Figure 1-2 Ports, Buttons and LEDs of the RG-EST450G Wireless Bridge
Table 1-2 Ports, Buttons and LEDs of the RG-EST450G Wireless Bridge
Mark
1
2
3
4
5
Item
Status LEDs
12 V DC connector
LAN1/PoE Port
LAN2 Port
LAN3 Port
Description
7 status LEDs, including 1 x system LED, 3 x port LEDs and
3 x signal LEDs
Support 12 V/1.2 A DC power supply
10/100/1000BASE-T Ethernet port, support 802.3af/at PoE
or 24V⎓0.6A passive PoE
10/100/1000BASE-T Ethernet port
10/100/1000BASE-T Ethernet port
