Technical Specifications
Δ
MODEL: BT83
\
DIMENSION: 318 307 285mm
\
WEIGHT: 15kg
\
VOLTAGE: AC 100-240V, 50/60Hz
\
WORK POWER: 500W
\
HC8200 CONSUMPTION: 50g/min
\
EFFECT HEIGHT ADJUSTBLE: YES, height level gear 1-3
\
EFFECT ANGLE ADJUSTBLE: 0°~ 360°
\
INTERFACE: 3-pin and 5-pin XLR, POWER IN/OUT
\
CONTROL: 6 DMX channels
\
WORK TEMP.: -20 C~40 C
\
CONSUMABLE AND EFFECT HEIGHT: HC8200 LARGE, vertical up 4m, vertical down 6-7m, 360°
\
rotate with radius of 2.5-3m.

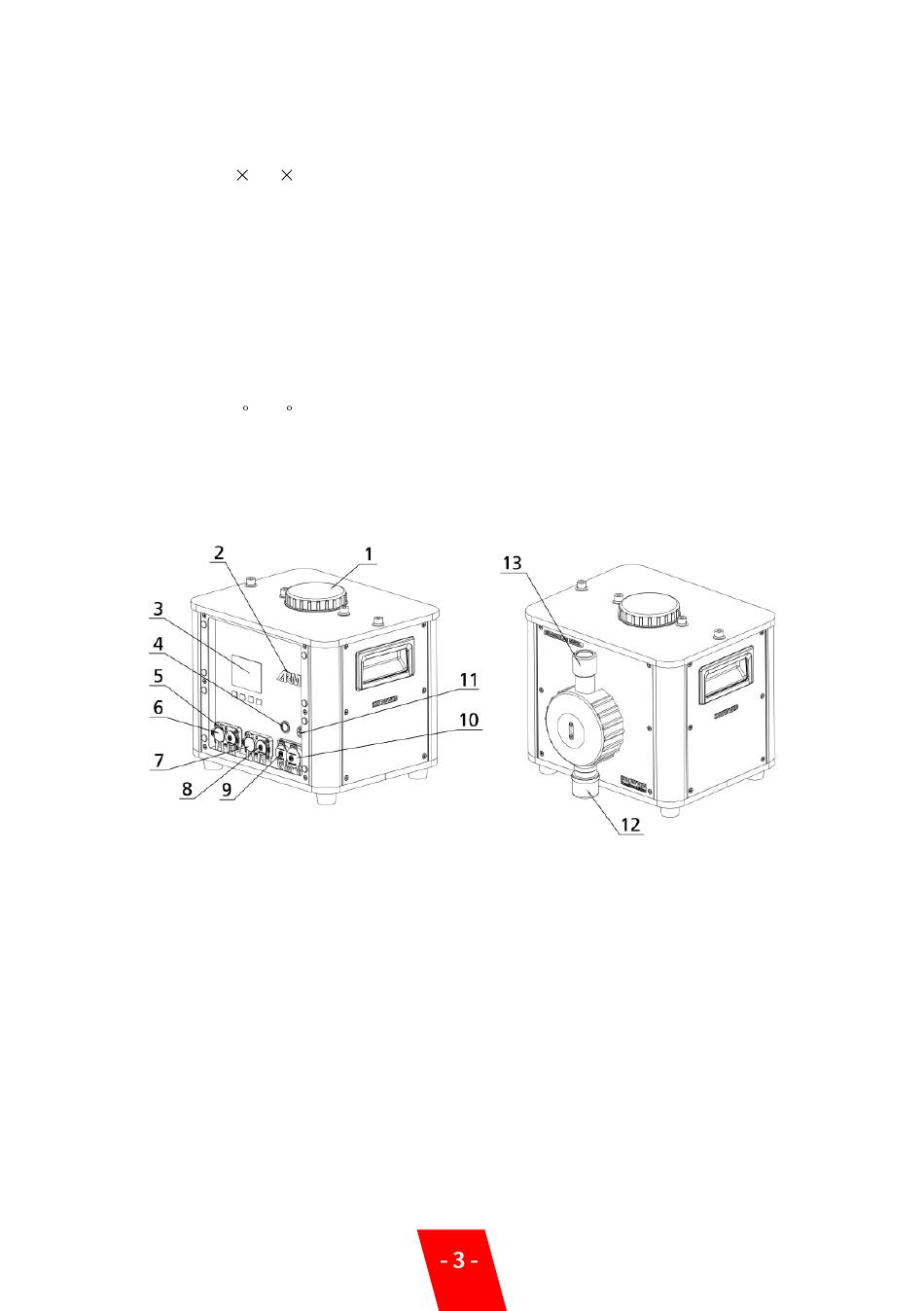

Structure of SPARKULAR
Δ
1. Feeding Hopper Lid
2. ARM alarming light
3. Display Screen
4. Power Switch ( flash means machine is heating up, long on means temp. reached setting
temp.)
5. 5-PIN DMX IN
6. 5-PIN DMX OUT
7. 3-PIN DMX OUT
8. 3-PIN DMX IN
9. Power IN
10. Power OUT
11. Fuse
12. Blower
13. Output Nozzle
