11.2 Dimensional drawing
12 Annex
12.1 Conformities and certificates
8022198.1P2T/2024-11-25 | SICK
Subject to change without notice
37.7
8
(0.2)
(0.31)
1 2
3

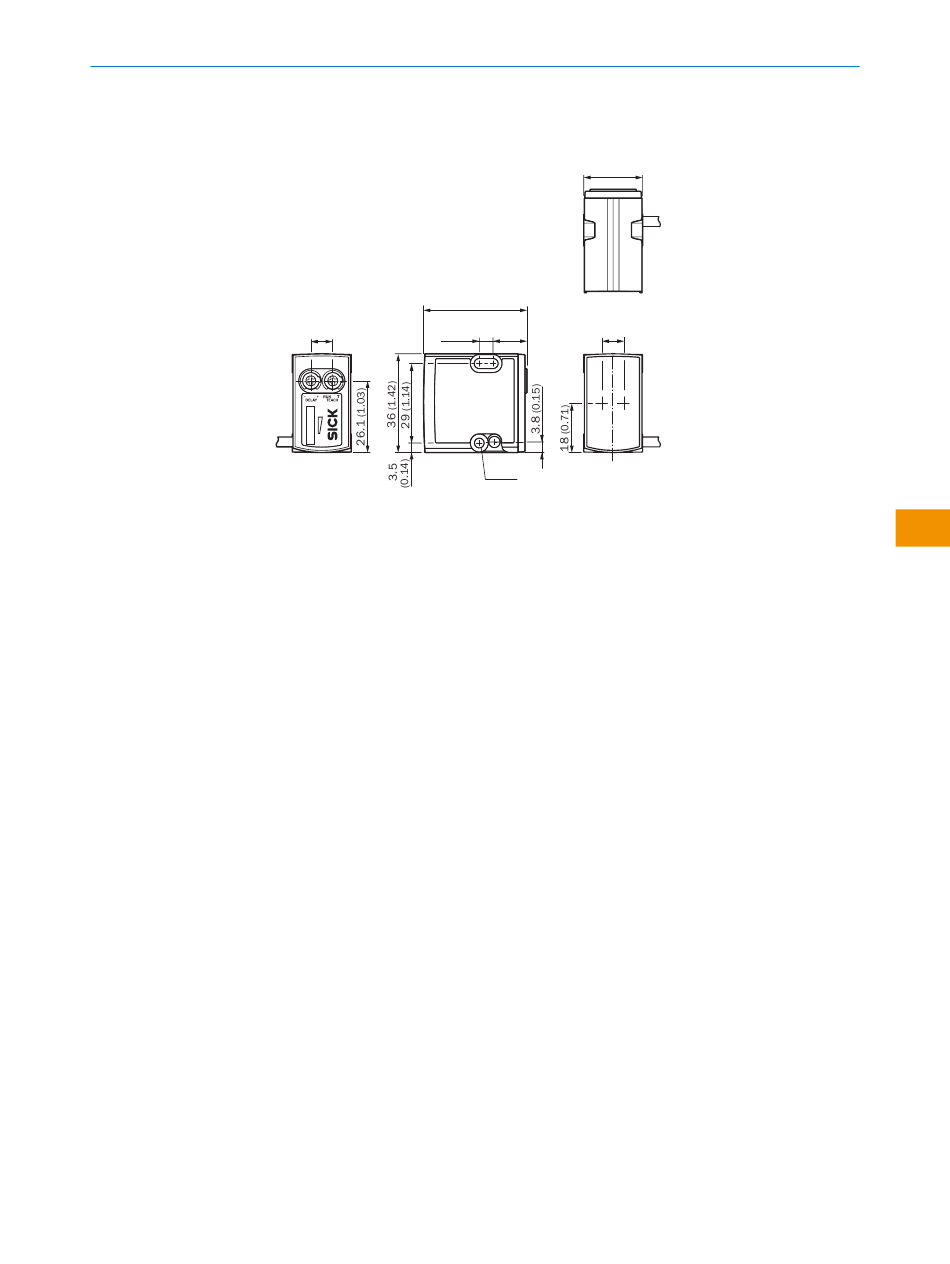

Figure 12: Dimensional drawing
Potentiometer / LED Indicators (green)
1
Potentiometer / LED Indicators (orange)
2
Signal strength light bar during the teach process
3
CTA during run mode
Mounting hole M3 (Ø 3.1 mm)
4
Mounting hole M3 (Ø 3.1 mm)
5
Optical axis
6
Optical axis
7
Optical axis
8
You can obtain declarations of conformity, certificates, and the current operating
instructions for the product at www.sick.com. To do so, enter the product part number
in the search field (part number: see the entry in the "P/N" or "Ident. no." field on the
type label).
21.5
(0.85)
(1.48)
5 12.4
8
(0.31)
(0.49)
8
7
4
6
5 Ø 3.5
(0.14)
