8.6 Selecting the conduit entry point and drilling

NOTE:
• All field wiring connections must be done on the wall-side unit only.
• Each battery unit has four conduit entry points in the wiring compartment – one on each side and two on the rear.
• Drilling is required if conduit entry is from the left and/or right sides. Conduit sizes up to 1.25" are supported.
• The rear side has predrilled 1.25" holes with conduit plugs inserted.
• The front side has predrilled 1" holes with conduit plugs inserted.
• Removal of wiring cover before drilling is essential to avoid damaging components.
• Clean any debris inside the wiring compartment after drilling.

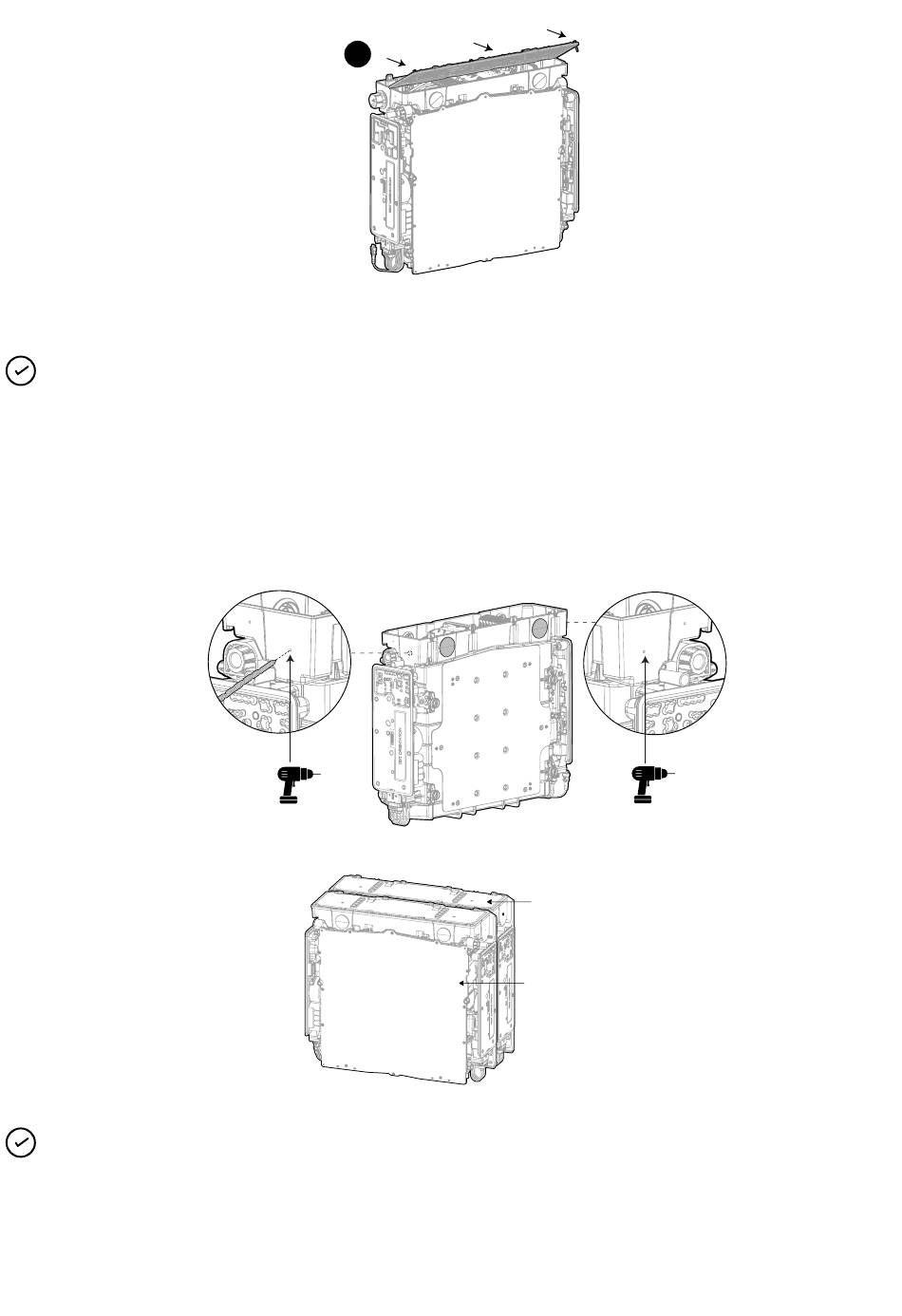

1. For side entry, drill the wiring compartment at the marked indentation on wall-side unit only.
NOTE: The wall-side and user-side units are identical; it is the placement of the unit that determines whether it is a wall-side or
user-side unit.
3
EN-17
Wall-side unit
User-side unit
