Q U I C K I N S T A L L G U I D E
Installing IQ Battery 5P on Pedestal Mount
To install the Enphase IQ Battery 5P on the floor using Pedestal Mount, read and follow all warnings and instructions in this guide. Safety warnings are
listed at the end of this guide. These instructions are not meant to be a complete explanation of how to design and install an energy storage system. All
installations must comply with national and local electrical codes and standards. Only Enphase certified installers shall install, troubleshoot, or replace
the Pedestal Mount.
A. PREPARATION

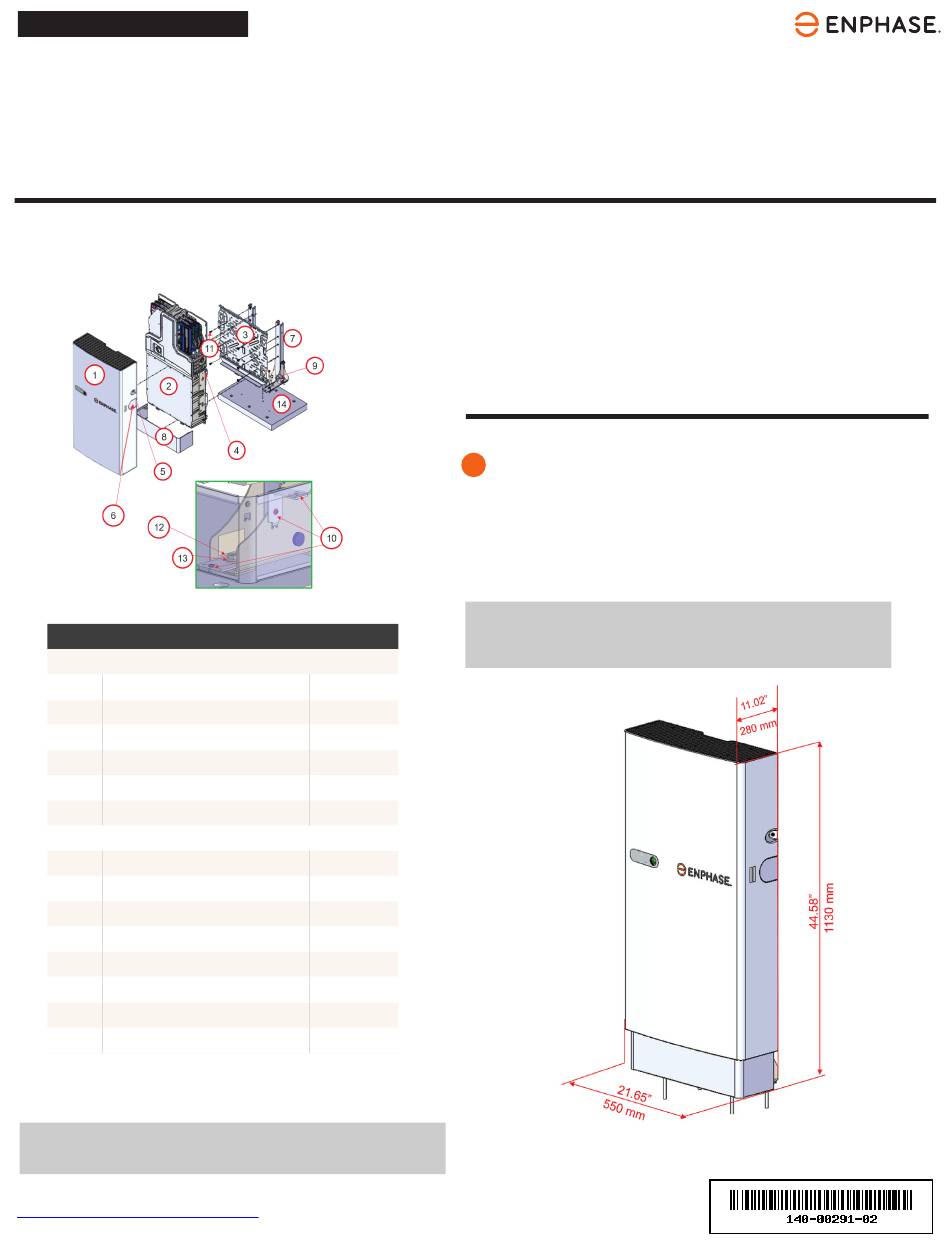

IQ Battery 5P unit(s) can be installed on the floor using the Pedestal Mount. The
components required for installation are shown in the following image.
LA BEL DESC RIPTION
Items in IQ Battery 5P packaging
1 IQ Battery 5P cover
2 IQ Battery 5P unit
3 Wall-mount bracket
4 Seismic screw
5 Battery cover grounding screws
6 Conduit cover
Items in IQ Battery 5P Pedestal Mount packaging
7 Pedestal bracket assembly
8 Pedestal cover
9 L bracket
10 Screw, M4*10 mm Lg
11 Screw, M8*18 mm Lg
12 M10 anchor bolts
13 M10 flat washer
14 Concrete floor mount
* Only four M10 flat washers are required for the installation. The remaining
four washers can be used to level uneven surfaces.
✓
NOTE: The top shield provided with IQ Battery 5P is not required
for installing the battery on a pedestal mount. Installers can
dispose it as per local guidelines.
© 2023 Enphase Energy. All rights reserved. Enphase, the e and CC logos, IQ, and certain other marks listed at
https:/ /enphase.com/trademark-usage-guidelines
Data subject to change. Rev02/05-18-2023
(Model: B05-PM-0550-O)
QUAN TITY
1
1
1
2
2
2
2
1
2
6
8
4
8*
1
are trademarks of Enphase Energy, Inc. in the US and other countries.
Required tools:
• #4 Phillips bit
• #2 Phillips bit
• X20 bit
• SW15 drive
• A 10 mm drill bit
• Hammer drill
• Torque driver 1 N m to 60 N m or equivalent
B. INSTALLATION
1
Planning and site preparations
The Pedestal Mount can be used to mount one IQ Battery 5P on a level
floor. This section provides guidelines on how to choose and prepare a floor
surface, and to determine the amount of space needed to meet spacing
requirements when installing IQ Battery 5P units on a Pedestal Mount. Follow
these instructions in addition to the site preparation instructions mentioned in
the IQ Battery 5P Quick Install Guide.
✓
NOTE: In locations such as garages, local requirements may
exist to additionally prevent damage to the equipment from
vehicles. Make sure to check local building codes for require-
ments.
Dimensions of an IQ Battery 5P mounted on a Pedestal Mount
