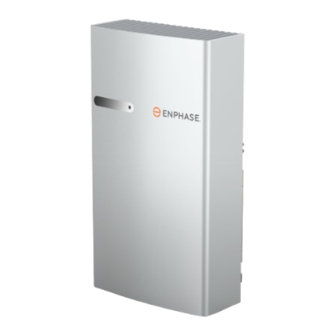

enphase ENCHARGE-3T-1P-NA Quick Install Manual
Iq battery system
Hide thumbs
Also See for ENCHARGE-3T-1P-NA:
- Quick install manual (9 pages) ,
- Technical brief (19 pages) ,
- Quick install manual (9 pages)
Table of Contents
Advertisement
Quick Links
Q U I C K I N S T A L L G U I D E
Install the Enphase IQ Battery system
To install the Enphase IQ Battery 3T or IQ Battery 10T system and the Enphase wall-mount bracket, read and follow all warnings and instructions in this
guide. Safety warnings are listed at the end of this guide. These instructions are not meant to be a complete explanation of how to design and install an energy
storage system. All installations must comply with national and local electrical codes and standards. Only qualified electricians shall install, troubleshoot, or
replace the IQ Battery 3T or IQ Battery 10T.
The IQ Battery system includes the Enphase IQ Batteries with integrated Enphase IQ Microinverters. The Enphase IQ Gateway measures PV production and
home energy consumption. The IQ Battery system senses when it is optimal to charge or discharge the battery so that energy is stored when it is abundant
and used when scarce. IQ Battery systems are capable of providing backup power when an Enphase IQ System Controller is installed at the site.
Five unique installation scenarios are shown:
1. Whole home backup with IQ System
Controller as service entrance and
PV combiner connected to IQ System
Controller. This is the preferred
configuration for back up of the entire
main load panel. This configuration
supports up to an 80 A breaker for the
PV circuit and an 80 A breaker for battery
storage.
NOTE:
1. For the M215/M250 connection to Enphase
Energy System, refer to the
tech brief.
2. M Series Microinverters require IQ Gateway.
2. Whole home backup with IQ System
Controller as service entrance and PV
combiner connected to main load panel.
This is the preferred configuration when
you back up the entire main load panel
and the size of the PV combiner circuit is
more than 80 A. In this configuration, the
PV combiner circuit connection space
in IQ System Controller is left vacant.
When existing PV combiner circuits are
connected to the main load panel, and
you want to add battery storage to the
system, you can keep the PV combiner
connected to the main load panel and
connect only the battery storage to IQ
System Controller.
3. Partial home backup with main load
panel as service entrance and PV
combiner connected to IQ System
Controller. When the PV circuit breaker
size is less than 80 A, this is the preferred
configuration for partial home backup
with a subpanel.
(ENCHARGE-3T-1P-NA and ENCHARGE-10T-1P-NA)
-
l
-
l
-
l
https://enphase.com/trademark-usage-guidelines
l
© 2023 Enphase Energy. All rights reserved. Enphase, the e and CC logos, IQ, and certain other marks listed at
are trademarks of Enphase Energy, Inc. in the US and other countries. Data subject to change.
(optional)
l
(optional)
l
(optional)
l
Rev 11/2023-12-20
1
Advertisement
Table of Contents
Related Manuals for enphase ENCHARGE-3T-1P-NA
Summary of Contents for enphase ENCHARGE-3T-1P-NA
- Page 1 Install the Enphase IQ Battery system To install the Enphase IQ Battery 3T or IQ Battery 10T system and the Enphase wall-mount bracket, read and follow all warnings and instructions in this guide. Safety warnings are listed at the end of this guide. These instructions are not meant to be a complete explanation of how to design and install an energy storage system.
- Page 2 IQ Battery(ies). The total weight for the IQ Battery 3T, including the IQ G ) Install the PV system and the IQ Combiner as directed by the Enphase Battery base unit, cover, and wall-mount bracket is 48.8 kg (107.6 lbs).
-
Page 3: Installation
Battery. F ) Consider the dimensions of the IQ Batteries, easy access, height, and length of cable when selecting the location. G ) Select a location where you can interconnect to the Enphase IQ System 2. Use multi-tap Controller. connectors in an ex-... - Page 4 Incorrect wiring methods Install the IQ Battery 3T (single-width) or IQ Battery 10T (triple-width) wall mount bracket 1. Do not splice wires on the IQ Terminal blocks Follow the instructions below for the bracket you are installing. Battery’s wiring WARNING! Risk of injury and equipment damage. Attach the wall mount terminals.
- Page 5 I ) To record the installation of each IQ Battery base unit, scan the serial F ) Place the bottom wall-mount bracket below the middle bracket aligning number label using Enphase Installer App and your mobile device. the holes and edges as shown in the follwoing image.
- Page 6 IQ Battery. Use the conduit openings provided to to be energized! Do connect the conduit and pass the wires through them. If an Enphase not close the circuit IQ System Controller is in line-of-sight, the breaker can service as a breaker or turn ON the disconnect.
- Page 7 WARNING: Complete the Enphase IQ System Controller and En- phase IQ Combiner installations before turning the DC switch(es) ON. Before pushing...
-
Page 8: Operation
This is normal. When power is restored, it automatically starts up again. C ) If you do not see IQ Battery information in Enphase Installer App, check that the IQ Gateway and the Internet connection are working. If the issue persists, contact Enphase Support at https://enphase.com/contact/support. -
Page 9: Safety Instructions
DANGER: Risk of fire. If the IQ Battery(ies) generate smoke, remove AC power from consumption CTs. The IQ Gateway is required for operation of the IQ Battery(ies). the Enphase System and turn the DC connect switch to the off position so that Earlier versions of the Enphase Gateway communications gateway are incompat- charging/discharging stops. -
Page 10: Revision History
July 2023 Updated product graphics. Previous releases. © 2023 Enphase Energy. All rights reserved. Enphase, the e and CC logos, IQ, and certain other marks listed at https://enphase.com/trademark-usage-guidelines are trademarks of Enphase Energy, Inc. in the US and other countries. Data subject to change.
