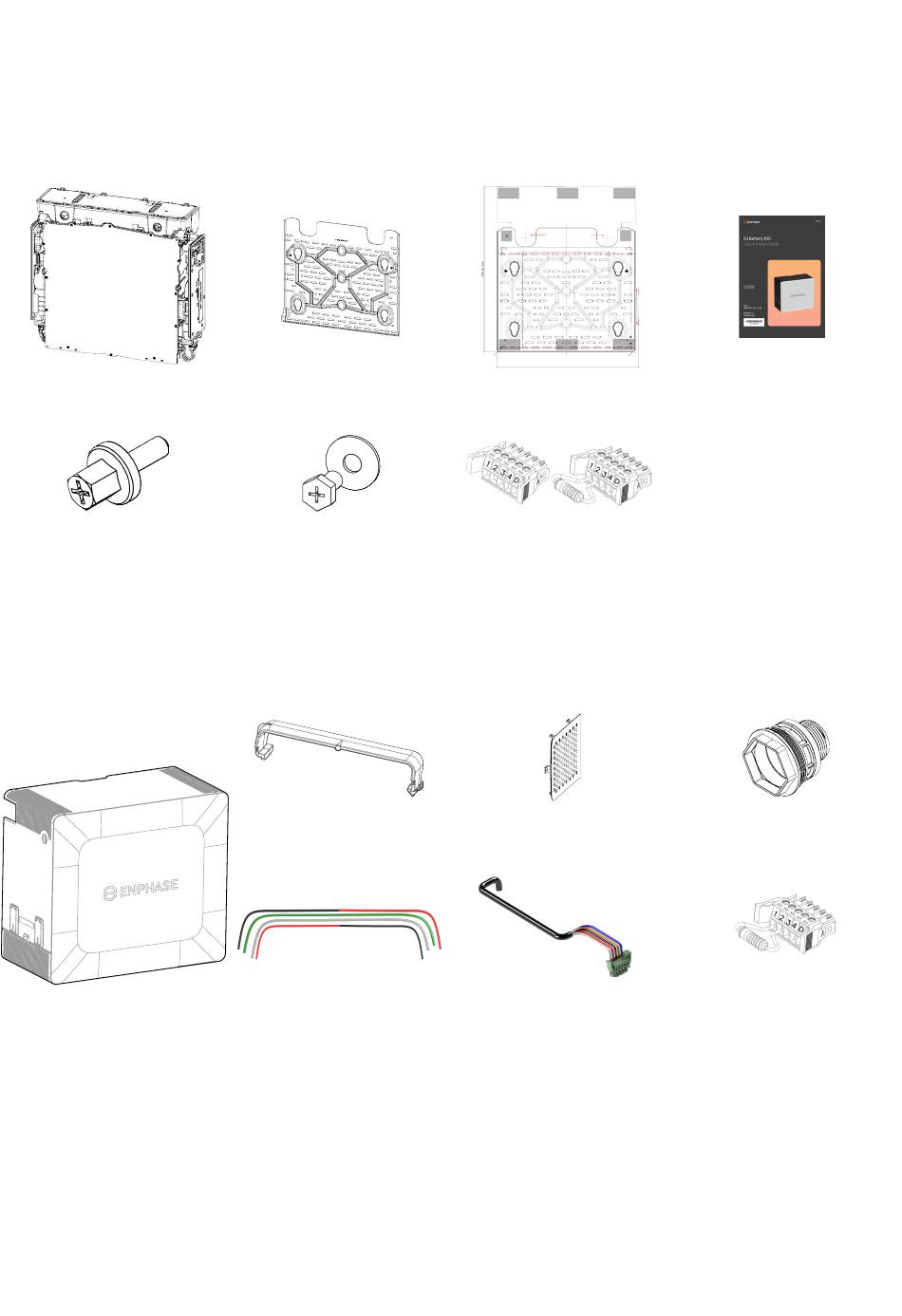

4. What's in the box

Each IQ Battery 10C (Order Code: IQBATTERY-10C-1P-NA) ships in three separate boxes.
• Two boxes – each containing a 5 kWh battery unit (B05-C01-US00-1-3)
• One box - containing the IQ Battery 10C cover kit (B10C‑NC‑0708‑O)

4.1 What's in each 5 kWh battery unit box (B05-C01-US00-1-3)

1 × 5 kWh battery unit
2 × Seismic screws
4.2 What's in cover kit box (B10C‑NC‑0708‑O)
1 × IQ Battery 10C cover
1 × Mounting bracket
6 × M8 hex screws with
washers for second mounting
bracket installation (only 6
required)
2 × Cable holder
Interconnect power cables (L1,
L2, N- 4 AWG, GND- 8 AWG)
NOTES FOR UNISTRUT MOUNTING:
• USE THIS TEMPLATE TO MARK THE LINES 'LINE1' AND 'LINE2' ON THE WALL.
• REMOVE THE TEMPLATE AND DRILL THE REQUIRED HOLES INTO THE WALL STUDS ALONG THE LINES 'LINE1' & 'LINE2' . THE HOLES HAVE TO BE DRILLED ON EACH OF THE WALL STUDS
ABOVE WHICH THE UNISTRUTS WOULD BE PLACED. MOUNT 2x UNISTRUTS ONE ALONG EACH LINE USING M10 SCREWS WITH WASHERS.
• HOLD THIS TEMPLATE OVER THE UNISTRUTS SUCH THAT THE LINES 'LINE1' & 'LINE2' ARE ALIGNED WITH THE CENTERLINES OF THE CORRESPONDING UNISTRUTS.
• TO MOUNT THE MOUNTING BRACKET, MARK AND POSITION AT LEAST 2x M8 CAGE NUTS IN EACH OF THE UNISTRUTS ALONG 'LINE1' AND 'LINE2' . POSITION THEM SUCH THAT YOU
CAN USE THE SLOTS NEAR TO THE EXTREME ENDS OF THE MOUNTING BRACKET AND THEY ARE APPROXIMATELY SYMMETRICAL WITH RESPECT TO THE CENTER LINE OF THE
MOUNTING BRACKET FOR SYMMETRICAL LOAD DISTRIBUTION OF THE UNIT.
• REFER QUICK INSTALL GUIDE (IQ BATTERYR4) FOR MORE DETAILS.
NOTES FOR MOUNTING WITHOUT UNISTRUTS:
•USE THIS TEMPLATE TO MARK THE LEVEL AND BORDERS OF THE MOUNTING BRACKET, AND TO MARK THE HOLES USED FOR MOUNTING IT
• REFER QUICK INSTALL GUIDE (IQ BATTERY-R4) FOR LOCATIONS OF THE HOLES
FOR REAR CABLE ENTRY, DRILL HERE. MAX 1-1/4"
CONDUIT
24 inch
16 inch
LINE 1
LINE 2
8x GRAY SHADED REGIONS MUST
HAVE THE ADHESIVE WITH LINER
BEHIND THEM 6x (50 x 100) &
2x (50x50) AS SHOWN 669.82 mm
1 × Drill template
Preinstalled control
connectors
2 × Conduit cover
Interconnect control cable
with one preinstalled control
connector
EN-11
LINE 1
LINE 2
Diecut line
Do not print
1 × Quick install guide
2 × Raceway adapter
Control connector with resistor
