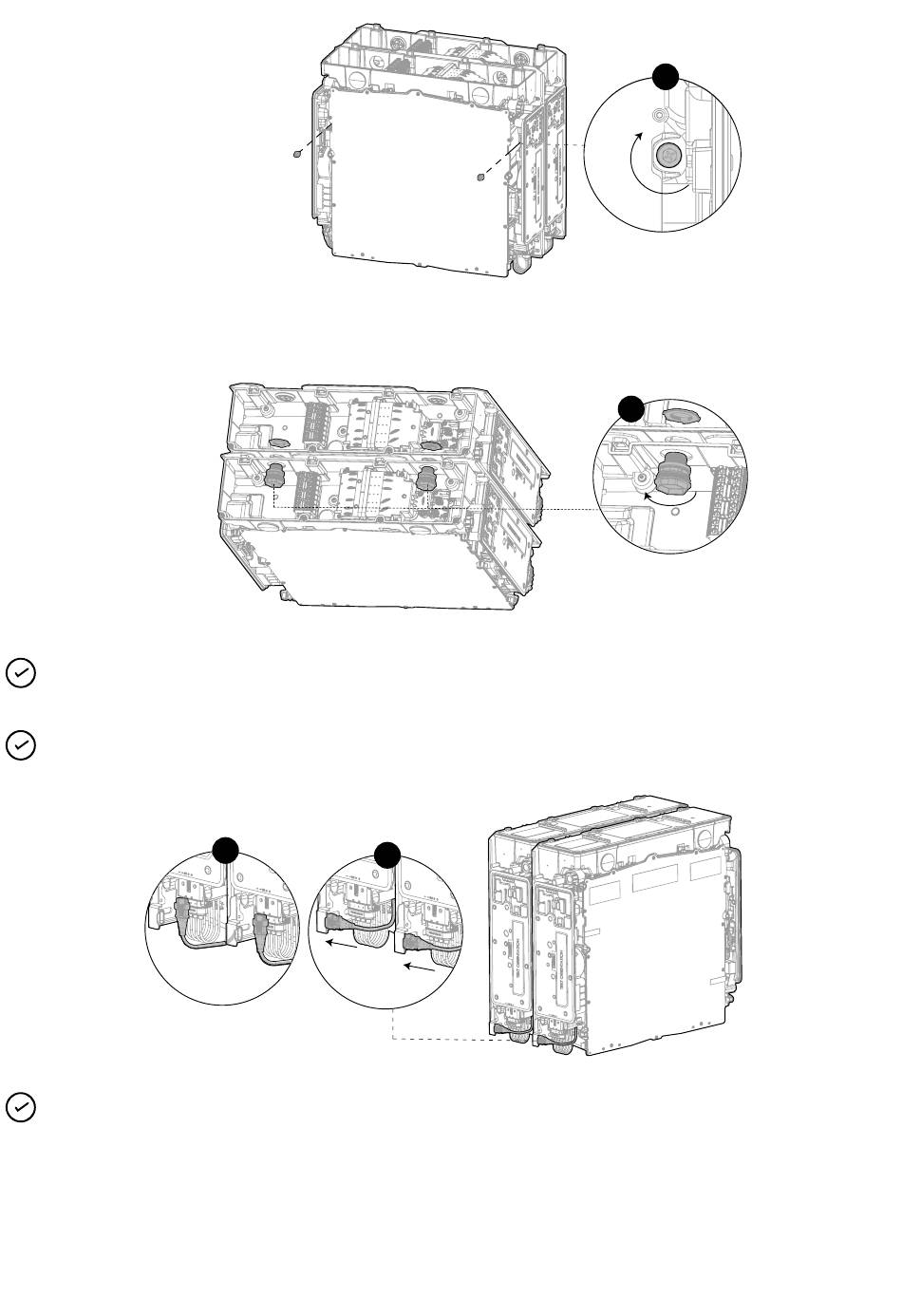

9. Install raceway adapters between the units by fastening locknuts as shown (torque to 53.1 in-lb or 6 N m).
NOTE: It is essential to install both raceway adapters for proper cable management and ingress protection.
10. Plug two control switch connectors into the holders to protect it and the cable from pinching during cover installation.
NOTE: Carefully cut the cable tie used for tying the control switch connector and the battery DC connector before plugging
the control switch connector into the holders.
NOTE:
•
To prevent the control switch connectors from getting pinched and damaged during ID cover installation, it is essential to
plug both connectors prior to installing the cover.
•
Ensure that all the connectors are latched properly.
10A
Unplugged
10B
Plugged
EN-21
8
9
