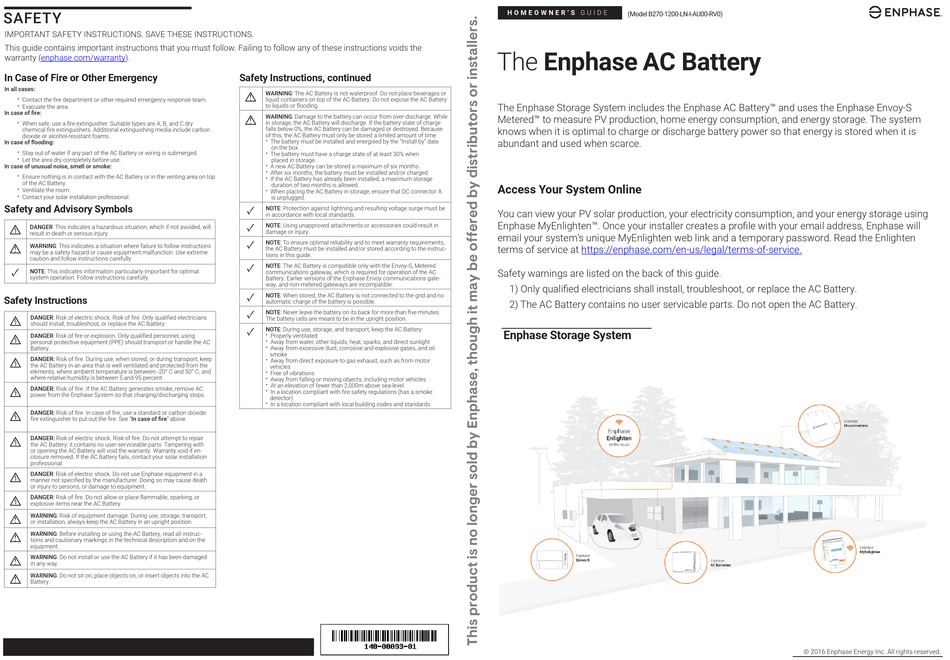

enphase B270-1200-LN-I-AU00-RV0 Homeowner's Manual

SAFETY
IMPORTANT SAFETY INSTRUCTIONS. SAVE THESE INSTRUCTIONS.
This guide contains important instructions that you must follow. Failing to follow any of these instructions voids the
warranty (enphase.com/warranty).

In Case of Fire or Other Emergency

In all cases:
• Contact the fire department or other required emergency response team.
• Evacuate the area.
In case of fire:
• When safe, use a fire extinguisher. Suitable types are A, B, and C dry
chemical fire extinguishers. Additional extinguishing media include carbon
dioxide or alcohol-resistant foams.
In case of flooding:
• Stay out of water if any part of the AC Battery or wiring is submerged.
• Let the area dry completely before use.
In case of unusual noise, smell or smoke:
• Ensure nothing is in contact with the AC Battery or in the venting area on top
of the AC Battery.
• Ventilate the room.
• Contact your solar installation professional.

Safety and Advisory Symbols

DANGER: This indicates a hazardous situation, which if not avoided, will
+
result in death or serious injury.
WARNING: This indicates a situation where failure to follow instructions
*
may be a safety hazard or cause equipment malfunction. Use extreme
caution and follow instructions carefully.
✓
NOTE: This indicates information particularly important for optimal
system operation. Follow instructions carefully.

Safety Instructions

DANGER: Risk of electric shock. Risk of fire. Only qualified electricians
+
should install, troubleshoot, or replace the AC Battery.
DANGER: Risk of fire or explosion. Only qualified personnel, using
+
personal protective equipment (PPE) should transport or handle the AC
Battery.
DANGER: Risk of fire. During use, when stored, or during transport, keep
+
the AC Battery in an area that is well ventilated and protected from the
elements, where ambient temperature is between -20° C and 50° C, and
where relative humidity is between 5 and 95 percent.
DANGER: Risk of fire. If the AC Battery generates smoke, remove AC
+
power from the Enphase System so that charging/discharging stops.
DANGER: Risk of fire. In case of fire, use a standard or carbon dioxide
+
fire extinguisher to put out the fire. See "In case of fire" above.
DANGER: Risk of electric shock. Risk of fire. Do not attempt to repair
+
the AC Battery; it contains no user-serviceable parts. Tampering with
or opening the AC Battery will void the warranty. Warranty void if en-
closure removed. If the AC Battery fails, contact your solar installation
professional.
DANGER: Risk of electric shock. Do not use Enphase equipment in a
+
manner not specified by the manufacturer. Doing so may cause death
or injury to persons, or damage to equipment.
DANGER: Risk of fire. Do not allow or place flammable, sparking, or
+
explosive items near the AC Battery.
WARNING: Risk of equipment damage. During use, storage, transport,
*
or installation, always keep the AC Battery in an upright position.
WARNING: Before installing or using the AC Battery, read all instruc-
*
tions and cautionary markings in the technical description and on the
equipment.
WARNING: Do not install or use the AC Battery if it has been damaged
*
in any way.
WARNING: Do not sit on, place objects on, or insert objects into the AC
*
Battery.
Safety Instructions, continued
WARNING: The AC Battery is not waterproof. Do not place beverages or
*
liquid containers on top of the AC Battery. Do not expose the AC Battery
to liquids or flooding.
WARNING: Damage to the battery can occur from over-discharge. While
*
in storage, the AC Battery will discharge. If the battery state of charge
falls below 0%, the AC Battery can be damaged or destroyed. Because
of this, the AC Battery must only be stored a limited amount of time.
• The battery must be installed and energised by the "Install by" date
on the box.
• The battery must have a charge state of at least 30% when
placed in storage.
• A new AC Battery can be stored a maximum of six months.
• After six months, the battery must be installed and/or charged.
• If the AC Battery has already been installed, a maximum storage
duration of two months is allowed.
• When placing the AC Battery in storage, ensure that DC connector A
is unplugged.
✓
NOTE: Protection against lightning and resulting voltage surge must be
in accordance with local standards.
✓
NOTE: Using unapproved attachments or accessories could result in
damage or injury.
✓
NOTE: To ensure optimal reliability and to meet warranty requirements,
the AC Battery must be installed and/or stored according to the instruc-
tions in this guide.
✓
NOTE: The AC Battery is compatible only with the Envoy-S, Metered
communications gateway, which is required for operation of the AC
Battery. Earlier versions of the Enphase Envoy communications gate-
way, and non-metered gateways are incompatible.
✓
NOTE: When stored, the AC Battery is not connected to the grid and no
automatic charge of the battery is possible.
✓
NOTE: Never leave the battery on its back for more than five minutes.
The battery cells are meant to be in the upright position.
✓
NOTE: During use, storage, and transport, keep the AC Battery:
• Properly ventilated
• Away from water, other liquids, heat, sparks, and direct sunlight
• Away from excessive dust, corrosive and explosive gases, and oil
smoke
• Away from direct exposure to gas exhaust, such as from motor
vehicles
• Free of vibrations
• Away from falling or moving objects, including motor vehicles
• At an elevation of fewer than 2,000m above sea-level
• In a location compliant with fire safety regulations (has a smoke
detector)
• In a location compliant with local building codes and standards
H O M E O W N E R ' S G U I D E
(Model B270-1200-LN-I-AU00-RV0)
The Enphase AC Battery
The Enphase Storage System includes the Enphase AC Battery™ and uses the Enphase Envoy-S
Metered™ to measure PV production, home energy consumption, and energy storage. The system
knows when it is optimal to charge or discharge battery power so that energy is stored when it is
abundant and used when scarce.
Access Your System Online
You can view your PV solar production, your electricity consumption, and your energy storage using
Enphase MyEnlighten™. Once your installer creates a profile with your email address, Enphase will
email your system's unique MyEnlighten web link and a temporary password. Read the Enlighten
terms of service at https://enphase.com/en-us/legal/terms-of-service.
Safety warnings are listed on the back of this guide.
1) Only qualified electricians shall install, troubleshoot, or replace the AC Battery.
2) The AC Battery contains no user servicable parts. Do not open the AC Battery.
Enphase Storage System
© 2016 Enphase Energy Inc. All rights reserved.
