HOOKE ROAD BXG.5211-S Quick Start Manual

Front bumper
Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Quick Links

Download this manual
BXG.5211-S
Front Bumper
(1) Contents:

Advertisement

loading
Need help?

Need help?

Do you have a question about the BXG.5211-S and is the answer not in the manual?

Questions and answers

Related Manuals for HOOKE ROAD BXG.5211-S

Summary of Contents for HOOKE ROAD BXG.5211-S

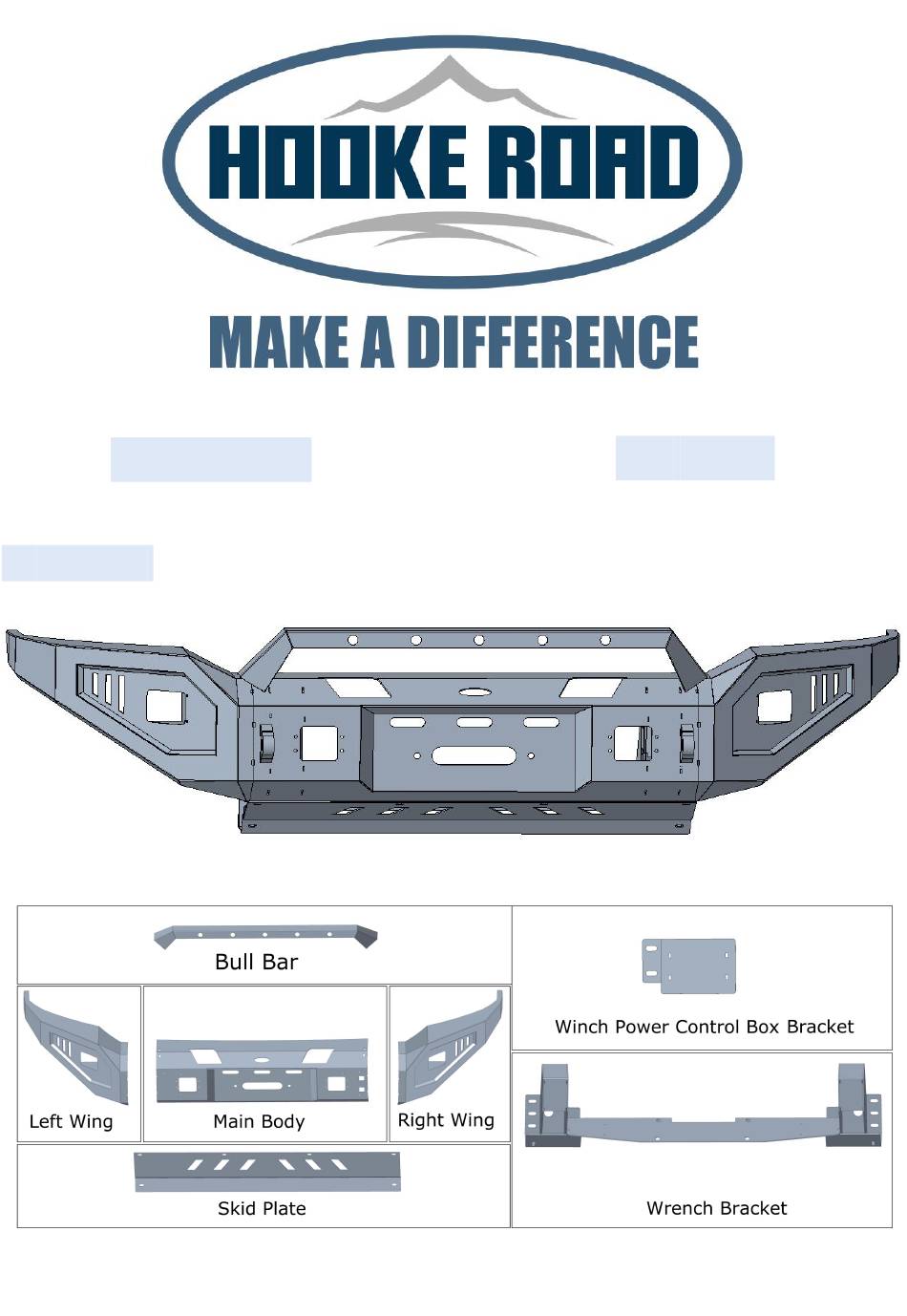

  • Page 1 BXG.5211-S Front Bumper (1) Contents:...
  • Page 2 Part Name Size(mm) Picture Hex Bolt M12*110 Hex Bolt M12*30 Hex Bolt M8*20 Button Head Socket Cap Bolts Screws M8*20 Split Lock Washer Split Lock Washer Flat Washer M12*30*2 Flat Washer M8*16*1.5 Hex Nuts Flange Hex Lock Nuts...
  • Page 3 About 1.5 hours, 2-3 people may be needed. Installation time may differ according to your mechanical skill level. (PLEASE VERIFY ALL PARTS ARE PRESENT AND READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION!) To view the electronic version (BXG.5211-S), please scan the QR code.
  • Page 4 (4) Installation instruction: Step 1: Remove the factory front bumper and relative accessories. Step 2: Install the Wrench Bracket with the factory bolts. In this step, you can install your winch. If you have winch power control box, please look the step...
  • Page 5 Step 3: Assemble the left, right wings & main body with the Hex Bolt (M12*30), Split Lock Washer (D12), Flat Washer (M12*30*2), Hex Nuts (M12). Step 4: Install the light bar bracket into the bumper with the Hex Bolt (M8*20), Split Lock Washer (D8), Flat Washer (M8*16*1.5), Flange Hex Lock Nuts (M8).
  • Page 6 Step 5: Install the Skid Plate into the bumper with the Hex Bolt (M8*20), Split Lock Washer (D8), Flat Washer (M8*16*1.5), Flange Hex Lock Nuts (M8). Step 6: Install the bumper onto the vehicle frame with the Hex Bolt (M12*110), Split Lock Washer (D12), Flat Washer (M12*30*2), Hex Nuts (M12).
  • Page 7 Notes: Tighten up the bolts on both sides after adjusting the height of the bumper. Leave a proper distance between the bumper and the car frame as the picture shown. Step 7: If you have a winch control box, you need install the winch control box bracket to fix it in left or right side.
  • Page 8 Step 8: The installation is complete. We hope you enjoy a wonderful off-road life with this quality Hooke Road product! Attention: 1.The product parts in this instruction may differ slightly from the actual product contents but generally does not affect the installation of the product.
