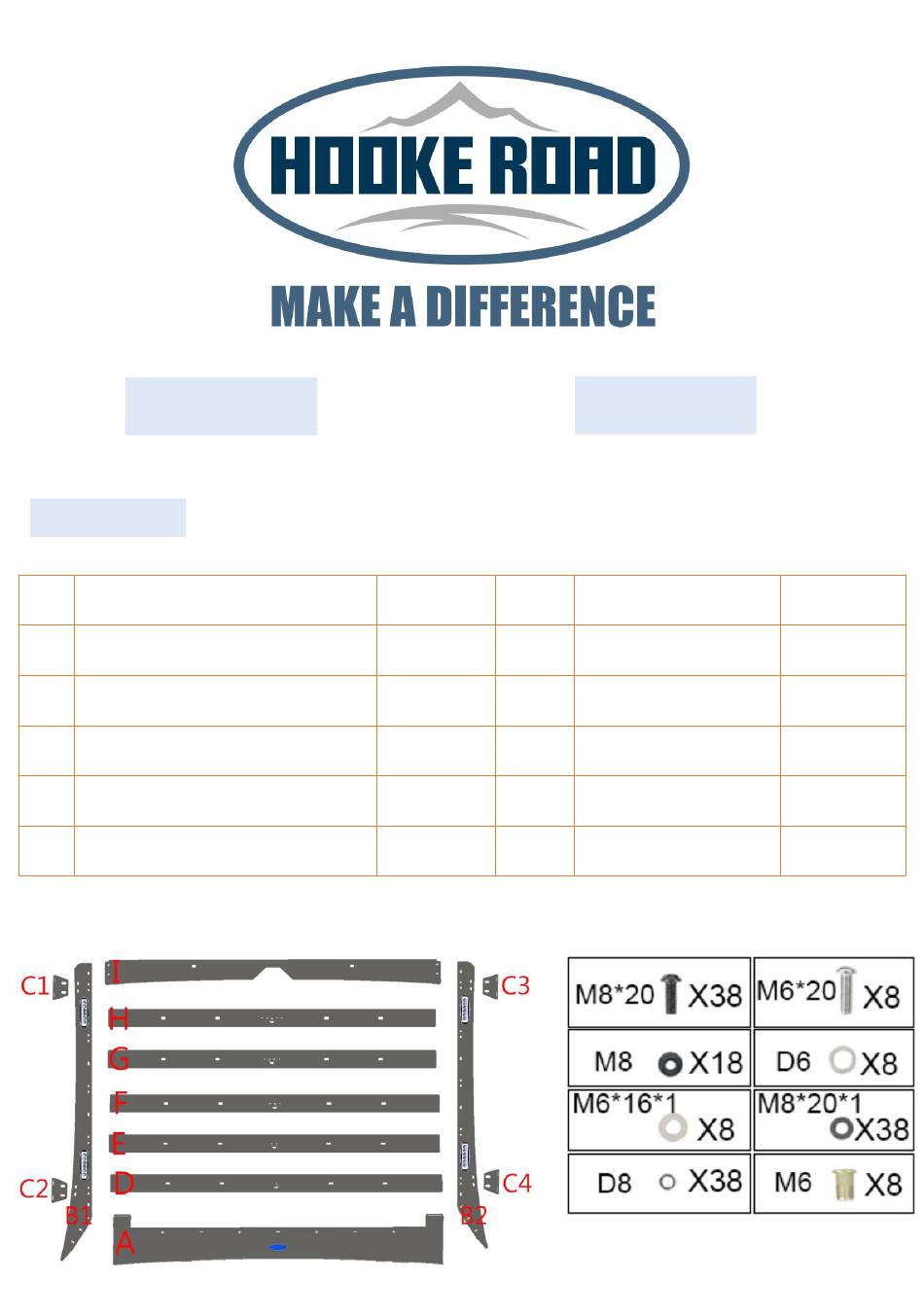

Roof Rack
(1)Contents:
Qty
Part Name
1
Roof Rack Assembly
38
Button Head Socket Cap Bolts Screws
8
Button Head Socket Cap Bolts Screws
18
Flange Hex Lock Nuts
8
Split Lock Washer
Size(mm)
Qty
8
M8*20
38
M6*20
38
M8
8
D6
BXG.5202
Part Name
Flat Washer
Flat Washer
Split Lock Washer
Rivet Nut
Size(mm)
M6*16*1
M8*20*1
D8
M6
Advertisement
Related Manuals for HOOKE ROAD BXG.5202
Summary of Contents for HOOKE ROAD BXG.5202
- Page 1 BXG.5202 Roof Rack (1)Contents: Part Name Size(mm) Part Name Size(mm) Roof Rack Assembly Flat Washer M6*16*1 Button Head Socket Cap Bolts Screws M8*20 Flat Washer M8*20*1 Button Head Socket Cap Bolts Screws M6*20 Split Lock Washer Flange Hex Lock Nuts...
-
Page 2: Installation Time
About 2 hours, 2-3 people may be needed. Installation time may differ according to your mechanical skill level. (PLEASE VERIFY ALL PARTS ARE PRESENT AND READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION!) To view the electronic version (BXG.5202), please scan the QR code. -
Page 3: Installation Instruction
(4)Installation instruction: Step 1: Assemble the Part “A”, ”B1” , “B2”with the Button Head Socket Cap Bolts Screws (M8*20), Flat Washer (M8*20*1), Split Lock Washer (D8), Flange Hex Lock Nuts (M8) . - Page 4 Step 2: Assemble the Part “D”, “E”, “F”, “G” ,”H” with the Part ”B1”& ”B2”. The assembly using the Button Head Socket Cap Bolts Screws (M8*20), Flat Washer (M8*20*1), Split Lock Washer (D8). As shown below. Note:Pay attention to the order of the five cross bars. Step 3: Assemble the Part “I”...
- Page 5 Step 4: Tighten all the bolts. Step 5: Assemble the Part “B1” , ”B2” & Part ”C1”,”C2”,”C3”, ”C4” with the Button Head Socket Cap Bolts Screws (M8*20), Flat Washer (M8*20*1), Split Lock Washer (D8), Flange Hex Lock Nuts (M8) .
- Page 7 Step 6: Place it on the proper position on top of vehicle. Note the position of the installation brackets with a making pen. According to the marks, drill eight installation holes totally. Then use the pneumatic riveting nut gun with 6mm nut chuck to install the eight riveting nuts.
- Page 8 Step 7: Place the rack on the top of the car. Install it with the Button Head Socket Cap Bolts Screws (M6*20), Flat Washer (M6*16*1), Split Lock Washer (D6).
- Page 9 1.The product parts in this instruction may differ slightly from the actual product contents but generally does not affect the installation of the product. 2.Please feel free to contact your distributor if you have any kind of question about your purchase. Hooke Road to find your parts...
