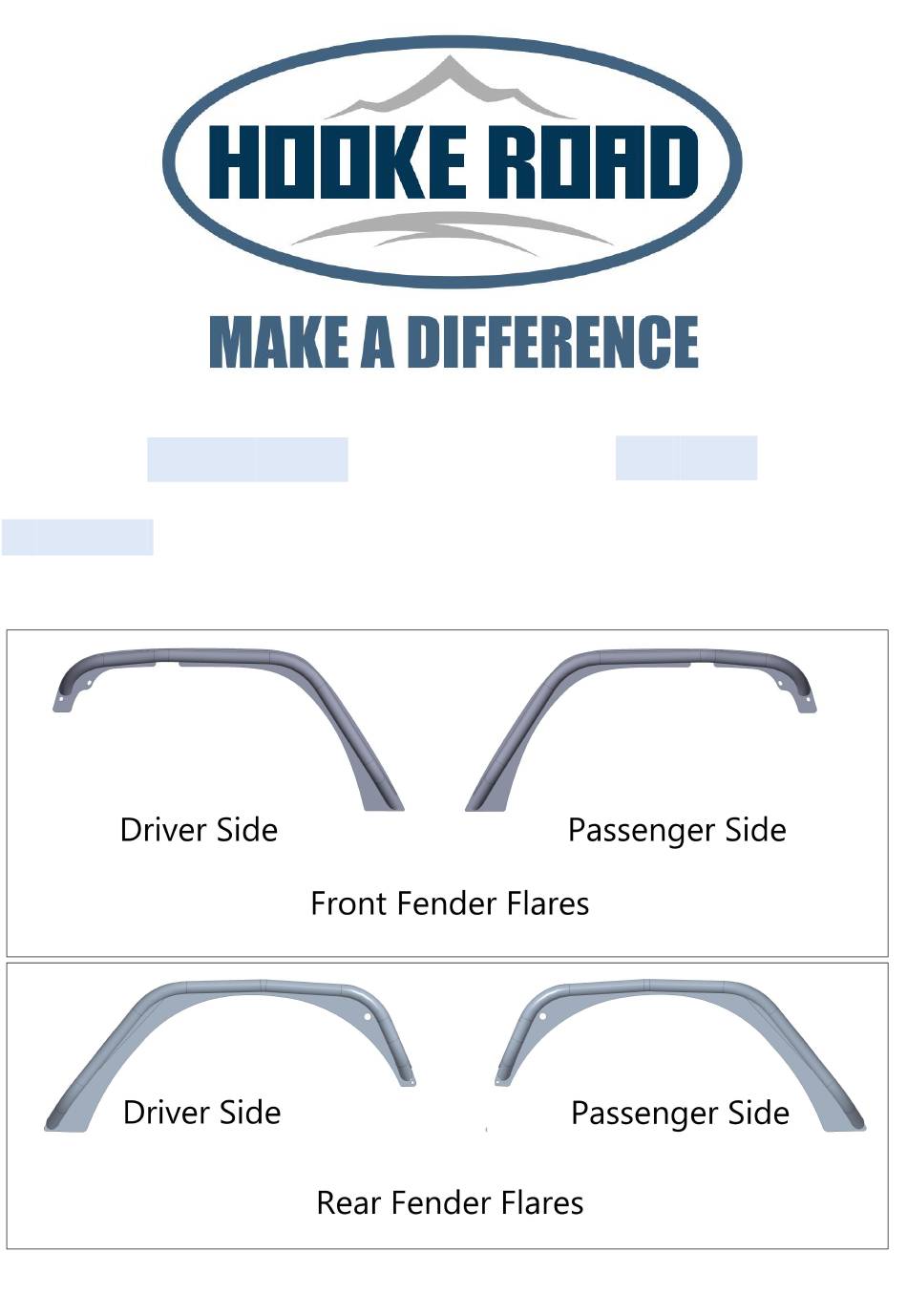

- Page 1 BXG.2086 Fender Flares (1) Contents:...
- Page 2 Part Name Size(mm) Picture Hex Bolt M8*25 Split Lock Washer Flat Washer M8*16*1 Flange Hex Lock Nuts Rivet Nut (2) Tools required: a. Drive Socket Ratchet Wrench； b. 5mm Hex Bit Socket; Hand Rivet Nut Tool c. Rivet Nut Tool; (Package Included) d.
- Page 3 (PLEASE VERIFY ALL PARTS ARE PRESENT AND READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION!) To view the electronic version (BXG.2086), please scan the QR code. (4) Installation instruction: Driver’s Side Front Fender Flares Installation: Step 1: Before installation, please remove the factory fender liners in...
- Page 4 Step 2: If you have purchased our front inner fender liners, please follow the steps below for installation; otherwise, you can disregard the following steps. Due to the inability to install nuts in the side screw holes, you need to manually insert a rivet using a hand riveting tool at the side mounting location.
- Page 5 Step 3: First, start by installing the 5 screws in the front screw holes. Lift the fender flarer, align it with the body holes, and secure it using M8*25 screws and nuts.
- Page 6 Step 4: Finally, install the two rear mounting holes using M8*25 screws and nuts for each. After completing the installation, tighten all the screws. At this stage, the front fender flare is fully installed. Driver’s Side Rear Fender Flares Installation: Step 5: Before installation, please remove the factory fender liners in preparation for installing our product.
- Page 7 Step 6: Compare the holes on the car body with your vehicle, and once you locate the corresponding installation holes, refer to the riveting process described in the second step above. Proceed to rivet all the holes using the appropriate rivets. Notes: If you have purchased our rear inner fender liner, you don't need to rivet the top two holes.
- Page 8 Rear Middle Step 8: After completing the driver side installation, follow the same installation method on the passenger side. Step 9: The installation is complete. We hope you enjoy a wonderful off-road life with this quality Hooke Road product!
- Page 9 Attention: 1.The product parts in this instruction may differ slightly from the actual product contents but generally does not affect the installation of the product. 2.Please feel free to contact your distributor if you have any kind of question about your purchase.
