Front Bumper

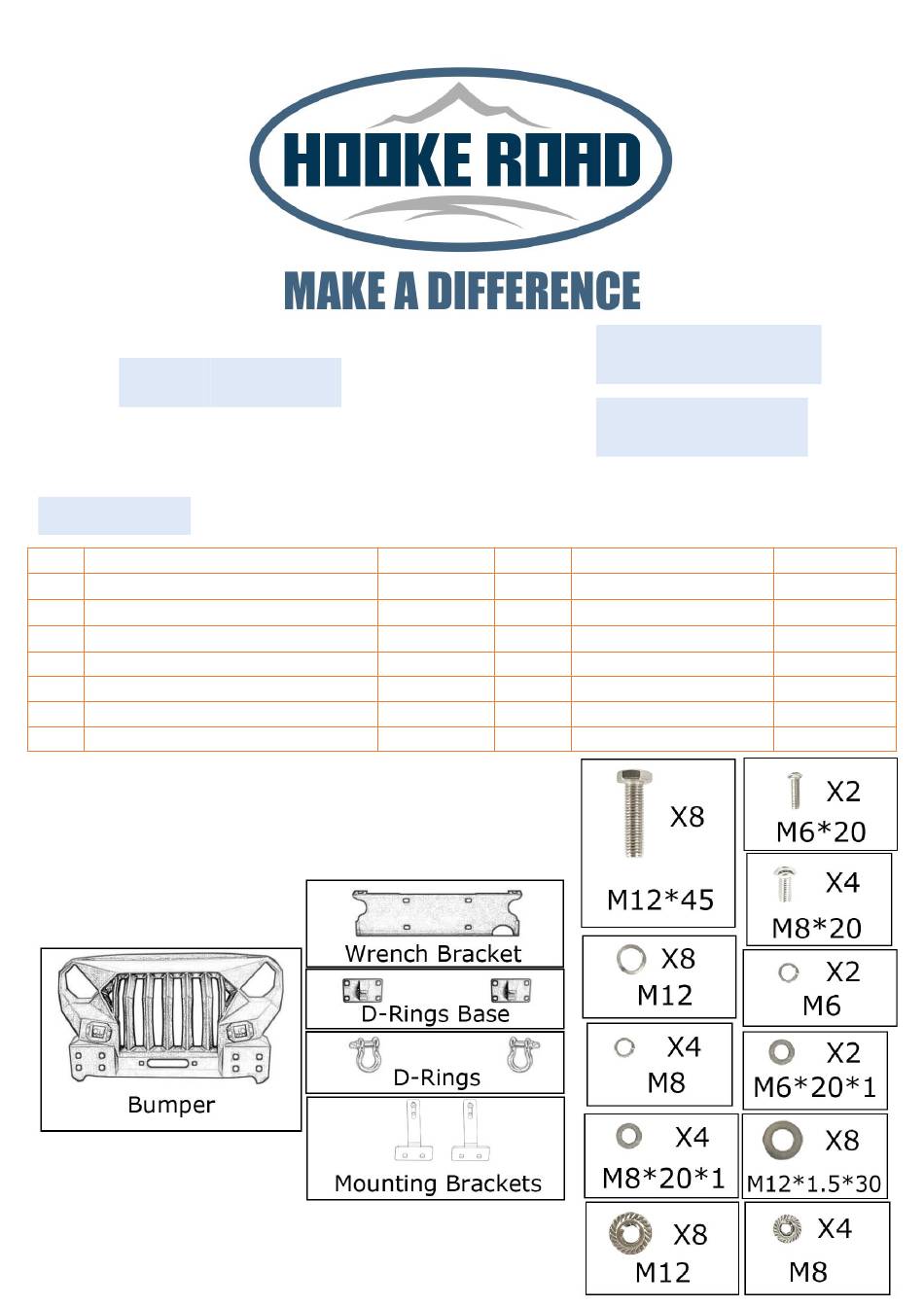

(1)Contents:
Qty
Part Name
1
Front Bumper Assembly
8
Hex Bolts
2
Button Head Socket Cap Bolts Screws
4
Button Head Socket Cap Bolts Screws
8
Split Lock Washer
2
Split Lock Washer
4
Split Lock Washer
Size(mm)
Qty
2
M12*45
4
M6*20
8
M8*20
8
M12
4
M6
1
M8
BXG.3020A-1S
BXG.3020B-S
Part Name
Flat Washer
Flat Washer
Flat Washer
Flange Hex Lock Nuts
Flange Hex Lock Nuts
Glue Strip
Size(mm)
M6*20*1
M8*20*1
M12*30*1.5
M12
M8
1230
Advertisement
Related Manuals for HOOKE ROAD BXG.3020A-1S
Summary of Contents for HOOKE ROAD BXG.3020A-1S
- Page 1 BXG.3020A-1S Front Bumper BXG.3020B-S (1)Contents: Part Name Size(mm) Part Name Size(mm) Front Bumper Assembly Flat Washer M6*20*1 Hex Bolts M12*45 Flat Washer M8*20*1 Button Head Socket Cap Bolts Screws M6*20 Flat Washer M12*30*1.5 Button Head Socket Cap Bolts Screws M8*20...
- Page 2 If you purchased the wing version, you will receive the following accessories in another package. Part Name Size(mm) Part Name Size(mm) Wings Split Lock Washer Button Head Socket Cap Bolts Screws M8*16 Flange Hex Lock Nuts Flat Washer M8*16*1...
-
Page 3: Tools Required
(2)Tools required: A.19mm Socket Wrench; B.16mm Socket Wrench; C.4mm HEX Socket Wrench; D.6mm HEX Socket Wrench; E.6mm Allen Wrench; (3) Installation time: About 2 hours, 2-3 people may be needed. Installation time may differ according to your mechanical skill level. (PLEASE VERIFY ALL PARTS ARE PRESENT AND READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION!) To view the electronic version (BXG.3020AB-S), please scan the QR code. -
Page 4: Installation Instruction
(4)Installation instruction: Step 1: Begin the installation by removing the original front bumper.And don’t forget to remove the grille and open the Hood. Step 2: Install the Wrench Brackets into the car frame using your original screws. - Page 5 Step 3: Install the Mountings Bracket into the bumper with the Button Head Socket Cap Bolts Screws (M8*20), Split Lock Washer (D8), Flat Washer (M8*20*1), Flange Hex Lock Nuts (M8). Don’t tighten up those bolts. Step 4: Install the Button Head Socket Cap Bolts Screws (M6*20), Split Lock Washer (D6, Flat Washer (M6*20*1).
- Page 6 Step 5: Before install the bumper, please glue the glue strip into the bumper. Install the bumper & the D-rings base into the car frame with the Hex Bolt(M12*40), Split Lock Washer (D12), Flat Washer (M12*2*30), Flange Hex Note: Before installing those bolts, please adjust the Lock Nuts (M12).
- Page 7 Step 6: After all above,then install the D-ings.The D-rings is very easy to install.As shown below.
- Page 8 Step 7: The installation is complete (without the wings part). We hope you enjoy a wonderful off road life with this quality product! Step 8: If you purchased the wings version, please refer to the below steps to install the wings. Install the wings with the Button Head Socket Cap Bolts Screws (M8*20 &...
- Page 10 Step 9: The installation is complete.We hope you enjoy a wonderful off road life with this quality product! Step 10: How to connect to the light wire. Please ask for your supplier about this explanation.
- Page 11 1.The product parts in this instruction may differ slightly from the actual product contents but generally does not affect the installation of the product. 2.Please feel free to contact your distributor if you have any kind of question about your purchase. to find your parts Hooke Road...
