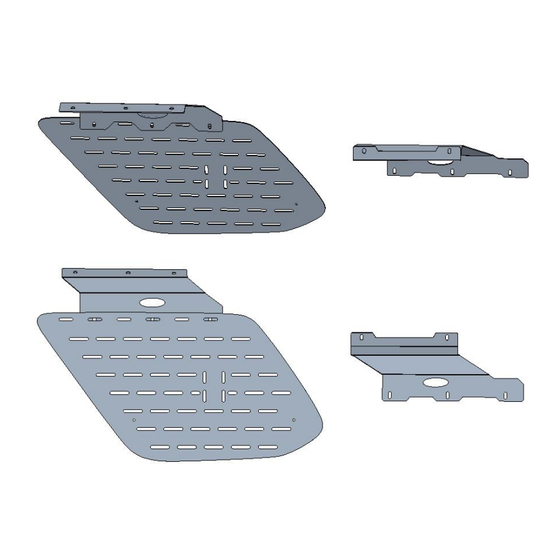

- Page 1 BXG.9804-S Rear Window Panel (1) Contents:...
- Page 2 Part Name Size(mm) Picture Button Head Socket Cap Bolts Screws M8*16 Hex Bolt M8*16 Flat Washer M8*20*1 Flange Hex Lock Nuts T-Slot Drop-in Stud Sliding Screw Bolt Handle Suction Cups Rubber Spacers M6*20*2 (2) Tools required: a. Drive Socket Ratchet Wrench; b.
- Page 3 About 40 minutes, 1-2 people may be needed. Installation time may differ according to your mechanical skill level. (PLEASE VERIFY ALL PARTS ARE PRESENT AND READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION!) To view the electronic version (BXG.9804-S), please scan the QR code.
- Page 4 (4) Installation instruction: Note: This product has two installation methods: it can be installed either on the factory vehicle roof rack or on the roof rack sold by us. Please choose the installation method that best suits your needs and proceed with the installation accordingly.
- Page 5 Step 3: Next, assemble the factory vehicle mounting bracket into the panel. Please carefully differentiate the mounting brackets; the original vehicle mounting bracket has one side with only two installation holes. Assemble using M8*16 screws and nuts.
- Page 6 Step 4: Next, assemble the suction cups and handles on the two circular holes beneath the panel. During assembly, it's necessary to place rubber spacers on the surface of the handle. Step 5: Next, lift the assembled panel and install it on the factory vehicle roof rack.
- Page 7 Step 6: The installation is complete. We hope you enjoy a wonderful off-road life with this quality Hooke Road product! The installation demonstrated is on the driver's side. Please replicate the same installation method on the passenger side. Hooke Road Roof Rack Installation: Step 7: First, assemble the suction cups and handles on the two circular holes beneath the panel.
- Page 8 Assemble using M8*16 screws and nuts. Step 9: Next, lift the assembled panel and install it on the Hooke Road roof rack. Ensure it is laid flat to be inserted into the roof rack. Secure it using...
- Page 9 Step 10: The installation is complete. We hope you enjoy a wonderful off-road life with this quality Hooke Road product! The installation demonstrated is on the driver's side. Please replicate the same installation method on the passenger side. Attention: 1.The product parts in this instruction may differ slightly from the actual product contents but generally does not affect the installation of the product.
