Bed Rack
(1)Contents:
Qty
Part Name
1
Bed Rack Assembly
H×6
Carriage Bolts
I×36
Button Head Socket Cap Bolts Screws
J×6
Flat Washer
BXG.7008
Size(mm)
Qty
Part Name
K×72
Flat Washer
M10*30
L×36
Nylon Insert Lock nut
M×6
M8*20
Nylon Insert Lock nut
M10*20*1
N×36
Split Lock Washer
Size(mm)
M8*20*1
M8
M10
M8
Advertisement
Table of Contents
Related Manuals for HOOKE ROAD BXG.7008
Summary of Contents for HOOKE ROAD BXG.7008

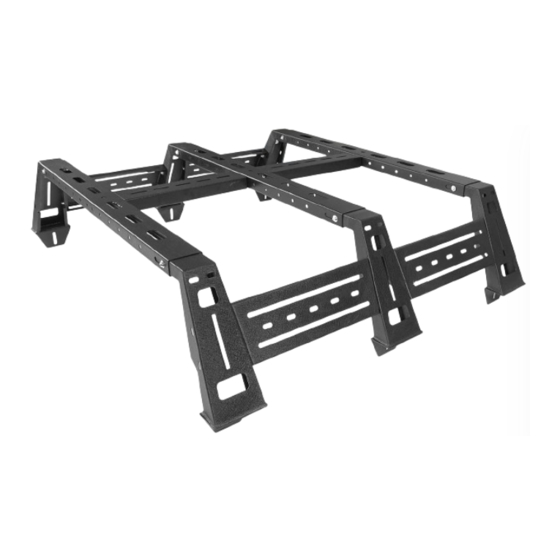

- Page 1 Bed Rack BXG.7008 (1)Contents: Part Name Size(mm) Part Name Size(mm) K×72 Bed Rack Assembly Flat Washer M8*20*1 H×6 Carriage Bolts M10*30 L×36 Nylon Insert Lock nut M×6 I×36 Button Head Socket Cap Bolts Screws M8*20 Nylon Insert Lock nut J×6...
- Page 2 About 2-3hours, 2-3people may be needed. Installation time may differ according to your mechanical skill level. (PLEASE VERIFY ALL PARTS ARE PRESENT AND READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION!) To view the electronic version (BXG.7008), please scan the QR code.
- Page 3 (4)Installation instruction: Step 1: Assemble the Part “A” & ”B” with those bolts(I, K, L, N). As the picture show.
- Page 4 Step 2: Lift the three brackets into your car. Adjust the installation position according to your need. Connect the three brackets together with the Part ”A” using those bolts(I, K, L, N). As the picture show. Notes: Don’t tighten all the bolts.
- Page 5 Step 3: Install the Part “D” into both sides of the three brackets with those bolts(I, K, L, N). Notes: Don’t tighten all the bolts.
- Page 6 Step 4: Install into your vehicle with those bolts(H, J, M). The factory rail system model ① Part”F Without the factory rail system model ②...
- Page 7 Step 5: The installation is complete. We hope you enjoy a wonderful off-road life with this quality Hooke Road product! Attention: 1.The product parts in this instruction may differ slightly from the actual product contents but generally does not affect the installation of the product.
