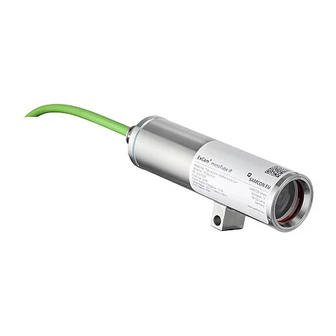

Samcon RoughCam microTube IP User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
®
RoughCam
microTube IP
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RoughCam microTube IP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Samcon RoughCam microTube IP

Summary of Contents for Samcon RoughCam microTube IP

  • Page 1 ® RoughCam microTube IP User Manual...

  • Page 2: Table Of Contents

    Table of contents Introduction ......................4 Technical data ......................4 Electrical parameters of the camera ..............6 Connection cable (SKD01-T/ASKD02-T) ............6 Video-technical characteristics ................7 Other technical data .................... 7 Safety Instructions ....................8 Installation ........................ 9 Electrical connection ..................... 11 Potential equalization ..................
  • Page 3 Date Name Comment Index 17.02.2025 S.Heinz Compilation of the document, Digital unterschrieben von Alexander Kruse Alexander Kruse based on ExCam microTubeIP DN: cn=Alexander Kruse, o, ou, email=a.kruse@samcon.eu, c=DE Datum: 2025.03.06 12:13:57 +01'00' Doc.-ID: 250217-PT10BA-SHe-RoughCam microTube IP_en_rev.00.docx, Page 3 of 28...

  • Page 4: Introduction

    ® microTube IP = Functional camera description of the RoughCam Series RoughCam (technical data/specification of the individual camera module) T10 = SAMCON Production- Type 10 VA0.4.K1.BOR = T07 ex d housing (stainless steel 1.4404) with small diameter Ø =48mm) VA0.4.K1.BOR = T07 VA0.4 housing with maximum body length (L...
  • Page 5 contact assignment acc. To specification EIA/TIA-568B Terminal Box termination (optional) 4 x PoE Mode A connection (camera PoE) (see chapter electrical connection) Lens options T10-VA.0.4.K1.BOR-N.H-XXX.X-X-058 Megapixel lens 4.3mm F2.0 HAoV@16/9=58° T10-VA.0.4.K1.BOR-N.H-XXX.X-X-034 Megapixel lens 8mm F2.0 HAoV@16/9=34° Doc.-ID: 250217-PT10BA-SHe-RoughCam microTube IP_en_rev.00.docx, Page 5 of 28...

  • Page 6: Electrical Parameters Of The Camera

    5 x D after relocation Data line: 4 x 2 x AWG22/1 CAT.6 Properties: PUR halogen-free, flame-retardant, UV-re- sistant, chemical resistance, shielded Quick link: https://www.samcon.eu/fileadmin/documents/en/60-Assembling%26mounting/SKD01-T_Datasheet.pdf Fig. 2-1 Sectional view of SKD01-T Doc.-ID: 250217-PT10BA-SHe-RoughCam microTube IP_en_rev.00.docx, Page 6 of 28...

  • Page 7: Video-Technical Characteristics

    (see www.samcon.eu Quicklink: https://www.samcon.eu/fileadmin/documents/en/60- Assembling%26mounting/ASKD02-T_Datasheet.pdf Fig. 2-2 Sectional view of ASKD02-T Video-technical characteristics We use the eneo ISM-42F0036MCB Module Network Camera in a pressure-resistant en- closure. For details, please refer to the Product Documentation, video-technical data of eneo ®...

  • Page 8: Safety Instructions

    Safety Instructions It is absolutely mandatory to adhere to the national safety regulations and regula- tions for prevention of accidents, as well as to the safety instructions given below in this User Manual! Attention! Repairs may only be carried out by using original parts from the manu- facturer.

  • Page 9: Installation

    Installation For commissioning and operating the camera, the relevant national regulations, as well as the generally accepted rules of technology shall prevail. Before mounting the camera, thor- oughly check it for any transport damage, especially on the housing and cable. Installation, electrical connection and the first start must only be carried out by qualified specialists.
  • Page 10 Drawings for drill hole patterns and further information can be viewed on our product page: Quick link: https://www.samcon.eu/en/products/network/roughcam-microtube-ip/ Optional mounting accessories Wall bracket WALL MOUNT WMB-VA0.x/1.x Wall bracket for cameras of the T10-VA1.x- WMB-... Series Suitable for hanging the cameras on walls.

  • Page 11: Electrical Connection

    Electrical connection Attention! The electrical connection of the equipment may only be carried out by qualified and skilled personnel! Attention! It is absolutely necessary to ground the RoughCam series’ housing via ® the PA connection. The delivered RoughCam microTube IP is equipped with an electrical connection cable ®...

  • Page 12: Connection Work At The Device (Terminal Box) And Fuses

    Wiring table: Potential Colour (IEC 60757) Cross-sec- Comment tion GN/YE 4 mm (rigid) Terminal: Slotted screw M4x0.7 (DIN 84) with washer Ø9mm (DIN 125A), Keep 3 Nm tightening torque! Table 5-1 Potential equalization Connection work at the device (terminal box) and fuses Cable gland for SKD01-T: ADE 1F2 Type5 - M20 (Neopren);...

  • Page 13: Video Tutorial

    Fig. 5-4 RoughCam microTube IP T10-VA0.4.K1.BOR-N.H-xxx.x-P ® Video Tutorial: Observe our video tutorial: “SAMCON 01 Wiring the cable SKDP03-T to the junction box ExTB-3” https://go.samcon.eu/v01 Fig. 5-5 Video Tutorial ExTB-3 Doc.-ID: 250217-PT10BA-SHe-RoughCam microTube IP_en_rev.00.docx, Page 13 of 28...
  • Page 14 The pin assignment of the SKD01-T is executed in accordance with the standard EIA/TIA- 568B as follows: Camera Colour Terminal Cross-sec- Comment SKD02-T ExTB-2 tional sur- (T568B) (IEC60757) face WH / OG 0.32 mm Solid conductor 0.32 mm Solid conductor WH / GN 0.32 mm Solid conductor...
  • Page 15 SKD01-T SKD01-T RoughCam microTube IP housing Fig. 5-6 Sample circuit of terminal box ExTB-2 RoughCam microTube IP Fig. 5.7 Connection to the terminal box Doc.-ID: 250217-PT10BA-SHe-RoughCam microTube IP_en_rev.00.docx, Page 15 of 28...

  • Page 16: Fusing

    Bring the twisted pair composite up to about 10 mm close to the termi- nals, in order to ensure interference immunity. Attention! Use only terminals approved by SAMCON. Attention! Finally, check your network installation with a Class-D Link Test. 5.2.1 Fusing PoE power supply requires no fuses.

  • Page 17: Tests Prior To Switching On Voltage

    Detailed instructions on how to connect a RJ45 plug are available in our video tutorial: “SAMCON 03 Mounting and installing the RJ45 jack to SAMCON cables” https://go.samcon.eu/v03 Fig. 5-8 Plug assignment, RJ45 5.2.3 Tests prior to switching on voltage Attention! Prior to starting the device, perform all tests as indicated by the national regulations.

  • Page 18: Working Inside The Camera Housing

    Working inside the camera housing The customer may open the housing only if it is absolutely necessary. Only the change of the SD Card is a reason for this. Preparation for work: Attention! Prepare your work carefully and in accordance with the relevant regulations.
  • Page 19 Carefully pull out the cable and supply flange to the rear, as straight as possible. Because of negative pressure, it may be difficult to remove the flange. The cylindrical clearance fit (H8f7 - DIN ISO 286) of the camera body and flange may not be tilted! Risk of damage to the flame-proof gap (DIN EN 60079-1:2012)! Attention: The mounting adapter with the camera module and optics, as well as the tem- perature control, and (if applicable) auxiliary relays and terminal block are fixed on the...

  • Page 20: Exchange Of Sd Card

    Exchange of SD card If it is necessary to change the SD card, the rear housing part must be unscrewed and the camera module removed. Fig. 6-2 Position of SD card If it is necessary to replace the SD card, the standard recording function must be adjusted or switched off! Fig.
  • Page 21 Fig. 6-4- Setup eneo siteManager Fig. 6-5- SD card eneo siteManager Fig. 6-6- Time line eneo siteManager Select and adjust the schedule/turn it off and save. Doc.-ID: 250217-PT10BA-SHe-RoughCam microTube IP_en_rev.00.docx, Page 21 of 28...

  • Page 22: Closing The Housing

    Closing the housing For closing the housing, proceed in reverse order as when opening. Use exclusively origi- nal screws included in the supply. The cable and power-supply flange (K1) is fixed by 6 cylinder-head screws M3 (ISO metric right-turning) with 10 mm thread length (DIN 912/ ISO 4762, grade 6g). Materials of bolted connections are identical to the pressure-resistant stainless steel housing (standard mate- rial no.

  • Page 23: Commissioning, Network Access And Visualization

    Commissioning, network access and visualization The camera is configured via the device's own website, the video stream can be accessed via RTSP or you can integrate the camera into your video management system using the ONVIF protocol. Network access The camera obtains an IP address via DHCP. If there is no DHCP server on the network, the default IP address is 192.168.1.10 Default username: admin Default password: admin...

  • Page 24: Web Interface, Configuration And Control

    Web interface, configuration and control Enter the camera's IP address in your web browser and open the web interface. By auto- matically redirecting to https://... you may receive a message that the connection is not secure or private. Please confirm opening the website using the “Advanced” button. Default username: admin Default password: admin The web interface is intuitive and offers a variety of configuration options.

  • Page 25: Visualization, Rtsp Video Stream

    Visualization, RTSP video stream The camera's video stream can be visualized via the following addresses: RTSP rtsp://<user>:<password>@<ip>:554/1/stream1 rtsp://<user>:<password>@<ip>:554/1/stream2 rtsp://<user>:<password>@<ip>:554/1/stream3 Example: rtsp://admin:admin@192.168.1.10:554/1/stream1 ONVIF, VMS-Integration The camera can be integrated into your video management system (VMS) via ONVIF Pro- file S and Profile T. We recommend AXIS Camera Station ONVIF Device Manager easy configuration.

  • Page 26: Maintenance / Modification

    (e.g., proper condition of the casing, seals and cable entry points). If maintenance measures are necessary they have to be initiated and/or executed. Repairs may only be carried out with original parts of SAMCON Prozessleittechnik GmbH. Damaged pressure-resistant housings have to be replaced completely. In case of doubt, send the part in question back to SAMCON Prozessleittechnik GmbH.
  • Page 27 If you wish additional technical information, please contact us at: support@samcon.eu Doc.-ID: 250217-PT10BA-SHe-RoughCam microTube IP_en_rev.00.docx, Page 27 of 28...
  • Page 28 Schillerstrasse 17, 35102 Lohra-Altenvers, Germany www.samcon.eu, info@samcon.eu Phone: +49 6426 9231-0, fax: - 31...
