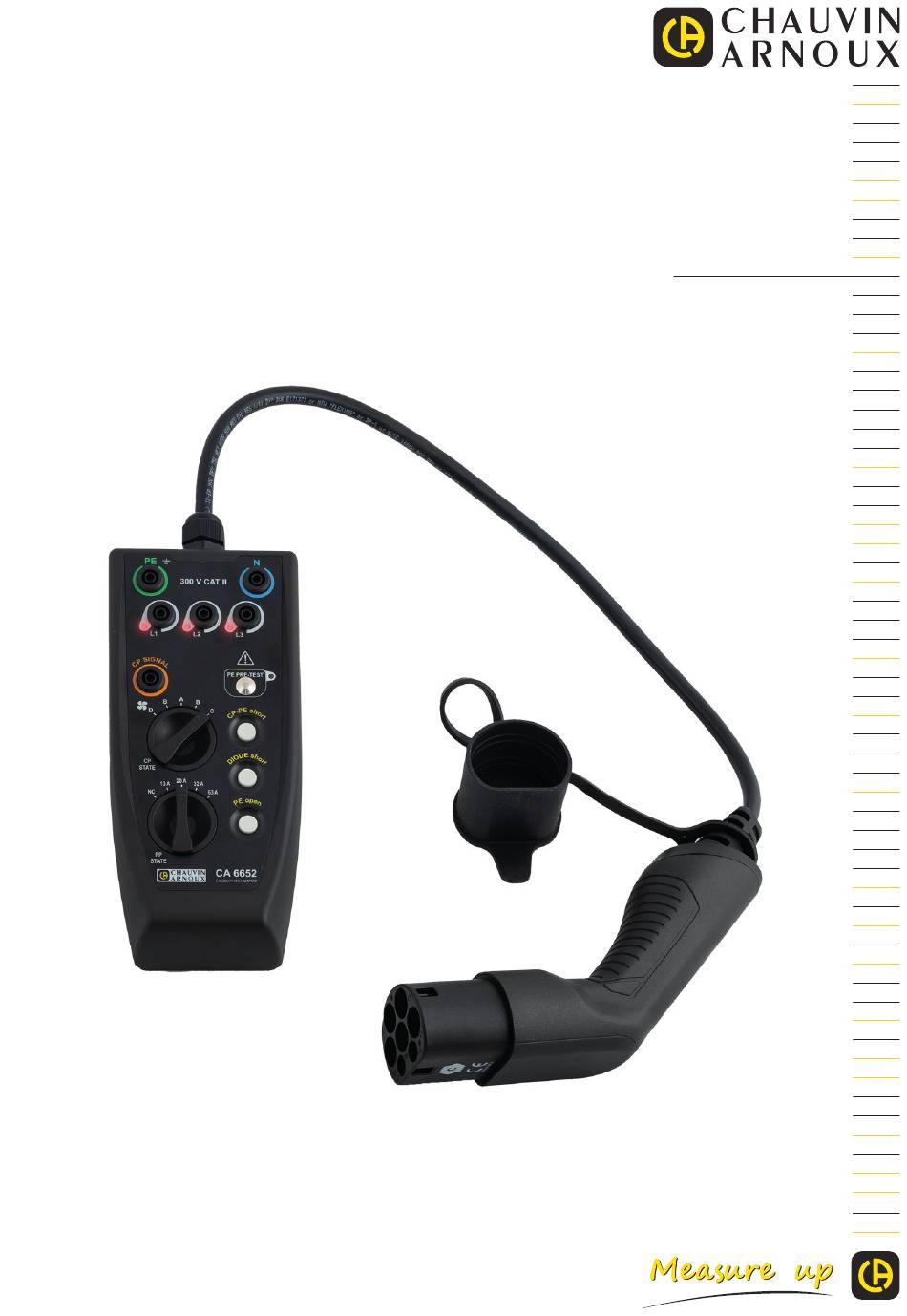

  • Page 1 EN - User’s manual CA 6652 Electric vehicle charging station tester...

  • Page 2: Precautions For Use

    ■ The tests can be performed only by an EVCI-qualified electrician or under the supervision of a qualified electrician. The qualified individual must be trained for the specific task. ■ Do not use the instrument on networks of which the voltage or category exceeds those mentioned. The CA 6652 can be used only on 230 Vac/400 Vac charging stations.

  • Page 3: Table Of Contents

    CONTENTS 1. PRESENTATION ..................................4 1.1. Delivery condition ................................4 1.2. Functionalities ................................4 1.3. View of the instrument ..............................5 2. USE ......................................6 2.1. Visual inspection .................................6 2.2. Functional test ................................7 2.3. Fault simulation ................................7 2.4. Electrical safety verification ............................8 2.5. Verification of the charging station operation ......................11 2.6.

  • Page 4: Presentation

    With an oscilloscope connected to the CA 6652, you can also observe the Control Pilot signal. The CA 6652 is powered by the charging station it is testing. The CA 6652 is intended for use in charging mode 3 with a type 2 connector. This means that the charging is controlled by the terminal.

  • Page 5: View Of The Instrument

    Button for simulation of a short circuit STATE by diode between CP and PE 20 A 32 A 13 A 63 A Current load capacity switch (PP STATE). Captive cap STATE CA 6652 Button for PE simulation E-MOBILITY TEST ADAPTER Type 2 connector.

  • Page 6: Use

    2. USE The tests must only be performed by or under the supervision of an EVCI-qualified electrician. In France, decree no. 2017-26 of 12/01/2017 concerning charging infrastructure for electric vehicles imposes stringent requirements. The EVCI-qualified electrician must comply with the rules and standards required for their work, and must not skip steps needed to ensure correct, safe use of the charging station.

  • Page 7: Functional Test

    32 A 63 A STATE CA 6652 E-MOBILITY TEST ADAPTER If the voltage of the PE in relation to earth is not zero, the LED lights up. The tests must then be stopped and the charging station must be repaired.

  • Page 8: Electrical Safety Verification

    32 A 13 A 63 A STATE CA 6652 E-MOBILITY TEST ADAPTER The station is unpowered. Correct the fault in order to be able to continue the tests. The L1, L2 and L3 LEDs cannot be used to determine the phase order.
  • Page 9 C or D (measurement of loop impedance with voltage). ■ Connect the installation tester to the CA 6652 via the L1, L2, L3, and N or PE terminals. ■ Red wire to the phase (L1, L2 or L3).

  • Page 10: Insulation Measurement

    2.4.4. INSULATION MEASUREMENT This test must be performed with no voltage present. None of the LEDs on the CA 6652 must be lit. ■ Connect the L1, L2, L3, and N terminals together and perform an insulation measurement in relation to the PE conductor. For this, refer to the operating instructions of the multifunction tester.

  • Page 11: Verification Of The Charging Station Operation

    ■ Connect the PE terminal and the earth of the installation powering the charging station to the multifunction tester and make a continuity measurement. Refer to the operating instructions of the multifunction tester. Do not forget to reset the RCD at the end of the test. 2.5.

  • Page 12: Signal Verification

    STATE 20 A 13 A 32 A 63 A STATE CA 6652 E-MOBILITY TEST ADAPTER When the current load capacity switch (PP STATE) is set to N.C., the signals are shaped as follows: +12 V +9 V -12 V -12 V...

  • Page 13: Test Report

    When the mode switch (CP STATE) is set to C or D and the current load capacity switch (PP STATE) is not set to N.C., the signal uses pulse width modulation (PWM) to indicate the available charging current (13A, 20A, 32A or 63A). The signals then take the following forms: +6 V +6 V...

  • Page 14: Technical Specifications

    3.2. ELECTRICAL CHARACTERISTICS Type 2 connector: 32A, 3PH+N+PE, type E-2201, 200/346V-240/415V 3.3. POWER SUPPLY The CA 6652 is powered by the charging station being tested via the type 2 connector. 3.4. ENVIRONMENTAL CONDITIONS For indoor use or outdoor use without rain.

  • Page 15: Maintenance

    4. MAINTENANCE The instrument has no parts replaceable by personnel who are not trained and approved. Any unauthorized repair or re- placement of a part with an “equivalent” may seriously impair safety. 4.1. CLEANING Disconnect the unit completely. Use a soft cloth, dampened with soapy water. Rinse with a damp cloth and dry rapidly with a dry cloth or forced air. Do not use alcohol, solvents, or hydrocarbons.
  • Page 16 FRANCE INTERNATIONAL Chauvin Arnoux Chauvin Arnoux 12-16 rue Sarah Bernhardt Tél : +33 1 44 85 44 38 92600 Asnières-sur-Seine Fax : +33 1 46 27 95 69 Tél : +33 1 44 85 44 85 Our international contacts Fax : +33 1 46 27 73 89 info@chauvin-arnoux.com...
