USER MANUAL – EN

IN 26629 Indoor Bike inSPORTline inCondi S120i

SevenSport s.r.o. reserves the right to make any changes and improvements to its product without

prior notice. Visit our website www.insportline.eu where you will find the latest version of the manual.

Need help?

Do you have a question about the inCondi S120i and is the answer not in the manual?

Questions and answers

Summary of Contents for Insportline inCondi S120i

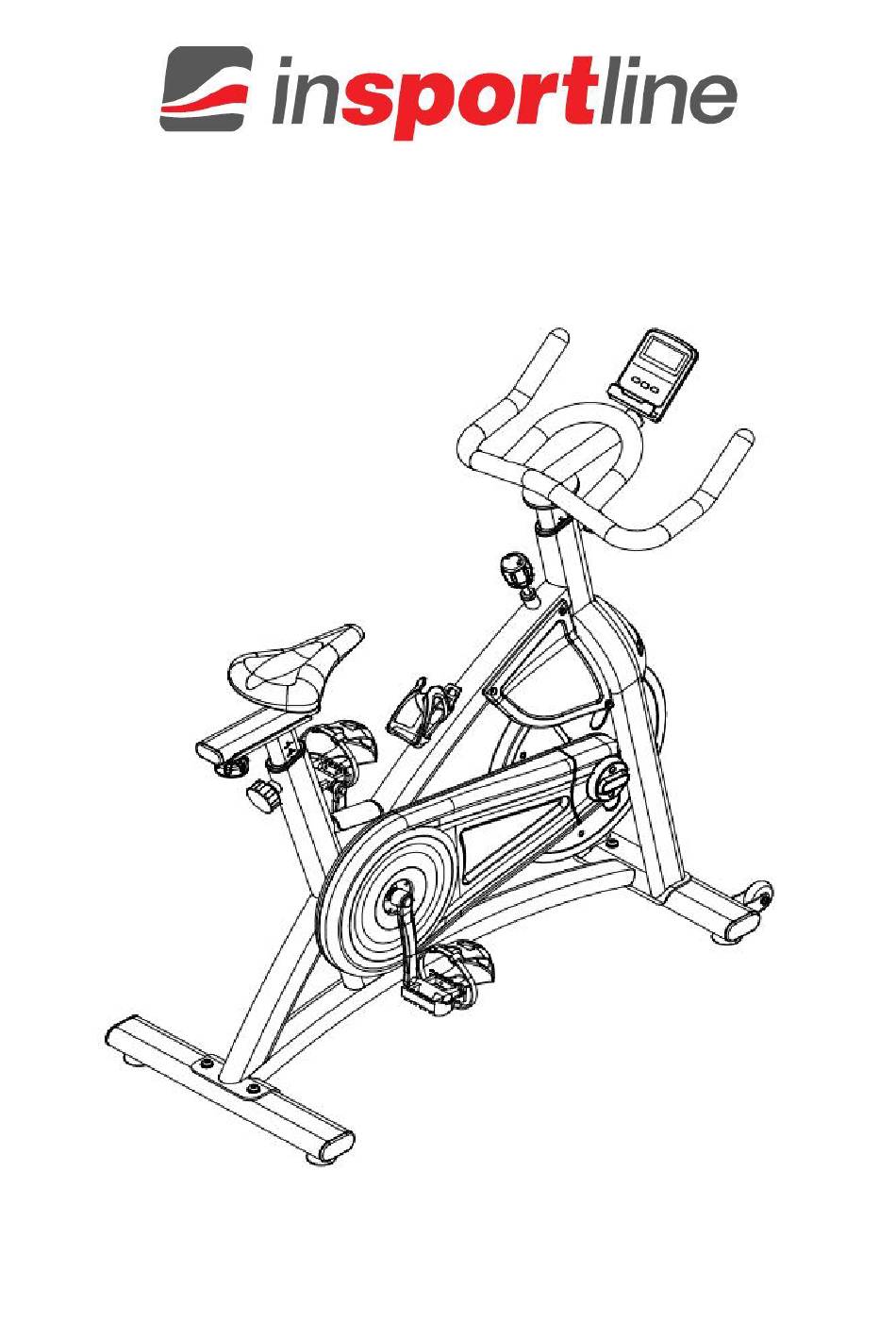

Page 1 USER MANUAL – EN IN 26629 Indoor Bike inSPORTline inCondi S120i SevenSport s.r.o. reserves the right to make any changes and improvements to its product without prior notice. Visit our website www.insportline.eu where you will find the latest version of the manual.
Page 2 CONTENTS SAFETY INSTRUCTIONS ........................3 ASSEMBLY ............................. 4 CONSOLE ............................. 10 USE ............................... 11 CORRECT BODY POSTURE ....................... 12 EXERCISE INSTRUCTIONS ........................ 12 MAINTENANCE ............................ 13 STORAGE ............................. 13 IMPORTANT NOTICE ........................... 13 PARTS LIST ............................14 DIAGRAM .............................. 16 ENVIRONMENT PROTECTION ......................
Page 3 SAFETY INSTRUCTIONS • To ensure the best safety of the exerciser, regularly check it on damages and worn parts. • If you pass on this exerciser to another person or if you allow another person to use it, make sure that that person is familiar with the content and instructions in these instructions. •...
Page 4 • Be sure to set up the exerciser in a dry and even place and always protect it from humidity. If you wish to protect the place particularly against pressure points, contamination, etc., it is recommended to put a suitable, non-slip mat under the exerciser. •...
Page 5 M10*60 M8*15 M5*25 φ20*φ10.5*2.0 φ8.4*φ13*2.5 φ8.5*φ16*1.5 φ5.4*φ12*1.0 101# S13-15-17...
Page 6 Step 1 Attach the front stabilizer (3) and rear stabilizer (2) to the main frame (1) with 4x M10*60 screws (66), 8x ¢10.5*20*2.0 flat washers (85), and 4x M10 nuts (92). Note: Tighten the screws Step 2 Connect the sensor cable from the handles (37) to the cable leading from the main frame (38).
Page 7 Step 3 Pass the sensor cable (37) through the console holder (91), then attach the console holder (91) to the handles (8) with 2x M5*25 screws (41) and 2x φ5.2*12*1.0 washers (90) Step 4 Attach the console (40) to the console holder (91) with 2x M5*10 screws (100) Connect the sensor cable (37) to the cable leading from the console (40a).
Page 8 Step 5 Attach the right (16R) and left (16L) pedals to the right (20) and left (19) cranks. Tighten with wrench (96) Step 6 Check the fastening of all parts and adjust the desired height and position of the seat. Adjust the height of the handrails Adjusting the height and position of the seat To adjust the seat height, loosen the seat post hand knob (18) and move the seat post to the desired...
Page 9 To adjust the seat position, loosen the hand knob under the seat (21) and move the seat to the desired position. Then tighten the hand knob again. Do not exceed the mark. Adjusting the height of the handrails Adjust the height of the handrails by loosening the knob on the handrail frame (18), after adjusting the height, tighten the knob again.
Page 10 CONSOLE Startup By moving the pedals or pressing any button, the trainer starts. Shutdown After 4 minutes of inactivity, the console automatically switches to sleep mode. You can wake up the console by pressing any button or moving the pedals. Power supply The console is powered by 2x AAA batteries.
Page 11 The console contains 3 countdown programs: time, distance, calories. Time countdown Press the MODE button to select TIME. Then press the SET button to adjust the value. Confirm the value by pressing MODE. Setting range: 00:00 – 99:00 min:seconds. Distance countdown Press the MODE button to select DISTANCE.
Page 12 Bicycle exercise is an effective exercise for all busy people. Exercise on the indoor bike is effective in strengthening muscles, especially thighs, calves and buttocks. Regular exercise can lead to a slimmer figure. Exercise is recommended not only as a winter training for cyclists but also for people who want to burn excess calories.
Page 13 Then let the muscles calm down by reducing the pace for approx. 5 min. Then do the warm-up exercises. Train regularly at least 3 times a week. MAINTENANCE • When assembling, tighten all screws and adjust the bike to the horizontal position. •...
Page 14 PARTS LIST Name Qty. Name Qty. Main Frame Flywheel Axle Rear Stabilizer tube Flywheel Bushing12*28*61.5 Front Stabilizer tube Flywheel Bushing15*28*33.5 Seat Post Tube Flywheel base Horizontal Seat Post Tube Flywheel 14KG Upright Post Tube Bearing 6001ZZ Screw Nut Plate Bearing 6004 Washer φ20.1*φ28.6*6 Handlebar Flywheel plastic cover...
Page 15 Crank Cap Locking Nut M6 Flat Washer φ10.5*20*2.0 Left Housing Flat Washer φ8.5*16*1.5 Knob Cap Flat Washer φ4.5*12*1 Knob Cover Spring Washer φ8.5*13*2.5 Knob Base Plastic Flat Washer φ8.5*16*2 Cap of Horizontal Seat Post Tube Flat Washer φ5.5*12*1 Stabilizer Cap Monitor Fixed Seat Belt PJ1473 Brake Post...
Page 16 DIAGRAM ENVIRONMENT PROTECTION After the product lifespan expired or if the possible repairing is uneconomic, dispose it according to the local laws and environmentally friendly in the nearest scrapyard. By proper disposal you will protect the environment and natural sources. Moreover, you can help protect human health.
Page 17 TERMS AND CONDITIONS OF WARRANTY, WARRANTY CLAIMS General Conditions of Warranty and Definition of Terms All Warranty Conditions stated here under determine Warranty Coverage and Warranty Claim Procedure. Conditions of Warranty and Warranty Claims are governed by Act No. 89/2012 Coll. Civil Code, and Act No.
Page 18 Seller is obliged to provide the Buyer with a financial compensation in the form of a refund. SEVEN SPORT s.r.o. Stores inSPORTline SK, s.r.o. Strakonická 1151/2c, Praha 5, 150 00, ČR Headquaters, warranty & service center: Električná 6471, Registered Office: Dělnická...
