Summary of Contents for Insportline IN 4526 ZEUS

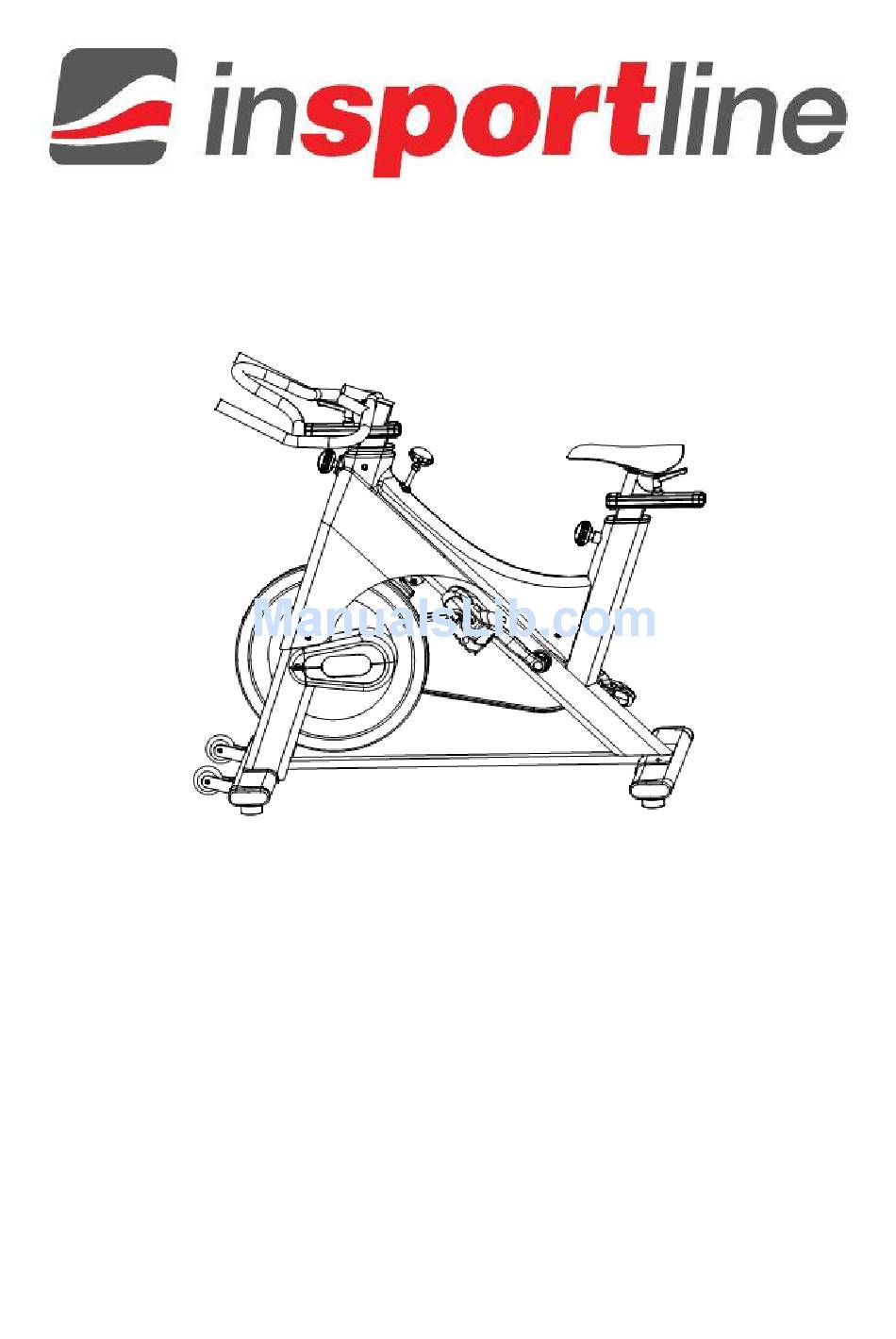

- Page 1 User Manual - EN IN 4526 Bike inSPORTline ZEUS (SB-530)
- Page 2 Safety information Important! 1. Class - HC (according to EN ISO 20957) for home use. 2. User weight should not exceed 110. 3. This training apparatus is intended for the standard and commonly practiced art of bike riding only. Anything other than this is inappropriate In order to prevent accidents and or injury, please read and follow these simple rules: Do not allow children to platy in the area of this device, it is not a toy.
- Page 3 Scheme...
-
Page 4: Spring Washer
Part list NO. DESCRIPTION SPECIFICATION Q'TY MAIN FRAME REAR STABILIZER 40*97*2.0*498 REAR STABILIZER CAP 40*97 ABS ROUND FOOT M10*45*50 HEX HEAD BOLT M10*60 WASHER 10*26*2 WASHER 10*26*2 NUT CAP FRONT STABILIZER 40*97*2.0*498 Φ58*20 PU WHEEL BOLT 8*30*M6 BOLT M6*12 PULLEY AXLE 25*124 Φ210 PULLEY... - Page 5 BOLT M8*20 BUSHING FOR SEAT TUBE 8*92 HANDLEBAR BUSHING 36*93*259 UPPER UPRIGHT POST 30*60*1 BOLT M5*9 ADJUSTABLE KNOB SEAT POST 30*60*1.8*280 BIKE 左709*261 CHAIN COVER L CHAIN COVER R BIKE右715*269 FRONT CAP 248*138 ABS PROTECT CAP 53.5*118/TPR BOLT 5*16 WASHER 5*10 WASHER 6*12...
- Page 6 WASHER 14*20*0.5 SEAT VL3125 ROLL 3.2*3.2*199 SPRING 10*10*1.0 BRAKE KNOB 10*26*1.5 不銹鋼 WASHER...
- Page 7 Parts: Hex head bolt 10*60 (5) Nut cap M10 (8) Flat washer 10*26*2 (7) Plastic washer 10*26*2 (6) Adjustable knob (60) 19 # X17# Screw Driver 14# X15# Screw Driver M3 Allen wrench...
- Page 8 Seat (88) Handle bar (45) Seat post (50) Upright post (47) Main frame (1) Rear stabil i zer (2) Steel plate (84) Front stabilizer (9) Pedal (26&28)
- Page 9 step1. Attached the stabilizer (9&2) to the main frame(1).through the steel plate (84).and fixed with hex head bolt (5).washer(7) .plastic washer(6)& nut cap(8).by screw driver. 19# X17# Screw Driver-2 pcs...
- Page 10 step 2. Loosen the adjustable knob(49),a nd insert the upright post(47) and seat post (50) into main fra me(1),then fixed tightly the adjustable knob(49).
- Page 11 step 3. Attach the pedal (26&28) to the crank (23).and fixed seat(88) to the seat adjust tuble (63).with screw driver 14# X15# Screw Driver...
- Page 12 step 4. Attach the handlebar (45).to the upright post(47).and fixed with plastic cap (39),bolt (43)& adju stable knob(60). M3 Allen wrench...
-
Page 13: Terms And Conditions Of Warranty, Warranty Claims
TERMS AND CONDITIONS OF WARRANTY, WARRANTY CLAIMS General Conditions of Warranty and Definition of Terms All Warranty Conditions stated hereunder determine Warranty Coverage and Warranty Claim Procedure. Conditions of Warranty and Warranty Claims are governed by Act No. 40/1964 Coll. Civil Code, Act No. 513/1991 Coll., Commercial Code, and Act No. - Page 14 The Buyer is obliged to check the Goods delivered by the Seller immediately after taking the responsibility for the Goods and its damages, i.e. immediately after its delivery. The Buyer must check the Goods so that he discovers all the defects that can be discovered by such check. When making a Warranty Claim the Buyer is obliged, on request of the Seller, to prove the purchase and validity of the claim by the Invoice or Bill of Delivery that includes the product’s serial number, or eventually by the documents without the serial number.
- Page 15 Date of Sale: Stamp and Signature of Seller:...
