the software user interface (see
prompt (see Figure 7) reflect the default values (see the
ADATE320 data sheet for more information). If the user
interface and the command prompt do not reflect the default
values, perform the following steps:
1. Close the ADATE320 Evaluation Board Software.
2. Disconnect the USB cable.
3. Turn off the power supply.
4. Activate the power supply again.
5. Reconnect the USB cable.
6. Open the ADATE320 Evaluation Board Software,
click the Reset Part button, and then click the Read
all Regs button again to confirm that the user interface
(see Figure 6) and command prompt (see
reflect the default values of the registers.

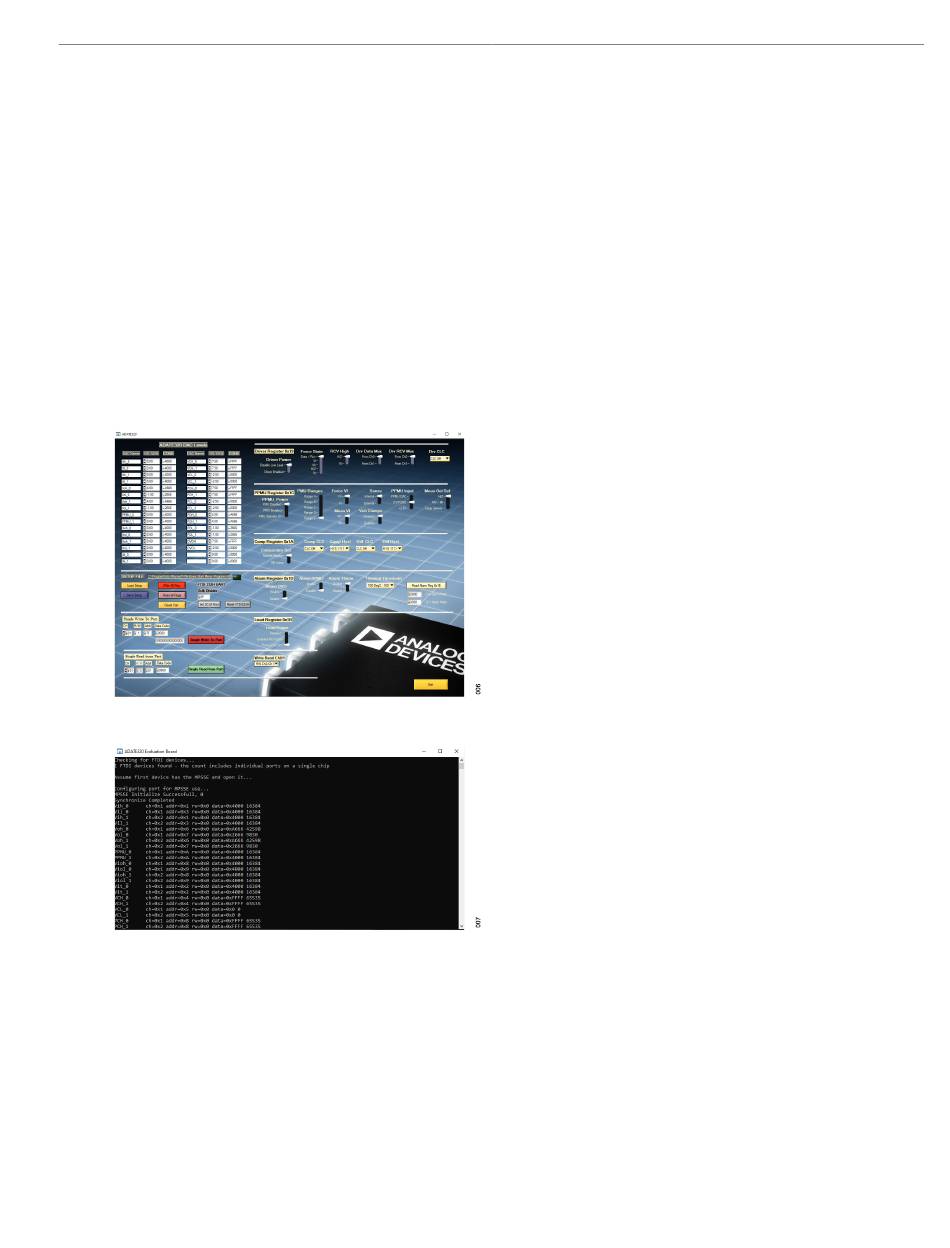

Figure 6. User Interface Default Values
Figure 7. Command Prompt Default Values
