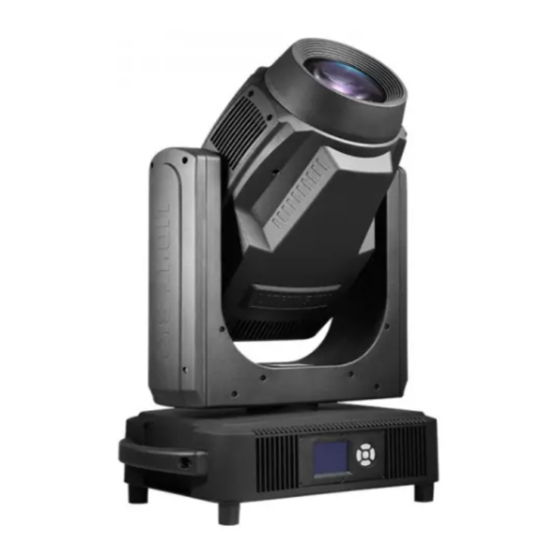

- Page 1 E-mail: SUPER SCOPE Address: No. 43, Yunfeng Road, Xiuquan Street, Huadu District, Guangzhou, China Please read these user manual carefully before use!
-
Page 2: Table Of Contents
Contents 1. Safety information......................2 2. Technical information....................4 Attachment and body size..................8 4. Installation and connecting..................9 5. Control panel......................12 6. Menu setting.......................13 7. Channel function......................18 8. Circuit connecting diagram..................24 9. Cleaning and maintenances..................25 10.Troubeshooting......................26 11.Duty exonerative and copyright protection............28 Congratulations on choosing our company product! We thank you for your custom. ◆Please note that this product, as all the others in the rich my company range, has been designed and made with total quality to ensure excellent performance and best meet your expectations and requirements. -
Page 3: Safety Information
■This lighting fixture is for professional use only - it is not for household use. Make sure all parts for fixing the projector are in a good state of repair. Make sure the point of anchorage is stable before positioning the projector. The safety chain must be prgperly hooked onto the fitting and secured to the framework. - Page 4 80℃ The maximun temperature that can be reached on the external surface of the fitting, in a thermally steady state,is 80℃。 Avoid contact bypersons and materials. Allow the fixture to cool for at least 15 minutes before handling. Light The light source in this fixture shall be replaced by the manufacturer or its service agent or similar qualification.
-
Page 5: Technical Information
●Focus and Lens ● ： Power supplies available - φ127High precision optical lens, linear adjustment AC100-240V∽，50/60Hz ● X/Y Travel： 190-240V/4.5A; 100-125V/8.5A Pan movement 540°，Tilt movement 270° ● Rated power ： ● X/Y Resolution：2.11°/1.05° 910W PF 0.980 ● X/Y Speed：2.7S/2.1S ● Light source - 580W white light LED module ●... - Page 6 Rotating gobo wheel Static gobo wheel Color wheel CMY color mixing system...
- Page 7 16 double Prism 4 Prism Framing Shutters System Blade LF 1 Blade UP 2 Blade DW 1 Blade LF 2 Blade RG 1 Blade RG 2 Blade DW 1 Blade UP 2 Blade LF 2 Blade UP 1 Blade LF 1 Blade DW 2 90°...
- Page 8 distance, spot diameter and illumination diagram ( ° Standard 6 - 50°) 50 highlights 1970(183) 512(48) 206(19) 132(12) 58(5) 37(3) 23(2) 6 highlights 60500(5623) 15000(1394) 6520(606) 3750(349) 2650(153) 1918(178) 580(54) Distance m 0.55(1'10'') 2.10(6'11'') 3.23(10'7'') 4.3(14'1'') 5.0(61'4'' ) 6 diameter m(ft in) 1.05(3'5'') 1.58(5'2'') 50 diameter m(ft in)
-
Page 9: Attachment And Body Size
power cord 141.4 281.23 207.28 397.03 323.22... -
Page 10: Installation And Connecting
Safety rope Compact,standard clamp system equipped & easy installation The fixture can be installed on the floor resting on special rubber feet, on a truss or on the ceiling or wall. WARNING:with the exception of when the fixture is positioned on the floor, the safety rope must be fitted. This must be securely fixed to the support structure of the fixture and then connected to the fixing point at the centre of the base. - Page 11 power in power end Ground The N terminal is connected with the blue line. The L terminal is connected with the brown line. Watertight seal ring Watertight seal ring The fixture delivers a three-core waterproof plug. ● The fixture power supply can not be more than 2pcs pre line. ●...
- Page 12 DMX512 in signal end DMX-input DMX - output 1 - Shield - Shield 2 - Signal (-) - Signal (-) - Signal (+) - Signal (+) - Not connected - Not connected - Not connected - Not connected...
-
Page 13: Control Panel
Up arrowhead:page up Down arrowhead:page down Left arrowhead:page left or reduce Display Right arrowhead:page right or increase Enter:OK function Exit:in the choice screen ENTER DMX Set up the （* **—* * *） Display Address code Channel model：standard（39CH） The channel model The light source temperature：**°... -
Page 14: Menu Setting
LED on time Fixture times → All time Temperatures LED TEMP → Base TEMP UID:0x3888XXXXXX RDM info → Manufactory Label：LIGHT SKY Device Label：SUPER SCOPE 1.Pan 2.Pan fine 3.Tilt 4.Tilt Fine 5.P/T speed 6.Functions 7.Cyan 8.Cyan fine 9.Magenta 10.Magenta fine 11.Yellow 12.Yellow fine... - Page 15 Ⅳ menu Main menu I menu II menu III menu 54.Dimmer fine Display Pan/Tilt Gobo module Version info Framing module VX.XXX Zoom module LEDDRV FANDRV PT swap Pan/Tilt → Pan invert → Tilt invert PT move black Silent mode Fan mode →...
- Page 16 Ⅳ menu Main menu I menu II menu III menu 38.Framing Mac.Z. 39.Prism1 40.Prism1 Rot 41.Prism2 42.Prism2 Rot. 43.Frost 44.Frost 45.Iris 46.Zoom 47.Zoom fine 48.Focus 49.Focus fine 50.Auto Dis 51.Auto Fin 52.Strobe 53.Dimmer 54.Dimmer fine Pan/Tilt reset Color reset Gobo reset Reset →...
- Page 17 Ⅳ menu Main menu I menu II menu III menu Rota.gobo Gobo.rota Zoom Focus Prism 1 Prism 2 Framing Framing rota LED fan 1 LED fan 2 Fan speed LED fan 3 LED fan 4 GOBO fan Tilt Cyan Magenta Yellow Colour wheel Fixation wheel...
- Page 18 Ⅳ menu Main menu I menu II menu III menu Reset power on timers Password Reset led timers YES / NO Reset timers → → Reset all timers Display Pan/Tilt / XY Gobo module Framing module Simple update → Zoom module LEDQD Factory →...
-
Page 19: Channel Function
CHANNEL FUNCTION(V1.0) 39CH Note Functions Percentage Channel 0 - 255 Pan fine 0 - 255 Tilt 0 - 255 Tilt Fine 0 - 255 P/T speed 0 - 255 0 - 10 NO function 11 - 20 The whole lamp reset 21 - 30 XY reset 31 - 40... - Page 20 Functions Note Percentage Channel Jitter slow to fast 150 - 159 GOBO6 160 - 169 GOBO7 Jitter slow to fast Jitter slow to fast 170 - 179 GOBO8 Jitter slow to fast 180 - 189 GOBO9 190 - 199 OPEN CW,Slow→Fast 200 - 224 225 - 249...
- Page 21 Note Percentage Functions Channel 0 - 127 0° - 360° 128 - 187 CW Fast→Slow Prism2 Rot. 188 - 195 STOP CCW Slow→Fast 196 - 255 0 - 127 Slow IN Fast OUT, Slow → Fast 128 - 159 Frost1 Fast IN Slow OUT, Slow →...
- Page 22 CHANNEL FUNCTION(V1.0) Note Percentage Functions Channel 0 - 255 Pan fine 0 - 255 Tilt 0 - 255 Tilt Fine 0 - 255 P/T speed 0 - 255 0 - 10 NO function 11 - 20 The whole lamp reset 21 - 30 XY reset 31 - 40...
- Page 23 Note Percentage Functions Channel 110 - 119 GOBO2 Jitter slow to fast 120 - 129 GOBO3 Jitter slow to fast 130 - 139 GOBO4 Jitter slow to fast 140 - 149 GOBO5 Jitter slow to fast 150 - 159 GOBO6 Jitter slow to fast Jitter slow to fast 160 - 169...
- Page 24 Note Functions Percentage Channel 51 - 60 sector semicircle 61 - 70 parallelogram 71 - 255 Framing Mac. Zoom 0 - 10 Prism off Prism1 11 - 255 Prism Cut-in 0 - 127 0° - 360° 128 - 187 CW Fast→Slow Prism1 Rot 188 - 195 STOP...
-
Page 26: Cleaning And Maintenances
CLEANING AND MAINTENANCES ■1.In order to ensure the fixture could work normally. It should be kept clean always . The lens should also be regularly cleaned to maintain an optimum light output. Do not use any type of solvent on lens. It will damage the fixture. ■2.Suggestion: The continue usage of the light don't exceed 4 hours. -
Page 27: Troubeshooting
TROUBESHOOTING It is recommended some solution for some normal trouble shooting. Any inextricability problems should always be handling by the professional person. Disconnect the power supply before maintenance the fixture. ■ LED off ： 1.Please check if install the suitable voltage 2.Please check whether the led will reach the end of their life can explode;... - Page 28 ■ The light beam dark,not inhomogeneou. ◎ when the light suore is to the usage life,the light suore is not enough,please change a new one for the same description. ◎ Please check the reflector parts is dirty.Keep them clear. ◎ Please measure if the power supply is enough. ◎...
-
Page 29: Duty Exonerative And Copyright Protection
◆The light source belongs to consumption products that is not guarantee to keep it in good repair.
