Icom IC-SAT100M Operating Manual page 4

1
PANEL DESCRIPTIONS

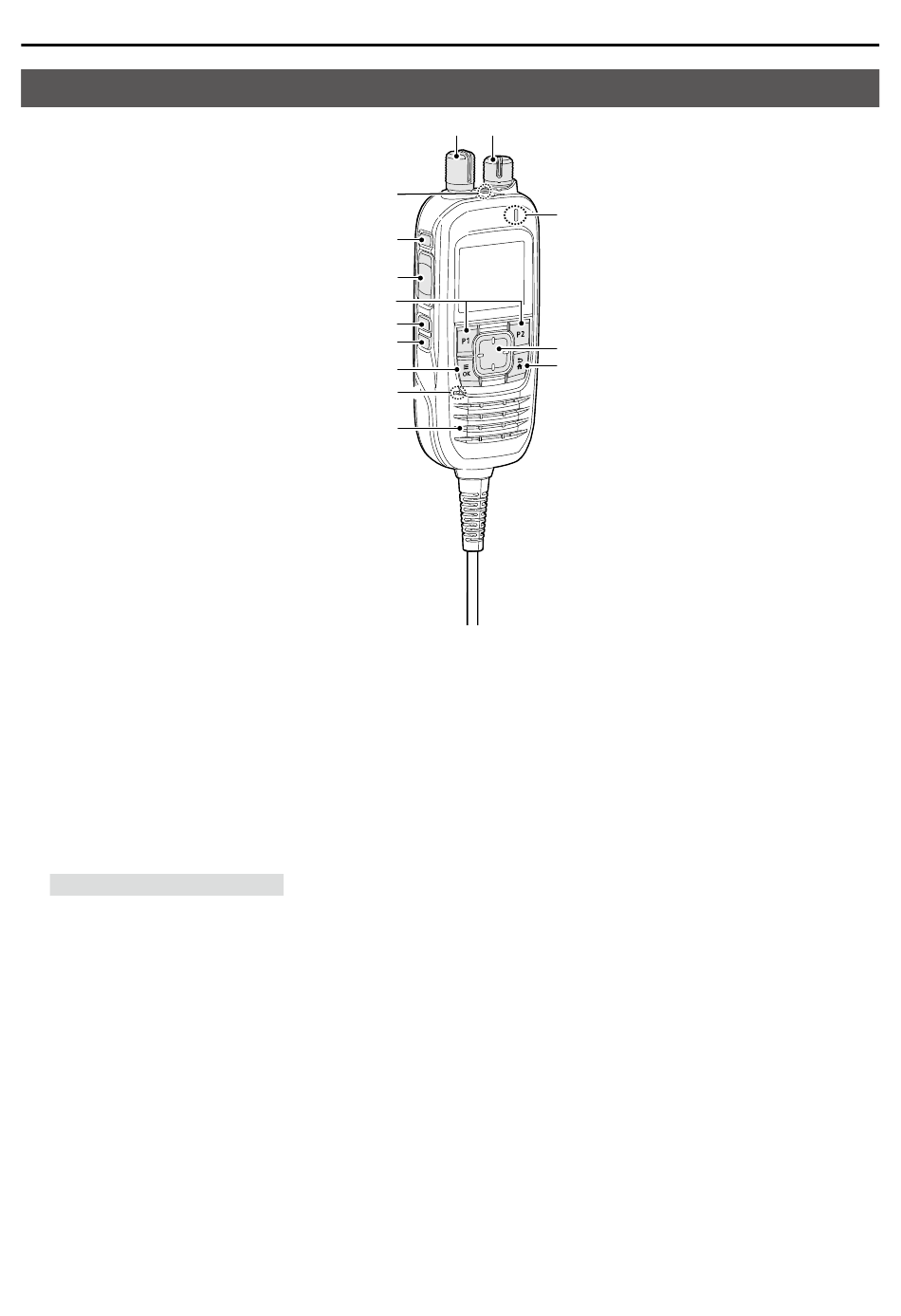

Microphone Description
1 EMERGENCY KEY [EMER]
Hold down to transmit an Emergency call.
2 SIDE 1 KEY [S1]
Push to display the Message List.
3 PTT SWITCH [PTT]
Hold down to transmit, release to receive.
4 P1/P2 KEYS [P1]/[P2]
Push to use the function assigned in the "Key
Setup" menu.
[OK] > Functions > Key Setup
5 SIDE 2 KEY [S2]
Hold down to turn the RX Speaker function ON or
OFF.
6 SIDE 3 KEY [S3]
Push to display the Public Address.
7 MENU/OK KEY [OK]
z Push to enter the Menu screen.
z Push to select an item in the Menu screen.
12 11
1
2
3
4
5
6
7
Microphone
Speaker
8 BACK/HOME KEY [BACK]
z Push to return to the previous Menu screen.
z Hold down to exit the Menu screen.
9 DIRECTIONAL KEY [UP]/[DOWN]/[LEFT]/[RIGHT]
Push to select a menu item, setting, and so on.
10 STATUS INDICATOR
z Lights green while receiving.
z Blinks green while in the "OPEN" status.
z Lights red while transmitting.
z Blinks orange while registering, or no satellites
11 VOLUME/POWER CONTROL [VOL]
z Hold down to turn the transceiver ON or OFF.
z Rotate to adjust the audio output level.
12 TALKGROUP SELECTOR
Rotate to select a talkgroup.
1
10
9
8
are found.
