CONNECTION AND INSTALLATION

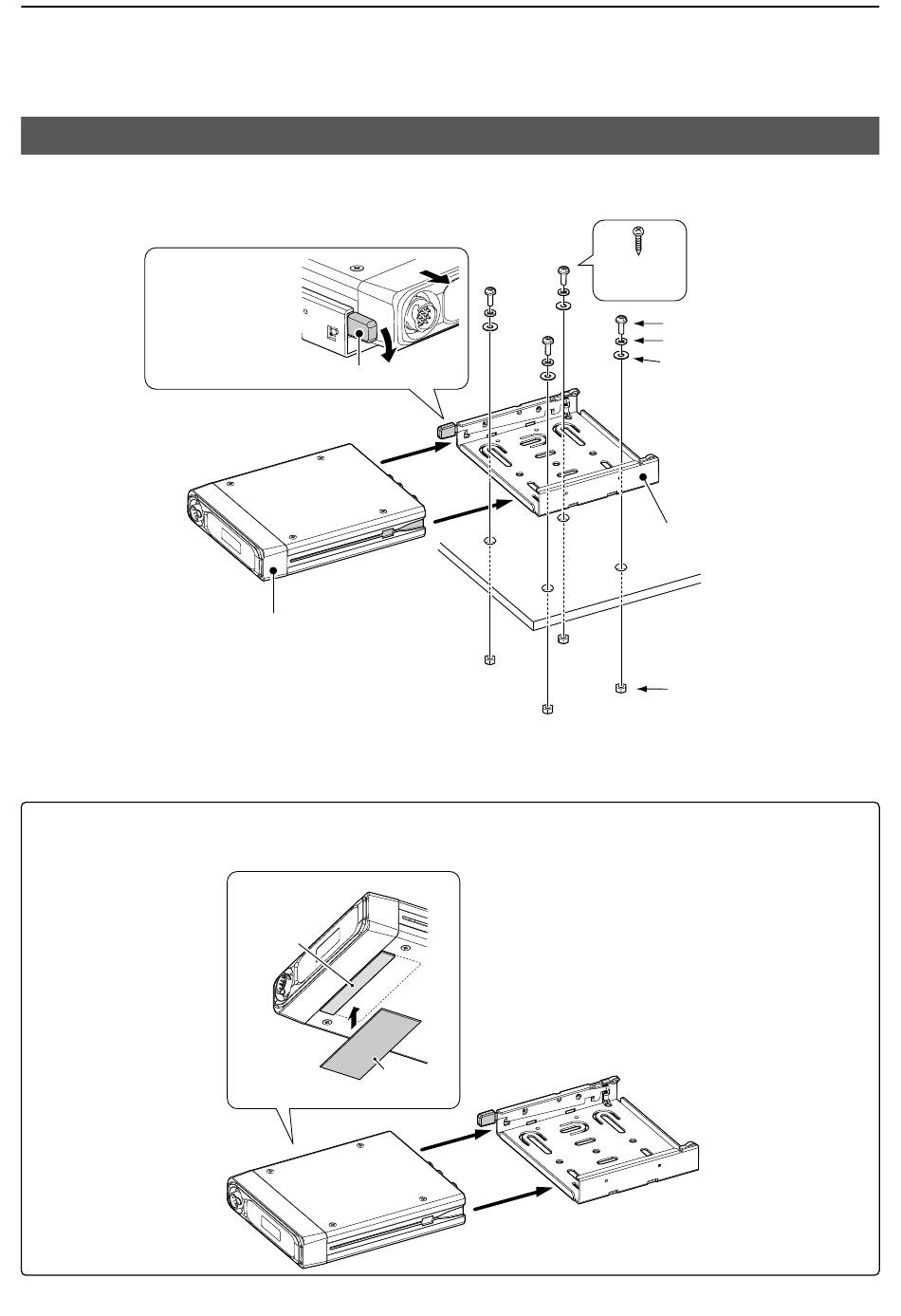

Mounting the transceiver
The universal mounting bracket supplied with your transceiver enables various mounting positions.
When removing,
slide the transceiver
towards you while
pushing the lever
down.
To reduce vibration, place the cushion on the transceiver and put the sheet on it.
L When mounting the bracket on the bottom side, attach the cushion and the sheet to the bottom of the transceiver.
Lever
IC-SAT100M
Sheet
Cushion
Self-tapping
screw
21
Mounting screw (M5)
Spring washer
Flat washer
Mounting bracket
Nut
