CONNECTION AND INSTALLATION

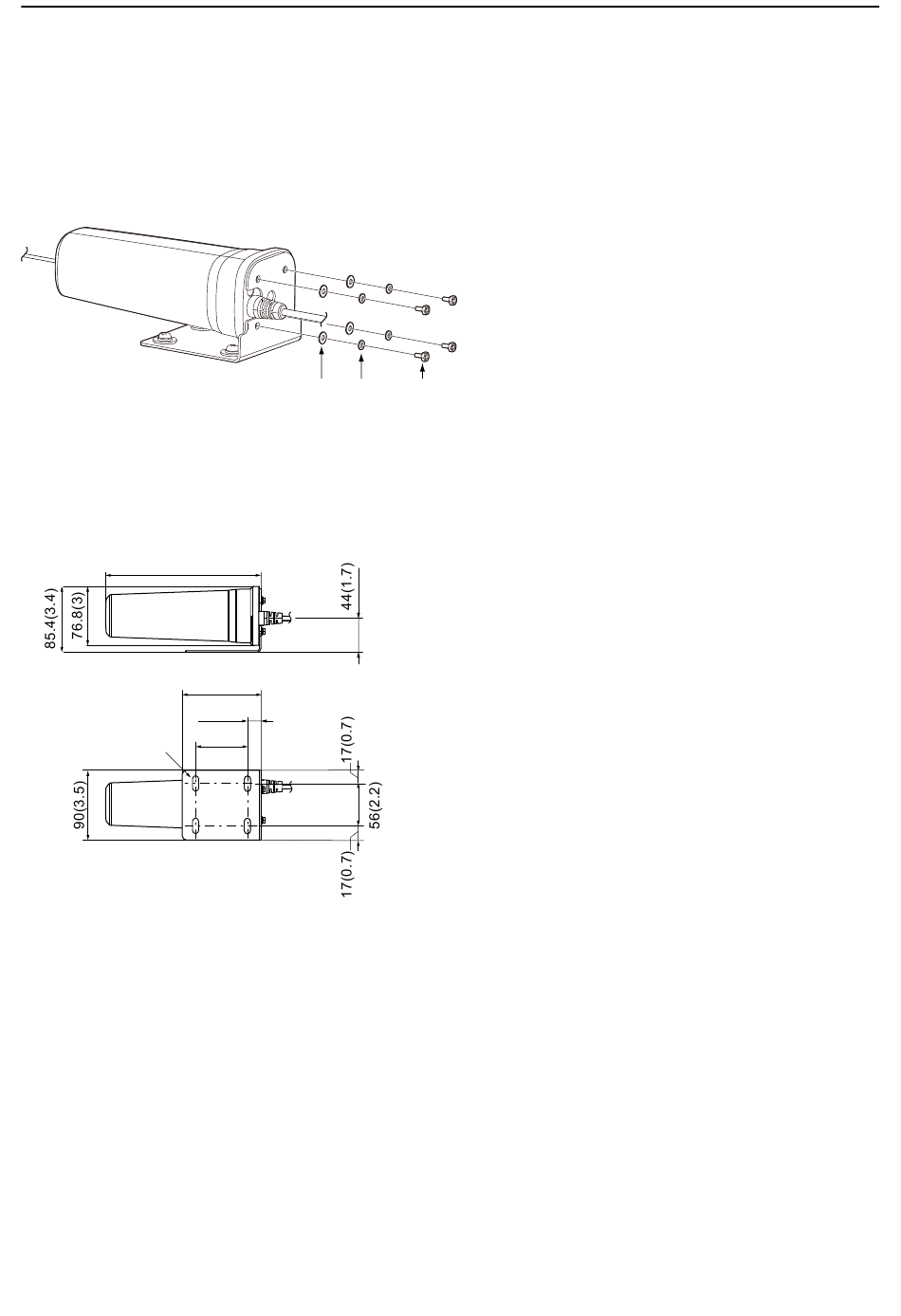

D Installation example for vehicle use
7. Mount the Antenna unit to the Angle bracket.
D Antenna unit dimensions for vehicle use
202.4(8)
4-8 (0.5 ⁄ 16) (d)
D AH-40 Specifications
• Frequency range:
• Antenna impedance:
• Operating temperature range: –40˚C ~ +85˚C,
• VSWR:
• Dimensions:
• Weight (approximate):
• Connector:
L All stated specifi cations are subject to change without notice or obligation.
Flat Spring
washer washer
unit: mm (inch)
102(4)
19(0.7)
68(2.7)
1616 ~ 1626.5 MHz
50 Ω nominal
–40˚F ~ +185˚F
2.0:1 (At the resonance point)
36 (d) × 52.3 (H) mm,
(1.4 (d) × 2.1 (H) inches)
55 g, 1.9 oz
SMA
Bolt
(M4×8)
