CONNECTION AND INSTALLATION
D Installation example for vehicle use

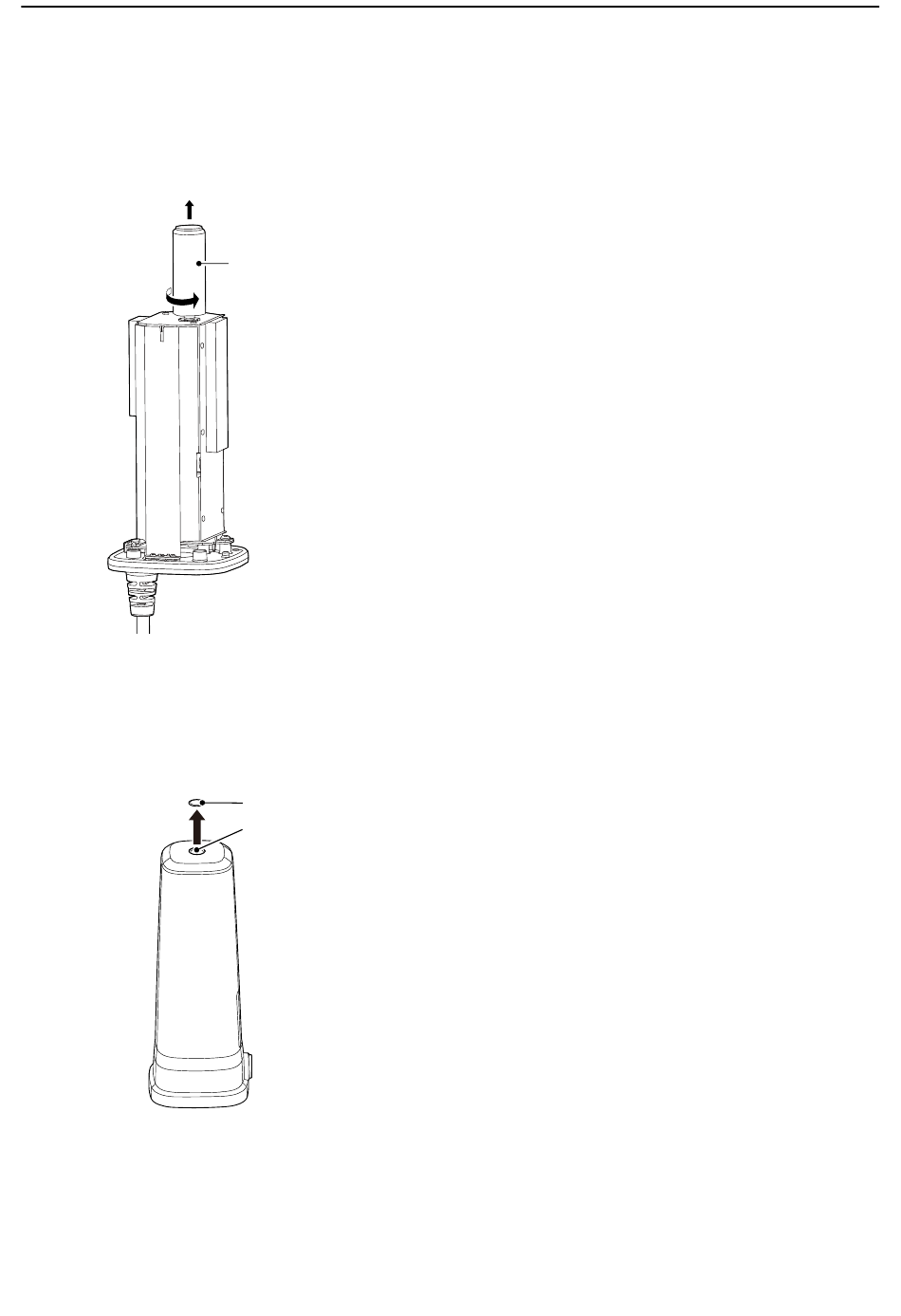

3. Remove the antenna element.
2
1
4. Remove the Polycarbonate cover on the top of the Antenna unit cover (1), and then make a hole in the
Antenna unit cover (2).
L Appropriate hole diameter:
10 mm, 0.39 inches
13 mm, 0.51 inches ( When using the OPC-2422)
1
Antenna element
(Keep in a safe place)
Polycarbonate cover
2
