CONNECTION AND INSTALLATION
D Connecting the Antenna unit and the LAN cable
• Connect the main unit and the supplied LAN cable (Length: approximately 20 m) as describe below.
L The supplied LAN cable is a Shielded Ethernet Cable, so that use the supplied cable to connect the units.
CAUTION: Be sure to ground the Antenna unit . Otherwise, the antenna circuit may be damaged by a lightning
strike or static electricity. Also, interference, RF feedback, and electrical shocks from other equipment could occur.
• You can also use a user supplied LAN cable (Category 5e or higher) up to 100 m.
• In addition to the grounding cable, using a lightning protection device (user supplied) for the LAN cable is
recommended.

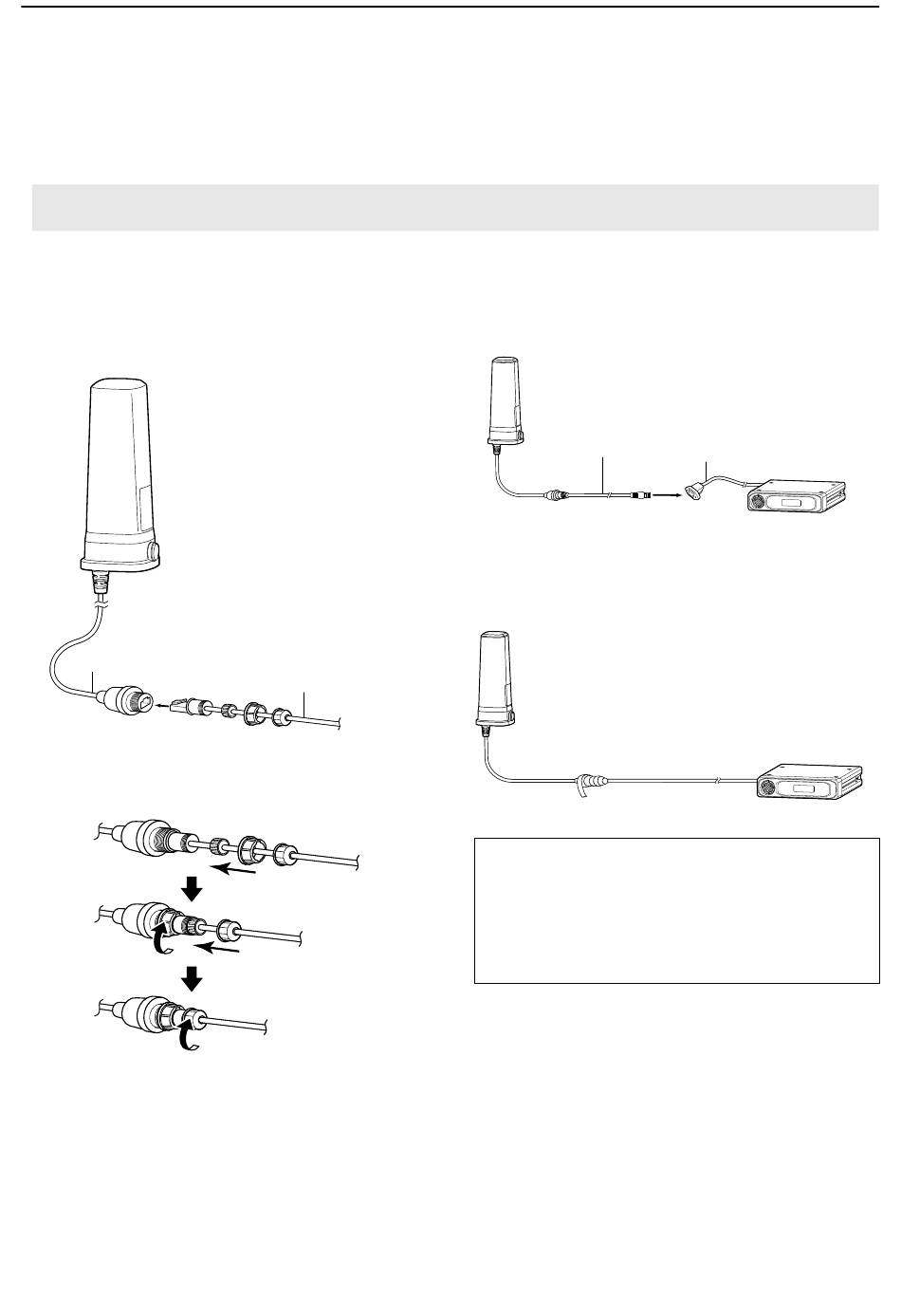

1. Remove the cover attached to the LAN cable.
2. Insert it into the antenna cable.
LAN cable with
Antenna unit
3. Attach the cover attached to the LAN cable as
shown.
Supplied LAN cable
4. Connect to the gray LAN cable with the main unit.
Supplied
LAN cable
L After connecting the Antenna cable and the LAN
cable, wrap the connectors with rubber vulcanizing
tape to help in waterproofing.
Information
L
If "Antenna Unit No Detect" is displayed on the
microphone screen, an antenna unit, whose serial
number is not registered on the main unit, is
connected.
Ask your dealer to re-register the serial number of
the antenna unit.
19
Gray LAN cable of
the main unit
