CONNECTION AND INSTALLATION

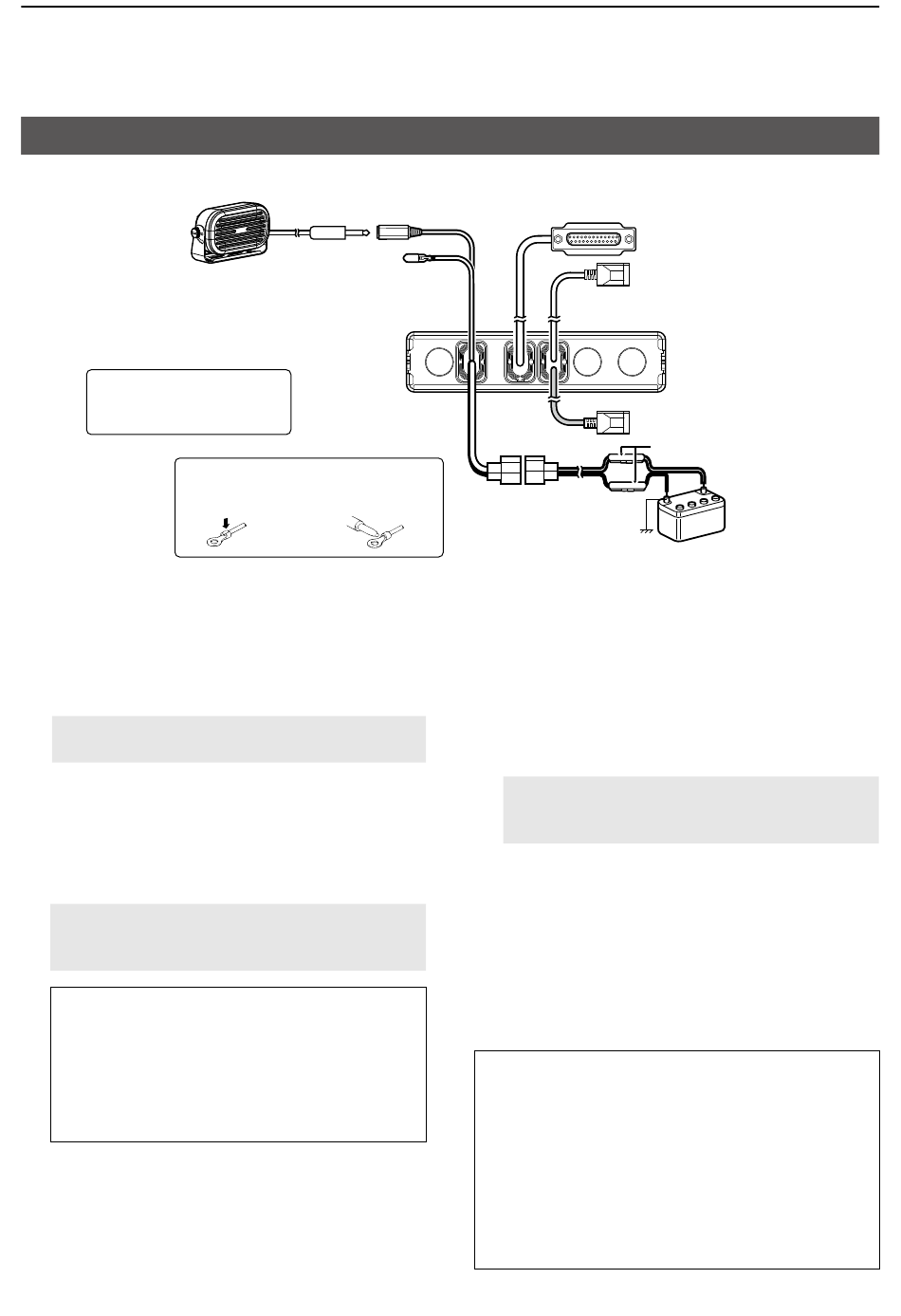

Rear panel connection
R WARNING! NEVER
remove the fuse holders
from the DC power cable.
NOTE: Use the terminals as shown
below for the cable connections.
1 EXTERNAL SPEAKER JACK
Connect a 4 Ω external speaker.
2 IGNITION LEAD
Connect to an ignition line.
CAUTION: DO NOT put pressure on this lead.
Binding to the DC power cable is recommended.
3 DC POWER CONNECTOR
Connect to a 12 V or 24 V DC battery.
Pay attention to polarities.
Red line: +, Black line:
L You can also connect the transceiver to an
outlet with the optional AC adapter.
CAUTION: DO NOT reverse the DC power cable
polarity when connecting to a power source. This
could damage the transceiver.
L Low Voltage beep function
The IC-SAT100M has the Low Voltage beep function
to prevent battery over-discharge.
When the battery voltage drops below 11 V or 10 V,
the Low Voltage beep 1 or 2 sounds every 3 seconds.
• The Low Voltage beep 1 ("Pi") sounds below 11 V.
• The Low Voltage beep 2 ("PiPi") sounds below 10 V.
1
2
Optional
speaker
Red:
Black: _
Crimp Solder
_
5 4
3 4
+,
4 LAN CABLE
(Gray: for antenna, Black: for IP Network)
Connect the supplied antenna or network devices
such as a HUB.
L External power supply output (Gray LAN Cable)
PoE output voltage: 54V
PoE output current: 0.6A
CAUTION: DO NOT connect other than network
devices, such as microphone. This could
damage the transceiver.
5 D-Sub 25-pin
Connect to use the function extension.
Ask your dealer for details.
L Information
When the transceiver is connected to network devices,
change the static IP address.
Before using the transceiver, enter a static IP address for
the Antenna unit and the main unit.
Ask your dealer for details.
Default
IP address:
Subnet Mask:
Default Gateway:
20
Fuse holders
12 V or 24 V Battery
192.168.0.1 (Main unit )
192.168.0.2 (Antenna unit)
255.255.255.0
192.168.0.254
