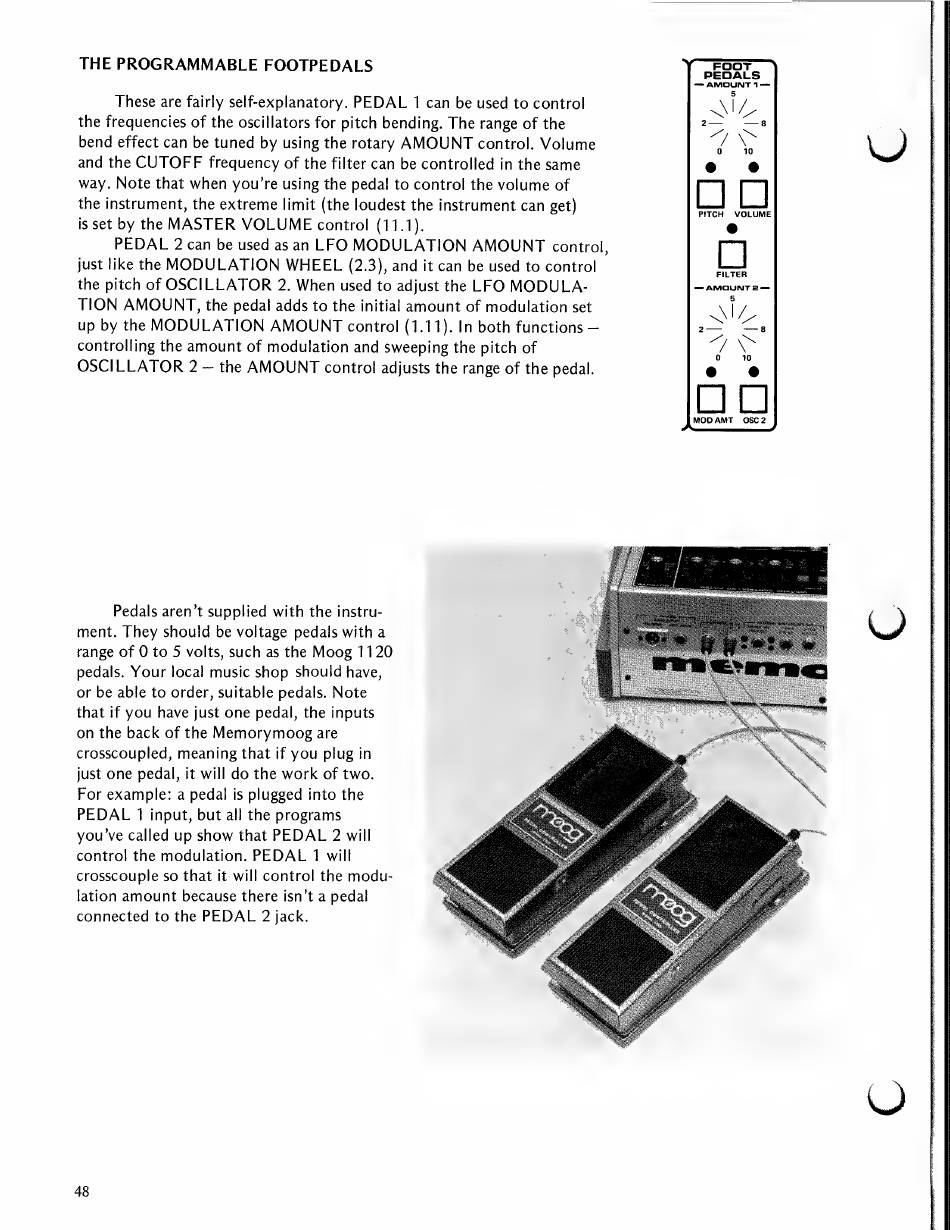

Pedals aren't supplied with the instru-
ment. They should be voltage pedals with a
range of 0 to 5 volts, such as the Moog 1120
pedals. Your local music shop should have,
or be able to order, suitable pedals. Note
that if you have just one pedal, the inputs
on the back of the Memorymoog are
crosscoupled, meaning that if you plug in
just one pedal, it will do the work of two.
For example: a pedal is plugged into the
PEDAL 1 input, but all the programs
you've called up show that PEDAL 2 will
control the modulation. PEDAL 1 will
crosscouple so that it will control the modu-
'lation amount because there isn't a pedal
connected to the PEDAL 2 jack.
