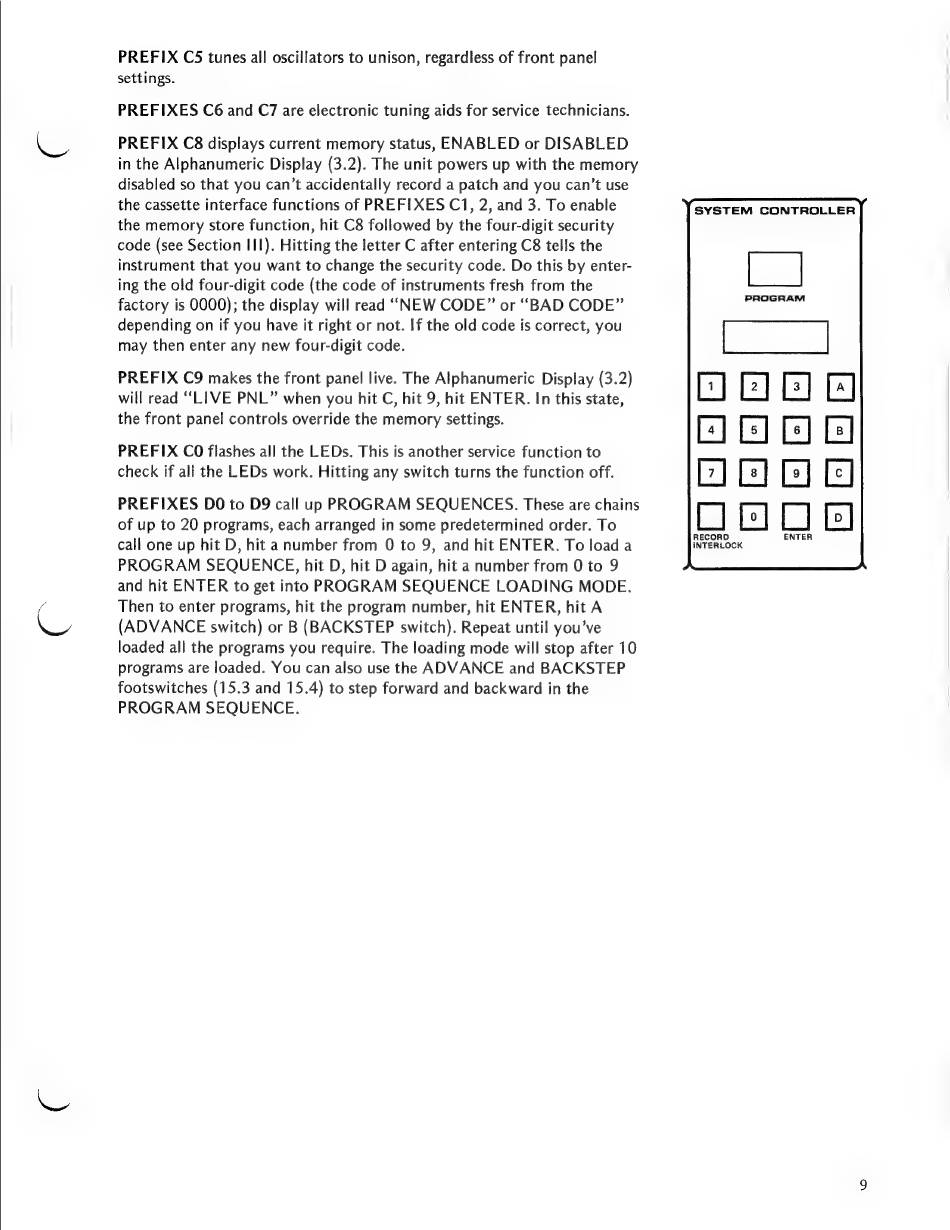

PREFIX C5 tunes all oscillators to unison, regardless of front panel
settings.
PREFIXES C6 and C7 are electronic tuning aids for service technicians.
PREFIX C8 displays current memory status, ENABLED or DISABLED
in the Alphanumeric Display (3.2). The unit powers up with the memory
disabled so that you can't accidentally record a patch and you can't use
the cassette interface functions of PREFIXES C1, 2, and 3. To enable
the memory store function, hit C8 followed by the four-digit security
code (see Section III). Hitting the letter C after entering C8 tells the
instrument that you want to change the security code. Do this by enter-
ing the old four-digit code (the code of instruments fresh from the
factory is 0000); the display will read "NEW CODE" or "BAD CODE"
depending on if you have it right or not. If the old code is correct, you
may then enter any new four-digit code.
PREFIX C9 makes the front panel live. The Alphanumeric Display (3.2)
will read "LIVE PNL" when you hit C, hit 9, hit ENTER. In this state,
the front panel controls override the memory settings.
PREFIX CO flashes all the LEDs. This is another service function to
check if all the LEDs work. Hitting any switch turns the function off.
PREFIXES DO to D9 call up PROGRAM SEQUENCES. These are chains
of up to 20 programs, each arranged in some predetermined order. To
call one up hit D, hit a number from 0 to 9, and hit ENTER. To load a
PROGRAM SEQUENCE, hit D, hit D again, hit a number from 0 to 9
and hit ENTER to get into PROGRAM SEQUENCE LOADING MODE.
Then to enter programs, hit the program number, hit ENTER, hit A
(ADVANCE switch) or B (BACKSTEP switch). Repeat until you've
loaded all the programs you require. The loading mode will stop after 10
programs are loaded. You can also use the ADVANCE and BACKSTEP
footswitches (15.3 and 15.4) to step forward and backward in the
PROGRAM SEQUENCE.
SYSTEM CONTROLLER
[|
PROGRAM
i
LIE) GI
LG) Ge)
Bjoio
C]
[2]
RECORD ENTER
INTERLOCK
