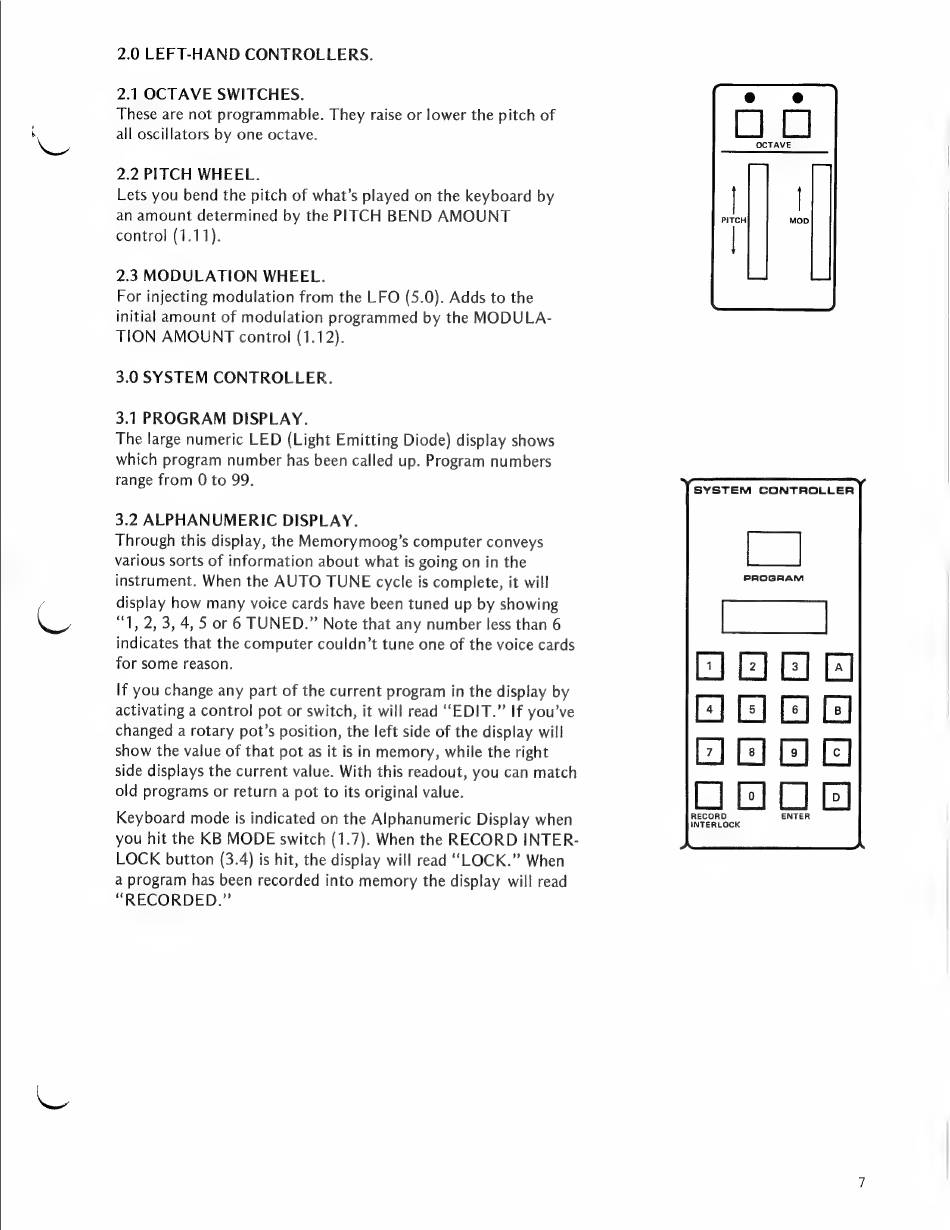

2.0 LEFT-HAND CONTROLLERS.
2.1 OCTAVE SWITCHES.
These are not programmable. They raise or lower the pitch of
all oscillators by one octave.
2.2 PITCH WHEEL.
Lets you bend the pitch of what's played on the keyboard by
an amount determined by the PITCH BEND AMOUNT
control (1.11).
2.3 MODULATION WHEEL.
For injecting modulation from the LFO (5.0). Adds to the
initial amount of modulation programmed by the MODULA-
TION AMOUNT control (1.12).
3.0 SYSTEM CONTROLLER.
3.1 PROGRAM DISPLAY.
The large numeric LED (Light Emitting Diode) display shows
which program number has been called up. Program numbers
3.2 ALPHANUMERIC DISPLAY.
display how many voice cards have been tuned up by showing
If you change any part of the current program in the display by
activating a control pot or switch, it will read "EDIT." If you've
changed a rotary pot's position, the left side of the display will
show the value of that pot as it is in memory, while the right
side displays the current value. With this readout, you can match
old programs or return a pot to its original value.
Ae EI
Eo
EE) &
Co} LI Le)
RECORD
Keyboard mode is indicated on the Alphanumeric Display when INTERLOCK ane
you hit the KB MODE switch (1.7). When the RECORD INTER-
LOCK button (3.4) is hit, the display will read "LOCK." When
a program has been recorded into memory the display will read
"RECORDED."
