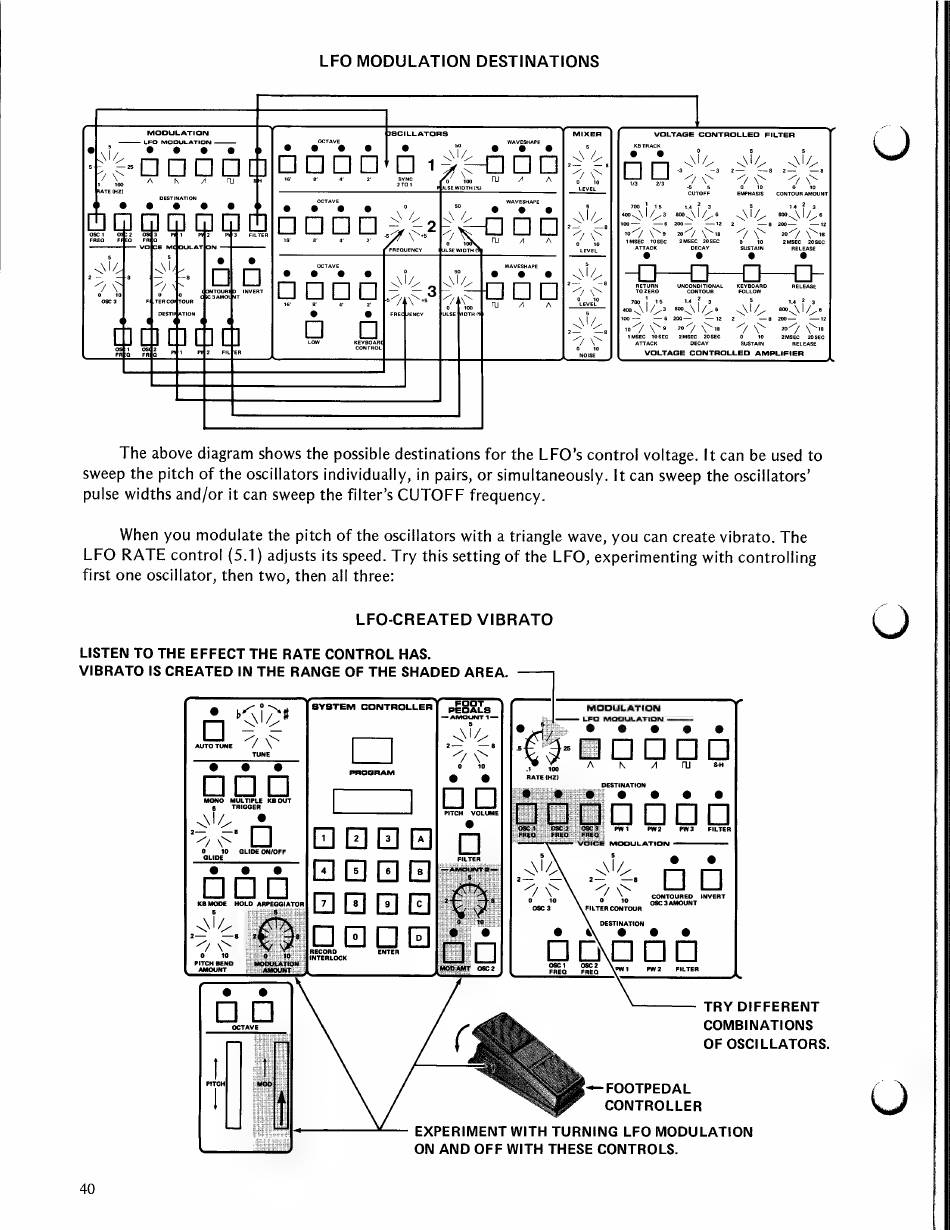

LFO MODULATION DESTINATIONS
MODULATION pSCILLATORS VOLTAGE CONTROLLED FILTER
LFO MODULATION
e
Aaa
See, Ae Me.
LI] 4 aw a
U3 23
Curore EMPHASIS CONTOUR AMOUNT
700 [7 1473 5 14 i a
foo \1/-3 00. [7 MAILS
100 6 2 2 2 2
077 VN PN 207/ \ 18
IMSEC 10SEC 2MSEC 20SEC
ATTACK
RETURN UNCONDITIONAL = KEYBOARD RELEASE
TOZERO CONTOUR FOLLOW
700) 18 14 7 3 5 4 2 3
Alf wo\|/ 26 ao \ 1/6
100 8 200. 12
077 De 20 ty Nor 20 Yue
IMSEC 10SEC 2MSEC 20SEC 2MSEC 20SEC
ATTACK DECAY SUSTAIN RELEASE
VOLTAGE CONTROLLED AMPLIFIER
The above diagram shows the possible destinations for the LFO's control voltage. It can be used to
sweep the pitch of the oscillators individually, in pairs, or simultaneously. It can sweep the oscillators'
pulse widths and/or it can sweep the filter's CUTOFF frequency.
When you modulate the pitch of the oscillators with a triangle wave, you can create vibrato. The
LFO RATE control (5.1) adjusts its speed. Try this setting of the LFO, experimenting with controlling
first one oscillator, then two, then all three:
LFO-CREATED VIBRATO
LISTEN TO THE EFFECT THE RATE CONTROL HAS.
VIBRATO IS CREATED IN THE RANGE OF THE SHADED AREA.
MODULATION
LFO MODULATION ———.
TRY DIFFERENT
COMBINATIONS
OF OSCILLATORS.
+ FOOTPEDAL
CONTROLLER
EXPERIMENT WITH TURNING LFO MODULATION
ON AND OFF WITH THESE CONTROLS.
40
