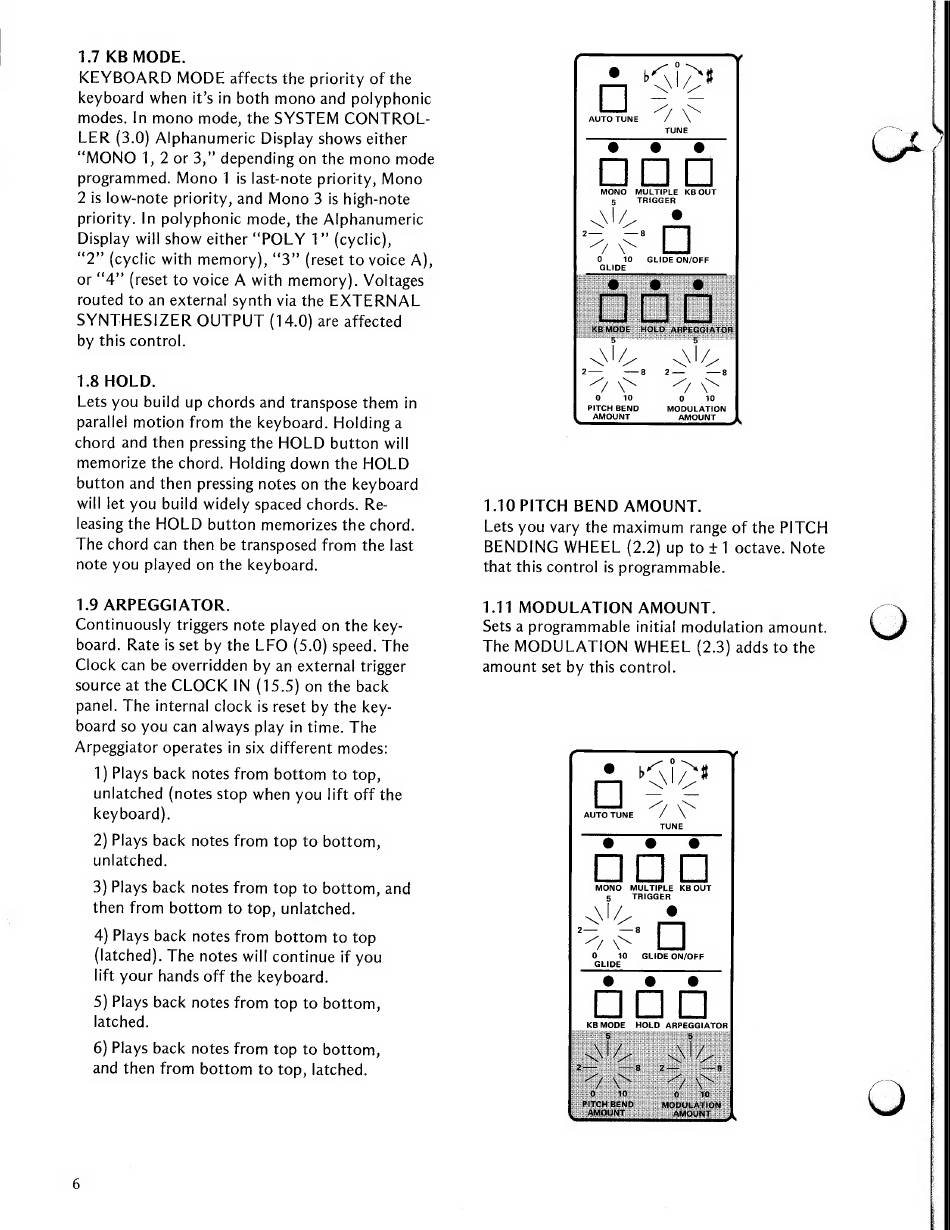

Moog MEMORYMOOG 345 Owner's And Service Manual page 10

1.7 KB MODE.
KEYBOARD MODE affects the priority of the
keyboard when it's in both mono and polyphonic
modes. In mono mode, the SYSTEM CONTROL-
LER (3.0) Alphanumeric Display shows either
"MONO 1, 2 or 3," depending on the mono mode
programmed. Mono 1 is last-note priority, Mono
2 is low-note priority, and Mono 3 is high-note
priority. In polyphonic mode, the Alphanumeric
Display will show either "POLY 1" (cyclic),
"2" (cyclic with memory), "3" (reset to voice A),
or "4" (reset to voice A with memory). Voltages
routed to an external synth via the EXTERNAL
SYNTHESIZER OUTPUT (14.0) are affected
by this control.
1.8 HOLD.
Lets you build up chords and transpose them in
parallel motion from the keyboard. Holding a
chord and then pressing the HOLD button will
memorize the chord. Holding down the HOLD
button and then pressing notes on the keyboard
will let you build widely spaced chords. Re-
leasing the HOLD button memorizes the chord.
The chord can then be transposed from the last
note you played on the keyboard.
1.9 ARPEGGIATOR.
Continuously triggers note played on the key-
board. Rate is set by the LFO (5.0) speed. The
Clock can be overridden by an external trigger
source at the CLOCK IN (15.5) on the back
panel. The internal clock is reset by the key-
board so you can always play in time. The
Arpeggiator operates in six different modes:
1) Plays back notes from bottom to top,
unlatched (notes stop when you lift off the
keyboard).
2) Plays back notes from top to bottom,
unlatched.
3) Plays back notes from top to bottom, and
then from bottom to top, unlatched.
4) Plays back notes from bottom to top
(latched). The notes will continue if you
lift your hands off the keyboard.
5) Plays back notes from top to bottom,
latched.
6) Plays back notes from top to bottom,
and then from bottom to top, latched.
feltal
| RBMODE HOLD AgPEGGIATOH
aN
PITCH BEND MODULATION
AMOUNT AMOUNT
1.10 PITCH BEND AMOUNT.
Lets you vary the maximum range of the PITCH
BENDING WHEEL (2.2) up to + 1 octave. Note
that this control is programmable.
1.11 MODULATION AMOUNT.
Sets a programmable initial modulation amount.
The MODULATION WHEEL (2.3) adds to the
amount set by this control.
MONO MULTIPLE KB OUT
5 TRIGGER
_KBMODE HOLD ARPEGGIATOR
