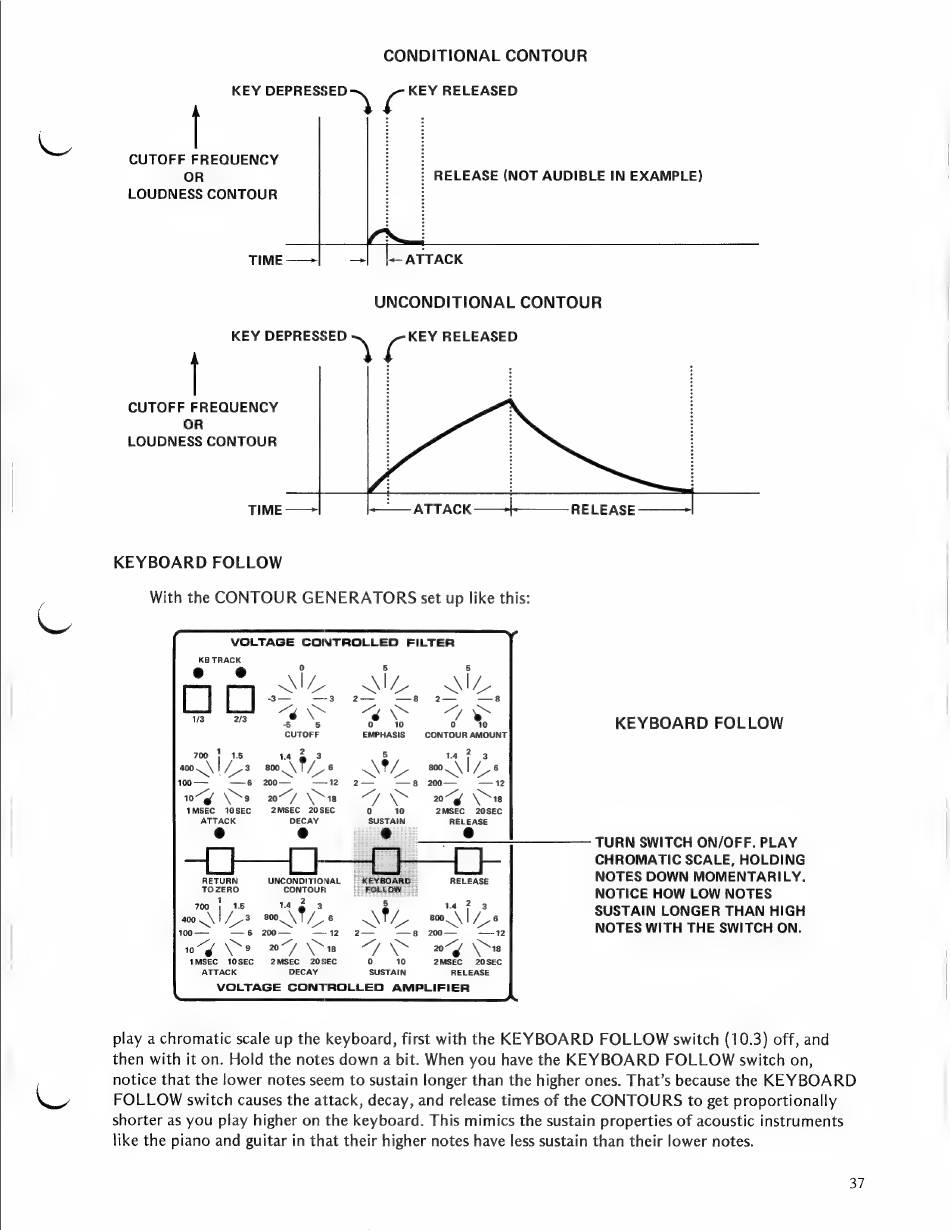

CONDITIONAL CONTOUR
KEY peblccaan \ c KEY RELEASED
bia CUTOFF FREQUENCY io
OR ; | RELEASE (NOT AUDIBLE IN EXAMPLE)
LOUDNESS CONTOUR
UNCONDITIONAL CONTOUR
KEY DEPRESSED 5 oO RELEASED
|
CUTOFF FREQUENCY
OR
LOUDNESS CONTOUR
ATTACK —-++—— RELEASE
TIME ——
KEYBOARD FOLLOW
With the CONTOUR GENERATORS set up like this:
VOLTAGE CONTROLLED FILTER
KB TRACK
CUTOFF EMPHASIS CONTOUR AMOUNT
700 15 1.4 ° 3
ao0.\ 1/3 goo. \ Zé
100—- —6 200 -12
10" Ye 20~/ 18
1MSEC 10SEC 2MSEC 20SEC 2MSEC 20SEC
ATTACK DECAY RELEASE
TURN SWITCH ON/OFF. PLAY
CHROMATIC SCALE, HOLDING
RETURN UNCONDITIONAL KEYBOARD RELEASE NOTES DOWN MOMENTARI LY.
Toeene cones iii ; NOTICE HOW LOW NOTES
POD: 4 18 "ee ee os SUSTAIN LONGER THAN HIGH
wo! (ee mee es cae | can NOTES WITH THE SWITCH ON.
2077 \~e 7 \ og 8
IMSEC 10SEC 2MSEC 20SEC 0 10 2MSEC 20SEC
ATTACK DECAY SUSTAIN RELEASE
VOLTAGE CONTROLLED AMPLIFIER
play a chromatic scale up the keyboard, first with the KEYBOARD FOLLOW switch (10.3) off, and
then with it on. Hold the notes down a bit. When you have the KEYBOARD FOLLOW switch on,
notice that the lower notes seem to sustain longer than the higher ones. That's because the KEYBOARD
Vy FOLLOW switch causes the attack, decay, and release times of the CONTOURS to get proportionally
shorter as you play higher on the keyboard. This mimics the sustain properties of acoustic instruments
like the piano and guitar in that their higher notes have less sustain than their lower notes.
37
