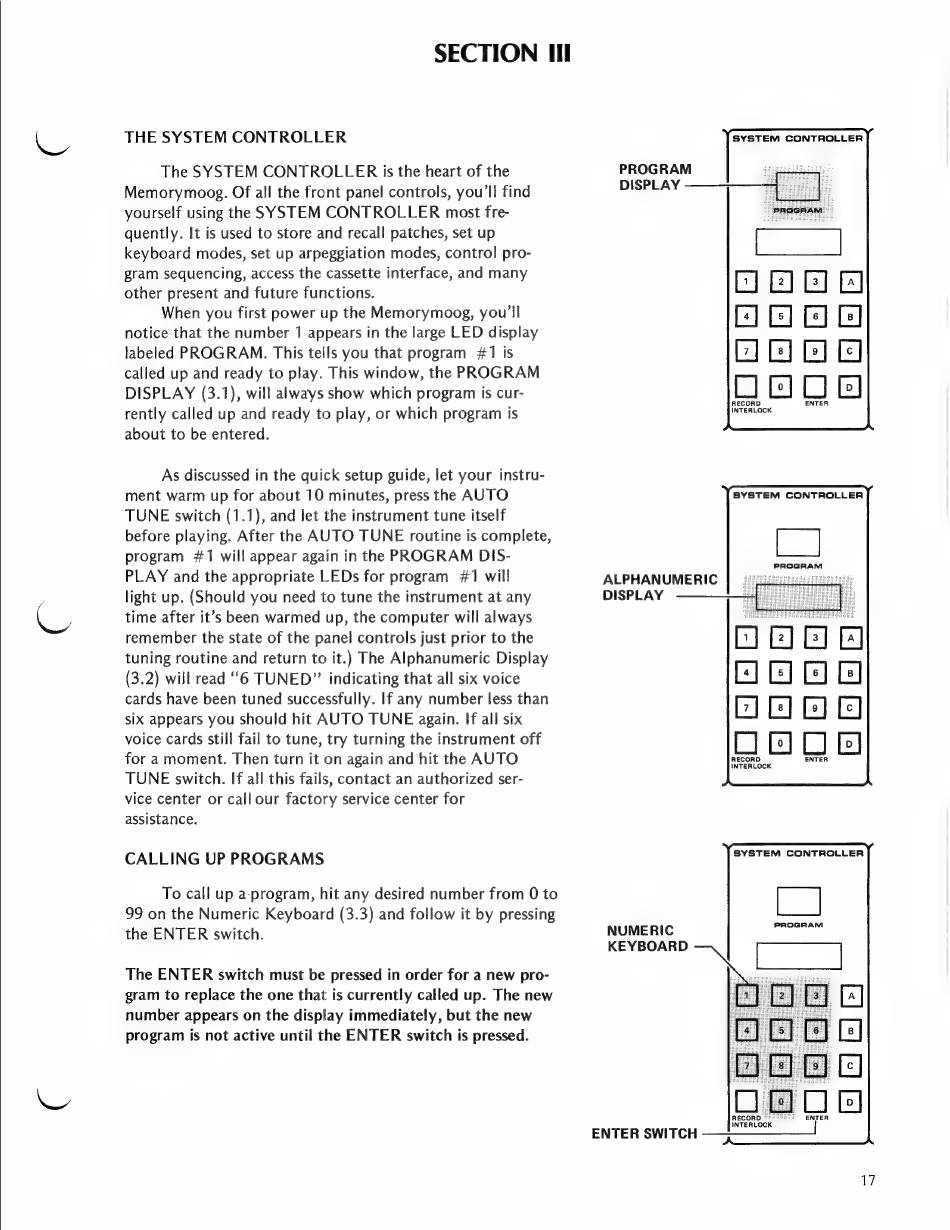

SECTION Ill
THE SYSTEM CONTROLLER
The SYSTEM CONTROLLER is the heart of the
Memorymoog. Of all the front panel controls, you'll find
yourself using the SYSTEM CONTROLLER most fre-
quently. It is used to store and recall patches, set up
keyboard modes, set up arpeggiation modes, control pro-
gram sequencing, access the cassette interface, and many
other present and future functions.
When you first power up the Memorymoog, you'll
notice that the number 1 appears in the large LED display
labeled PROGRAM. This tells you that program #1 is
called up and ready to play. This window, the PROGRAM
DISPLAY (3.1), will always show which program is cur-
rently called up and ready to play, or which program is
about to be entered.
As discussed in the quick setup guide, let your instru-
ment warm up for about 10 minutes, press the AUTO
TUNE switch (1.1), and let the instrument tune itself
before playing. After the AUTO TUNE routine is complete,
program #1 will appear again in the PROGRAM DIS-
PLAY and the appropriate EDs for program #1 will
light up. (Should you need to tune the instrument at any
time after it's been warmed up, the computer will always
remember the state of the panel controls just prior to the
tuning routine and return to it.) The Alphanumeric Display
(3.2) will read "6 TUNED" indicating that all six voice
cards have been tuned successfully. If any number less than
six appears you should hit AUTO TUNE again. If all six
voice cards still fail to tune, try turning the instrument off
for a moment. Then turn it on again and hit the AUTO
TUNE switch. If all this fails, contact an authorized ser-
vice center or call our factory service center for
assistance.
CALLING UP PROGRAMS
To call up a-program, hit any desired number from 0 to
99 on the Numeric Keyboard (3.3) and follow it by pressing
the ENTER switch.
The ENTER switch must be pressed in order for a new pro-
gram to replace the one that is currently called up. The new
number appears on the display immediately, but the new
program is not active until the ENTER switch is pressed.
SYSTEM CONTROLLER
PROGRAM
DISPLAY el
PROGRAM
[|
a a a
HEE
EE Gl el
Ey)
RECORD ENTER
INTERLOCK
SYSTEM CONTROLLER
ALPHANUMERIC
DISPLAY
SYSTEM CONTROLLER
NUMERIC Pap nee
KEYBOARD Cd
2] E]
AGE
[2]
RECORD L] [e]
ENTER SWITCH ——————__|
17
