Hold a note in the middle of the keyboard and turn the outer ring of the FREQUENCY controls
(6.5) for OSCILLATOR 2. Experiment with changing the octave settings of both OSCILLATOR 1 and
OSCILLATOR 2. Remember that in this patch, you're only listening to the output of OSCILLATOR 2.
By turning up the MIXER level controls to OSCILLATOR 1, you'll hear its output in addition to that of
OSCILLATOR 2.
Interesting things start happening when you apply control voltages from a VOLTAGE PEDAL (4.0),
the LFO (5.0), and/or the VOICE MODULATION section (5.4) to the frequency of OSCILLATOR 2
when it's synced to OSCILLATOR 1.
FREQUENCY CONTROLS
OSCILLATOR 2 and OSCILLATOR 3 both have controls (6.5 and 6.6) that let you detune them
+a minor sixth from OSCILLATOR 1. These FREQUENCY controls are set up concentrically: the outer
ring is used for large tuning adjustments and the inner ring is for fine tuning adjustments. With these
tuning controls you can do things like play triads from each single note on the keyboard, tuning OSCIL-
LATOR 2 and OSCILLATOR 3 toa third and a fifth above OSCILLATOR 1. You can achieve compound
intervals like ninths, tenths, and thirteenths by raising the octave setting of the OSCILLATOR after you've
tuned it up to a second, third, or sixth using the OCTAVE switches (6.1).
To hear the effects of the FREQUENCY controls, go back to the live panel patch we've been working
with and turn up the levels of OSCILLATORS 1 and 3 and turn off the SYNC switch. Then experiment
with tuning the different oscillators to various intervals. Change the octave settings too.

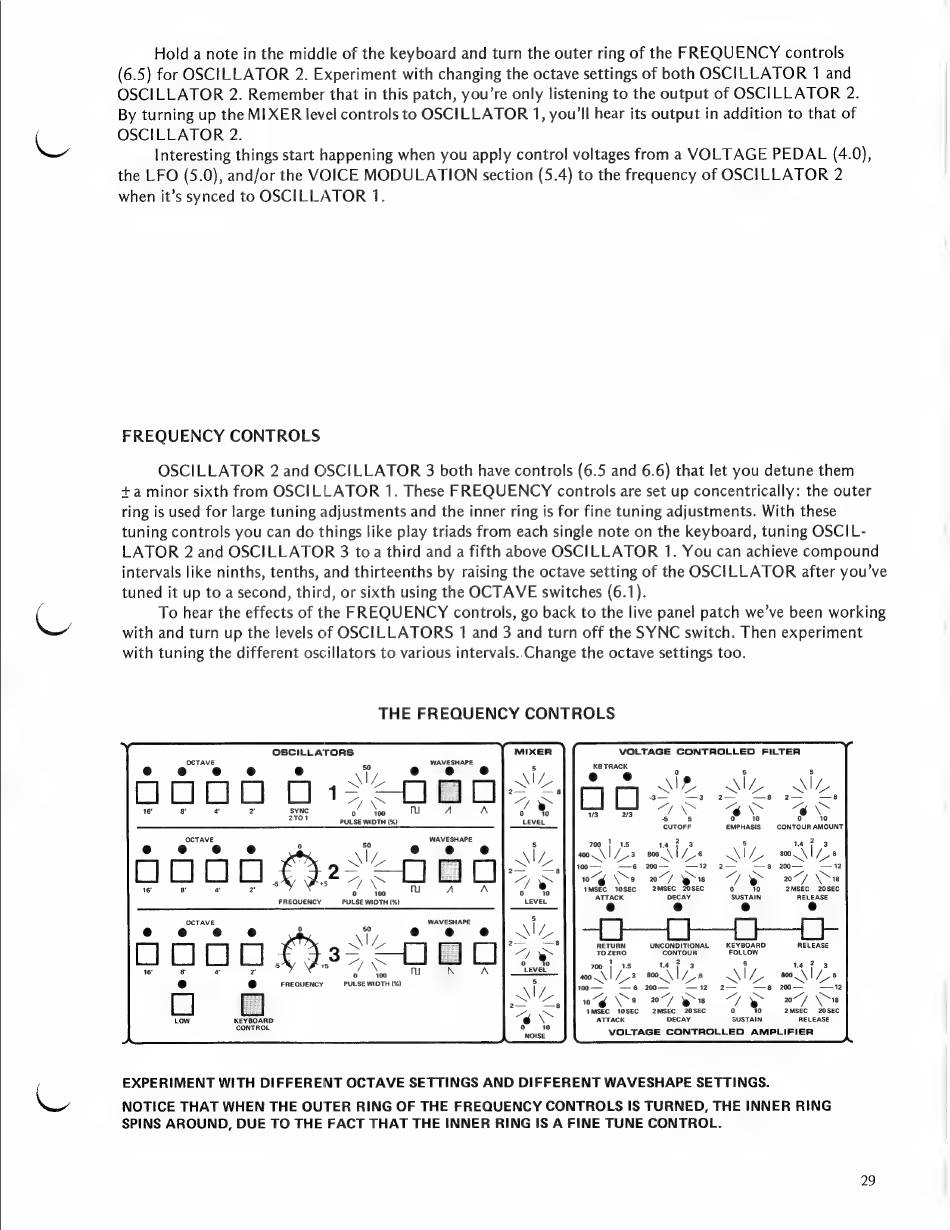

THE FREQUENCY CONTROLS
OSCILLATORS VOLTAGE CONTROLLED FILTER
KB TRACK
Q 5
wie ol
3 3
mu
"Y
5 5 10
CUTOFF EMPHASIS CONTOUR AMOUNT
> ie, Zz
4$
100
PULSE WIDTH (%)}
WAVESHAPE
1MSEC 10SEC 2MSEC 20SEC
0 = 100 0 0
FREQUENCY PULSE WIDTH (%) Ce "e.
RETURN UNCONDITIONAL KEYBOARD RELEASE
TOZERO CONTOUR FOLLOW
yoo | 15 1 2? 3 6 142 3
wo \| (03 oo \|/ 6 SIZ 200 \ 1/6
700 6 200 412 2 2 a}
2 y
0"¢ Ye 207 / ee ef. . 20~/ oe
TMSEC 10SEC 2MSEC 20SEC Oo 10 2MSEC 20SEC
ATTACK DECAY SUSTAIN RELEASE
VOLTAGE CONTROLLED AMPLIFIER
KEYBOARD
CONTROL
EXPERIMENT WITH DIFFERENT OCTAVE SETTINGS AND DIFFERENT WAVESHAPE SETTINGS.
NOTICE THAT WHEN THE OUTER RING OF THE FREQUENCY CONTROLS IS TURNED, THE INNER RING
SPINS AROUND, DUE TO THE FACT THAT THE INNER RING IS A FINE TUNE CONTROL.
