14.0 EXTERNAL SYNTHESIZER OUT.
14.1 CONTROL VOLT 1 VOLT/OCT.
A 1 volt-per-octave (+ 10%) output for control-
ling an external synthesizer or synthesizer
accessory. Range and scale trimmers for tuning
the output to an external synthesizer are acces-
sible through the rear panel.
14.2 V-GATE 0 - 15V.
A voltage gate output with a level of from 0 to
15 volts for interfacing with instruments which
accept voltage gates.
14.3 S-TRIG 15V TO 0.
A switch trigger output with a range of 15 volts
to 0 volts. For interfacing to instruments with
switch trigger inputs.
15.0 FOOTSWITCH IN.
15.1 RELEASE.
Accepts a switch input for turning the release
portion of the Contour Generators on and off
(see 10.4). With the RELEASE switch on the
front panel on, depressing the RELEASE FOOT-
SWITCH will turn the RELEASE switch on the
panel off. At that point, the RELEASE FOOT-
SWITCH will act asa SUSTAIN PEDAL would
on a piano: pressed down, the RELEASE func-
tion of the CONTOUR GENERATORS (8.5 and
9.0) will be on; let up, the RELEASE function
of the CONTOUR GENERATORS will be off.
aoe —
a en
15.2 HOLD.
A switch input for turning the HOLD function
(1.8) on and off.
15.3 PROGRAM ADVANCE. VO
A switch input for advancing through the PRO-
GRAM SEQUENCES (3.7).
15.4 PROGRAM BACKSTEP.
A switch for stepping through the PROGRAM
SEQUENCES (3.7) in reverse order.
15.5 GLIDE.
Turns the front panel GLIDE switch on or off.
15.6 CLOCK IN.
Replaces the internal clock from the LFO (5.0)
with an external clock.
16.0 CASSETTE INTERFACE.
Connections are made from the three jacks toa
cassette recorder for transfer of memory contents
to and from tape.
17.0 POWER ON/OFF.
Turns the Memorymoog on and off. S
18.0 POWERCORD.
A detachable cord is supplied with your instru-
ment. Be careful to grasp it by the plug when
taking it out of an electrical outlet.

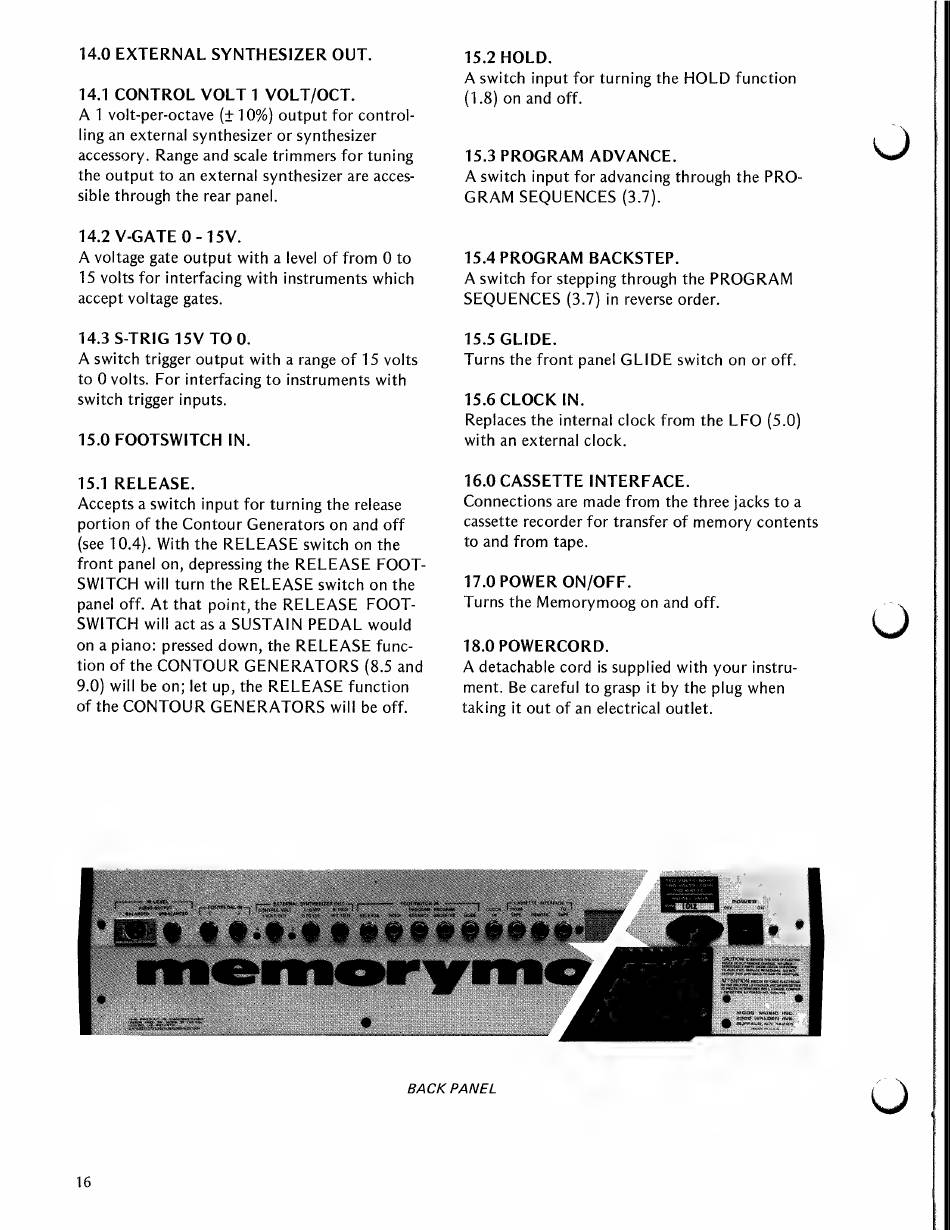

BACK PANEL ( )
