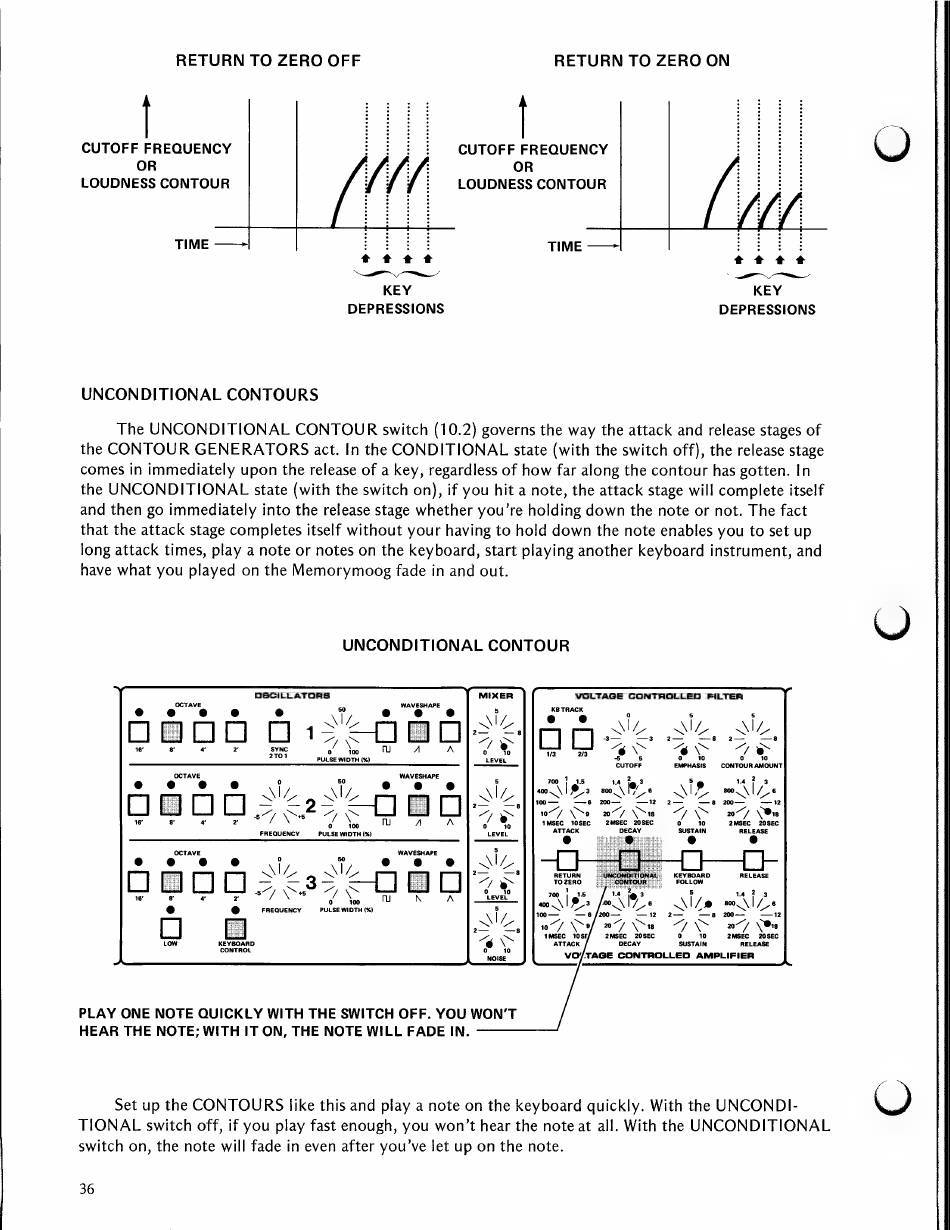

Moog MEMORYMOOG 345 Owner's And Service Manual page 40

RETURN TO ZERO OFF RETURN TO ZERO ON
|
CUTOFF FREQUENCY
CUTOFF FREQUENCY
OR OR
LOUDNESS CONTOUR LOUDNESS CONTOUR
TIME —— Bo St TIME ——" Bo tee Eee oss
tntet tt @ tft
nS ee ee
KEY KEY
DEPRESSIONS DEPRESSIONS
UNCONDITIONAL CONTOURS
The UNCONDITIONAL CONTOUR switch (10.2) governs the way the attack and release stages of
the CONTOUR GENERATORS act. In the CONDITIONAL state (with the switch off), the release stage
comes in immediately upon the release of a key, regardless of how far along the contour has gotten. In
the UNCONDITIONAL state (with the switch on), if you hit a note, the attack stage will complete itself
and then go immediately into the release stage whether you're holding down the note or not. The fact
that the attack stage completes itself without your having to hold down the note enables you to set up
long attack times, play a note or notes on the keyboard, start playing another keyboard instrument, and
have what you played on the Memorymoog fade in and out.
UNCONDITIONAL CONTOUR
OSCILLATORS
VOLTAGE CONTROLLED FILTER
WAVESHAPE
s
WAVESHAPE
1MSEC 10SEC 2MSEC aoaee
ATTACK DECAY SUSTAIN RELEASE
FREQUENCY PULSE WIDTH (%)
RETURN UNCONDITIONAL Meo RELEASE
ZERO CONTOUR LLOW
WW oNiLs
—12
m7 \Ou
PLAY ONE NOTE QUICKLY WITH THE SWITCH OFF. YOU WON'T
HEAR THE NOTE; WITH IT ON, THE NOTE WILL FADE IN.
Set up the CONTOURS like this and play a note on the keyboard quickly. With the UNCONDI-
TIONAL switch off, if you play fast enough, you won't hear the note at all. With the UNCONDITIONAL
switch on, the note will fade in even after you've let up on the note.
