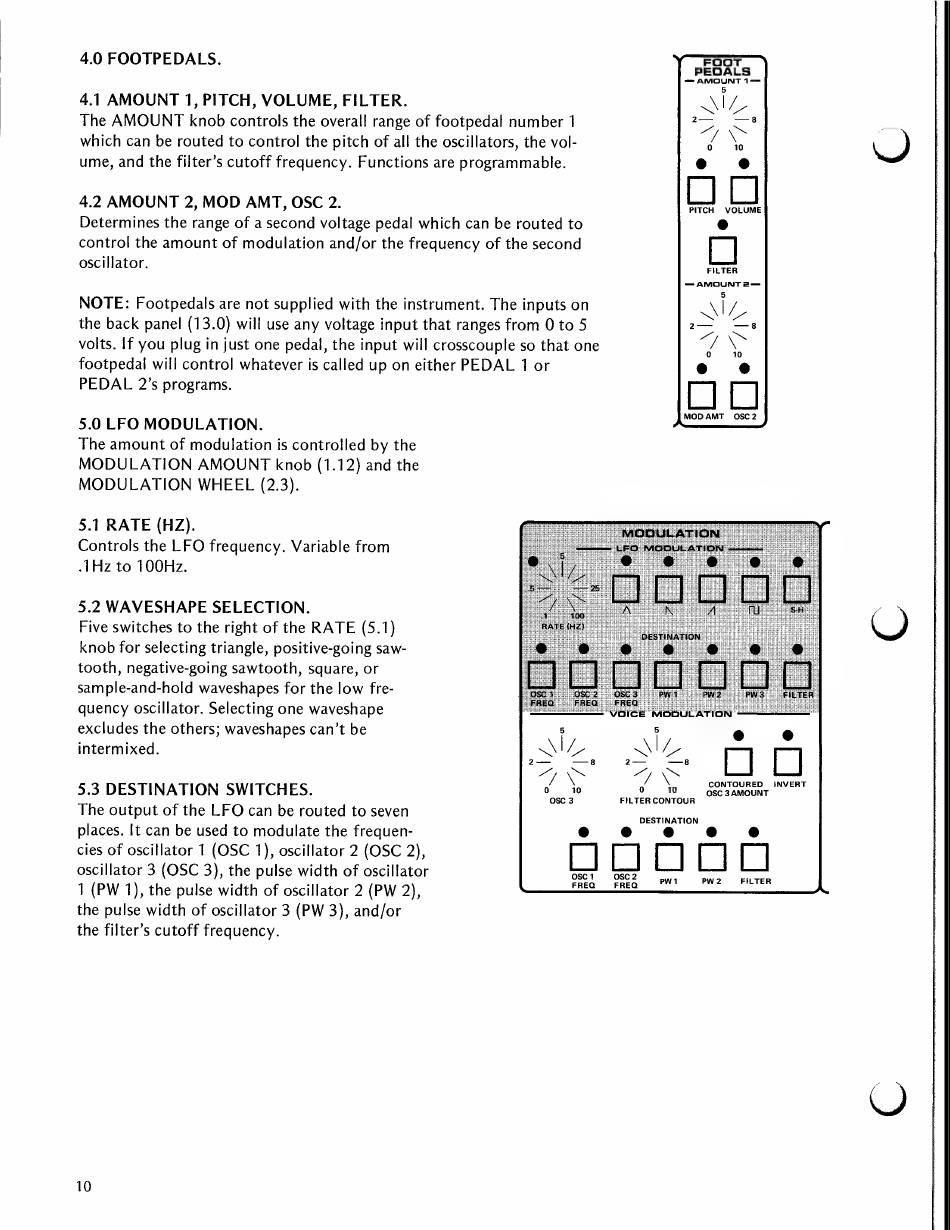

4.0 FOOTPEDALS.
4.1 AMOUNT 1, PITCH, VOLUME, FILTER.
The AMOUNT knob controls the overall! range of footpedal number 1
which can be routed to control the pitch of all the oscillators, the vol-
FOOT
PEDALS
a ANE 1—
Ae
ume, and the filter's cutoff frequency. Functions are programmable. e 'e
4.2 AMOUNT 2, MOD AMT, OSC 2.
PITCH VOLUME
Determines the range of a second voltage pedal which can be routed to e
control the amount of modulation and/or the frequency of the second
oscillator.
NOTE: Footpedals are not supplied with the instrument. The inputs on
the back panel (13.0) will use any voltage input that ranges from 0 to 5
volts. If you plug in just one pedal, the input will crosscouple so that one
footpedal will control whatever is called up on either PEDAL 1 or
PEDAL 2's programs.
5.0 LFO MODULATION.
The amount of modulation is controlled by the
MODULATION AMOUNT knob (1.12) and the
MODULATION WHEEL (2.3).
5.1 RATE (HZ).
Controls the LFO frequency. Variable from
-1Hz to 100Hz.
5.2 WAVESHAPE SELECTION.
Five switches to the right of the RATE (5.1)
knob for selecting triangle, positive-going saw-
tooth, negative-going sawtooth, square, or
sample-and-hold waveshapes for the low fre-
quency oscillator. Selecting one waveshape
excludes the others; waveshapes can't be
intermixed.
5.3 DESTINATION SWITCHES.
The output of the LFO can be routed to seven
places. It can be used to modulate the frequen-
a 'RATE iH2)
-e@ e
DOUU
| Ose) Osc 2
| FREQ FREQ = FREQ
FILTER
— AMOUNT2—
MODAMT OSC 2
MODULATION
LEO MODULATION
goood
A
_ DESTINATION
Pw2)
VOICE MODULATION —
LI
CONTOURED INVERT
OSC 3 AMOUNT
10
FILTER CONTOUR
DESTINATION
cies of oscillator 1 (OSC 1), oscillator 2 (OSC 2),
oscillator 3 (OSC 3), the pulse width of oscillator
1 (PW 1), the pulse width of oscillator 2 (PW 2),
the pulse width of oscillator 3 (PW 3), and/or
the filter's cutoff frequency.
