IARMOR EDGE™
BEFORE INSTALLATION
REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE
PRESENT. READ INSTRUCTIONS CAREFULLY BEFORE
STARTING INSTALLATION. ASSISTANCE IS RECOMMEND-
ED. THANK YOU FOR CHOOSING OUR PRODUCT!
*ROCKER PANEL MOUNT
*DRILLING NOT REQUIRED

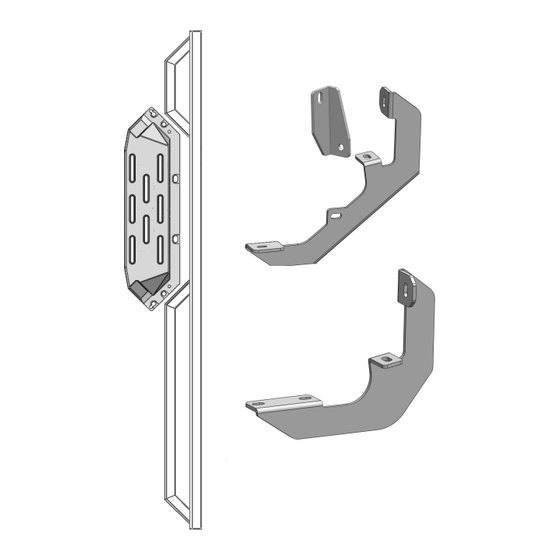

PART LIST
Driver Front Support
Bracket (DFS)
Driver Rear Mounting
Bracket (DRM)
Pedal
Drain
Hole at
Bottom
Driver Side Step Bar
iArmor
Front
Driver Front
Mounting
Bracket (DFM)
Note:
Step bars are NOT interchangeable. Make
sure drain holes at the bottom will be located at
the rear direction of the step bars.
Customer Support: info@iarmorauto.com
®
Torque Value
Fastener Size
Tightening Torque (ft-lbs)
6mm
8mm
10mm
12mm
14mm
Passenger Front Support
Bracket (PFS)
Passenger
Front
Mounting
Bracket
Passenger Rear Mount-
1
PART#: IA-N296H
Required
6-7
16-18
31-32
56-58
92-94
ing Bracket (PRM)
Drain
Hole at
Bottom
Passenger Side Step Bar
Rev. 20221201
√
√
X
X
X
Pedal
Advertisement
Related Manuals for iArmor EDGE IA-N296H
Summary of Contents for iArmor EDGE IA-N296H
- Page 1 ® IARMOR EDGE™ PART#: IA-N296H Torque Value BEFORE INSTALLATION Fastener Size Tightening Torque (ft-lbs) Required REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT. READ INSTRUCTIONS CAREFULLY BEFORE √ STARTING INSTALLATION. ASSISTANCE IS RECOMMEND- 16-18 √ ED. THANK YOU FOR CHOOSING OUR PRODUCT!
- Page 2 ® Hardware Package A (For Brackets & Bars Installation) Item Description Item Description M8X1.25-30 Hex Bolts M6 Large Flat Washers M8 Large Flat Washers M6X1 Nylon Lock Nuts M8 Lock Washers M8X1.25-20 T-Bolts M8 Nylon Lock Nuts M8 Plastic Washers...
- Page 3 ® Remove Plastic Plugs To The instruction here is for your reference only. We strongly Uncover Threaded Inserts recommend the professional installer for best result. We are not responsible for any damage caused by the installation. Front STEP 1 Front Install (2) Pedals onto the step bars with (12) M8X1.25-25mm...
- Page 4 ® Insert the T-bolt with M8 Plastic Thread down the M8 Washer in the Plastic Washer slot on the step against the step bar bar and rotate (2) M8X1.25-30 Hex Bolts the T-bolt to (2) M8 Large Flat Washers (2) M8 Lock Washers 90°...
- Page 5 ® (3) M8 Plastic Washers (3) M8X1.25-20mm T-Bolts (3) M8 Large Flat Washers (3) M8 Nylon Lock Nuts Front Bottom View (1) M6X1-20mm Square Head Bolt (1) M6 Large Flat Washer (1) M6 Nylon Lock Nut (Fig 7) M6X1-20 Square...
