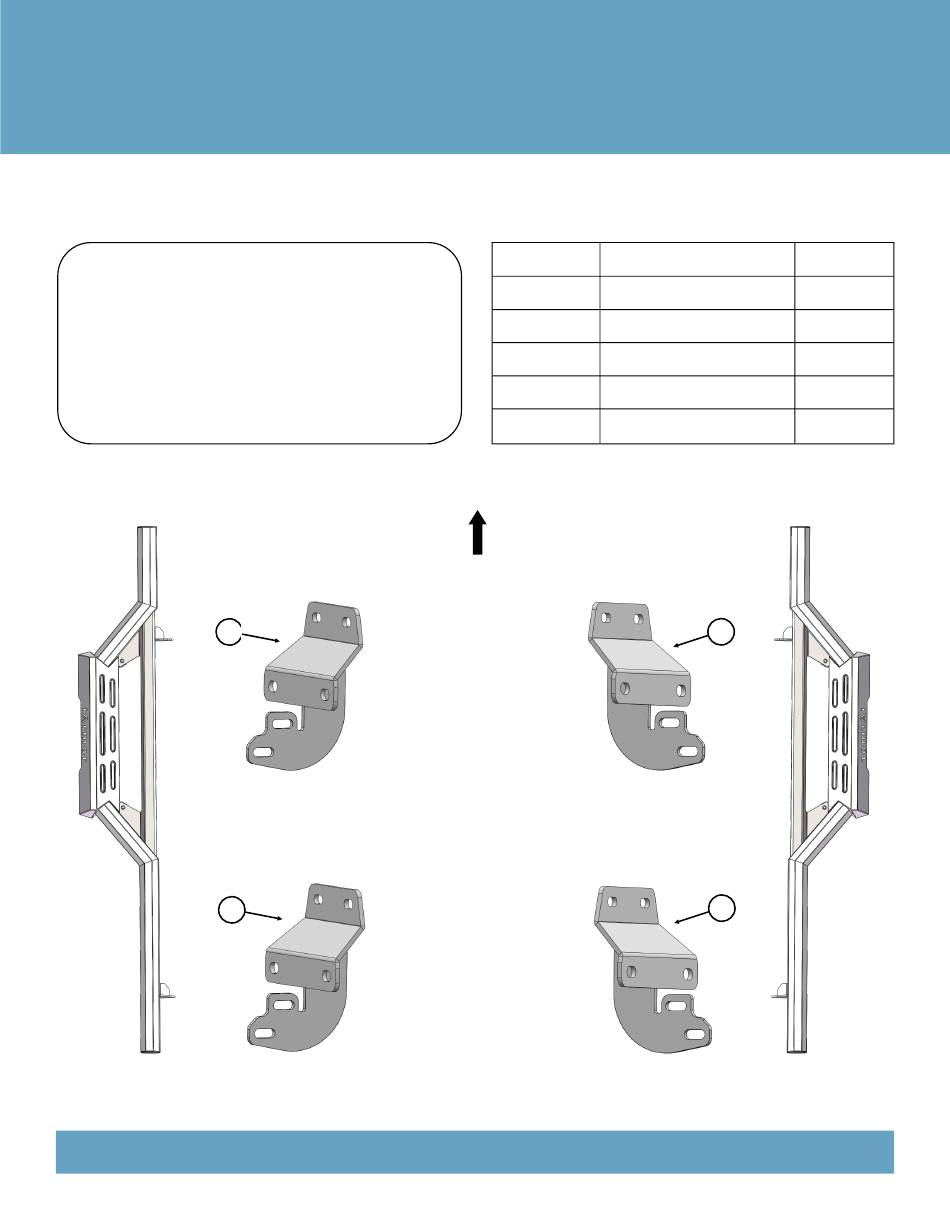

IARMOR EDGE™
BEFORE INSTALLATION
REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS
ARE PRESENT. READ INSTRUCTIONS CAREFULLY
BEFORE STARTING INSTALLATION. ASSISTANCE IS
RECOMMENDED. THANK YOU FOR CHOOSING OUR
PRODUCT!
*ROCKER PANEL MOUNT
*DRILLING / TRIMMING NOT REQUIRED
Driver
1#
1#
iArmor
Front
Customer Support: info@iarmorauto.com
®
Fastener Size
Tightening Torque (ft-lbs)
6mm
8mm
10mm
12mm
14mm
1
PART#: IA-W189
Required
6-7
X
16-18
31-32
56-58
X
92-94
X
Passenger
1#
1#
Rev. 20220501

Advertisement

loading
Need help?

Need help?

Do you have a question about the EDGE and is the answer not in the manual?

Questions and answers

Summary of Contents for iArmor EDGE

  • Page 1 ® IARMOR EDGE™ PART#: IA-W189 Fastener Size Tightening Torque (ft-lbs) Required BEFORE INSTALLATION REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT. READ INSTRUCTIONS CAREFULLY 16-18 √ BEFORE STARTING INSTALLATION. ASSISTANCE IS RECOMMENDED. THANK YOU FOR CHOOSING OUR 10mm 31-32 √...
  • Page 2 ® Hardware Package (For Brackets & Step Bars Installation) Item Description Item Description Mounting Brackets M10X1.5-25 Hex Bolts M8 Plastic Washers M10 Flat Washers M8 Large Flat Washers M10X1.5 Nylon Lock Nuts M8X1.25 Nylon Lock Nuts Customer Support: info@iarmorauto.com...
  • Page 3 ® The instruction here is for your reference only. We strongly recommend the professional installer for best result. We are not Installed Plastic responsible for any damage caused by the installation. Washers STEP 1 Starting from the Driver front of the vehicle, locate the threaded mounting studs in the rocker panel, (Fig 1).
  • Page 4 ® STEP 6 STEP 5 Once all (2) Driver Side Mounting Brackets have been installed, attach the Driver Side Step Bar to the Mounting Brackets with Move to the other side of the vehicle. Repeat Steps 1-5 to in- (4) M10X1.5-25 Hex Bolts, (8) M10 Flat Washers and (4)
