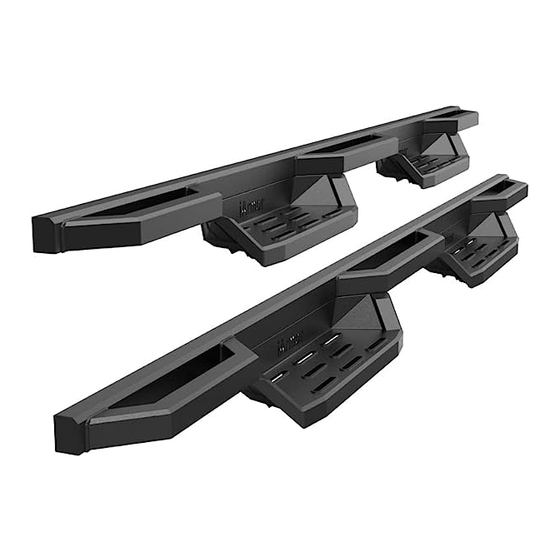

IARMOR EDGE™
BEFORE INSTALLATION
REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE
PRESENT. READ INSTRUCTIONS CAREFULLY BEFORE
STARTING INSTALLATION. ASSISTANCE IS RECOMMEND-
ED. THANK YOU FOR CHOOSING OUR PRODUCT!
Driver Side Step Bar
Driver Front/ Passenger
Center 2 Support
Brackets (DFS/ PCS2)
Front
Step Pads
iArmor
Driver Front/Passenger
Center 2 Mounting
Brackets (DFM/ PCM2)
Driver Center 1
Mounting Bracket (DCM1)
Driver Center 2/ Passenger
Front Support Brackets
(PFS/ DCS2)
Driver Center 2/Passenger
Front Mounting Brackets
(PFM/ DCM2)
Driver Rear Mounting
Bracket (DRM)
Customer Support: info@iarmorauto.com
1
Torque Value
Fastener Size
6mm
8mm
10mm
12mm
14mm
PFM/ DCM2
Passenger Center 1
Mounting Bracket (PCM1)
DFS/ PCS2
DFM/ PCM2
Passenger Rear Mounting
Bracket (PRM)
®
PART#: IA‐N295
Tightening Torque (ft-lbs)
6-7
16-18
31-32
56-58
92-94
Passenger Side Step Bar
PFS/ DCS2
Step Pads
Rev. 20200401
Advertisement
Table of Contents
Related Manuals for iArmor EDGE IA-N295
Summary of Contents for iArmor EDGE IA-N295
- Page 1 ® IARMOR EDGE™ PART#: IA‐N295 Torque Value BEFORE INSTALLATION Fastener Size Tightening Torque (ft-lbs) 16-18 REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT. READ INSTRUCTIONS CAREFULLY BEFORE 10mm 31-32 STARTING INSTALLATION. ASSISTANCE IS RECOMMEND- 12mm 56-58 ED. THANK YOU FOR CHOOSING OUR PRODUCT!
- Page 2 ® X 48 X 16 X 42 X 48 M6X1-20 M6 Flat M6 Nylon M8 Lock M6X1-20 Flat Washer Lock Nut T-Bolts Washers Sunk Bolt X 20 X 24 M6X1-20 Square M8X1.25-30 M8X1.25 Nylon M8 Flat Head Bolts...
- Page 3 ® PFM/DCM2 STEP 3 PFS/DCS2 Remove the plastic plugs from each mounting location. Di- (1) M8X1.25-30 Hex Bolt rectly above each threaded insert is a top mounting location (2) M8 Flat Washers on the side of the body panel, (Fig 2). Hold a Bracket up in (1) M8X1.25 Nylon Lock Nut...
- Page 4 ® DFM/PCM2 (1) M8X1.25-30 Hex Bolt (2) M8X1.25-30 Hex Bolts (2) M8 Flat Washers (2) M8 Flat Washers (1) M8X1.25 Nylon Lock (2) M8 Lock Washers DFS/PCS2 (Fig 6) Passenger Center 2 Mounting Bracket Assembly (Fig 4B) Mounting Bracket Illustration to Body Panel ...
- Page 5 ® STEP 12 STEP 10 Once all (4) Brackets have been installed, attach the Assem- Repeat Steps 2—11 for Driver/left side running board instal- bled Passenger Side Step Bar to the Brackets using (4) M6X1 lation.
