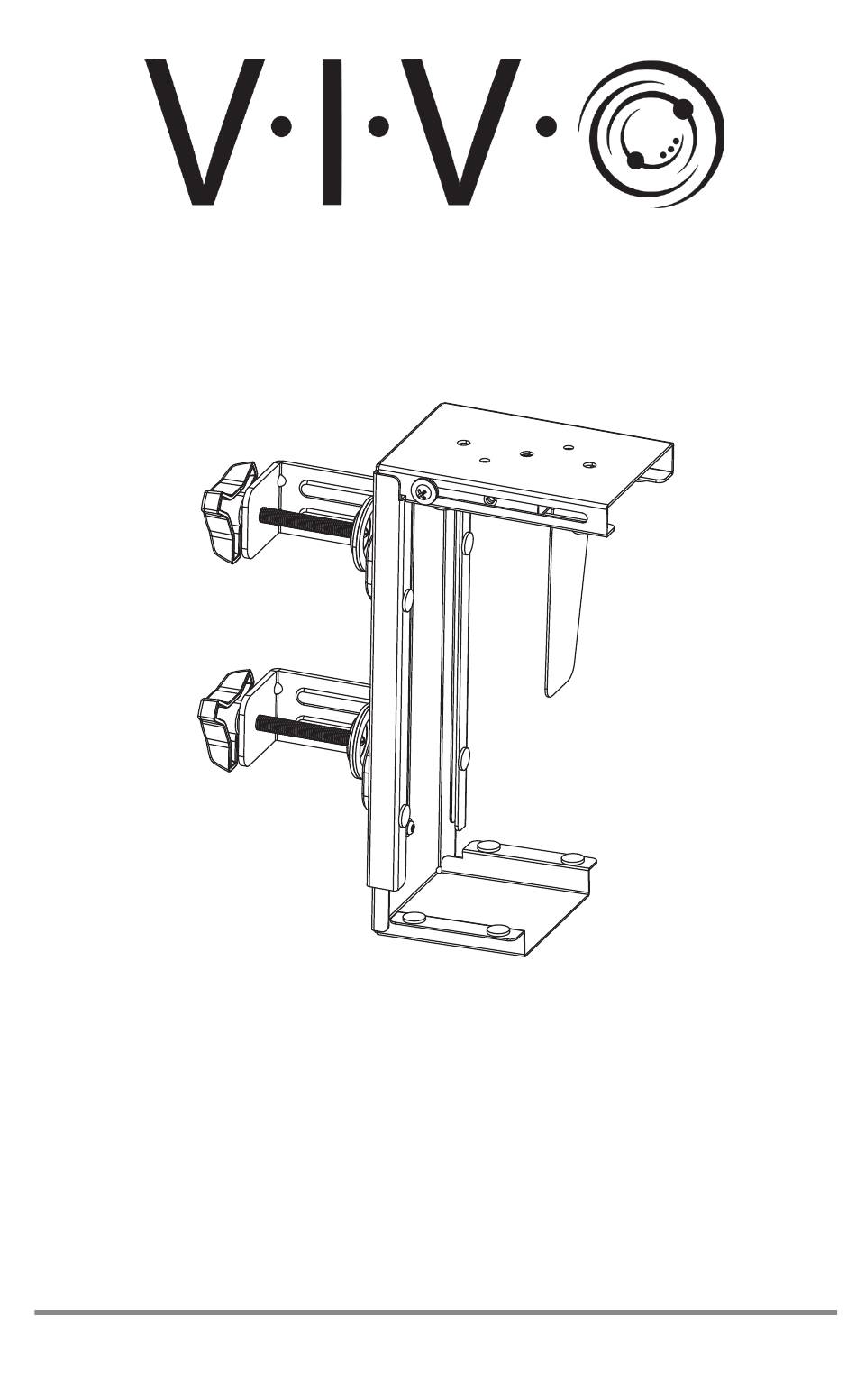

- Page 1 Under Desk Leg Clamp PC Mount MOUNT-PC01C Assembly Manual...
-
Page 2: Package Contents
If you do not understand these directions, or if you have any doubts about the safety of the installation, please contact our product support team at 309-278-5303 or help@vivo-us.com for further assistance. Check carefully to make sure there are no missing or defective parts. Failure to report missing parts within 30 days may result in denial of free replacement. -
Page 3: Assembly Steps
Assembly Steps STEP 1 Apply Pads (C) to top, bottom, and side of Mount (B) as shown. STEP 2 Loosen the Set Screws on the either side of Mount (B) using 4mm Allen Wrench (T-A) to slide bottom support bracket down. Screw... - Page 4 STEP 3 Insert two M5x6mm Screws (S-A) into Clamp (A) leaving a 2mm gap, as shown. Insert the heads of M5x6mm Screws (S-A) with Clamp (A) into the Keyhole Slots in Mount (B) then lift upward. Keyhole Slot...
- Page 5 STEP 4 Secure Clamp (A) to Mount (B) using M5x6mm Screws (S-A) in the lower holes. Tighten all screws using a Phillips screwdriver. STEP 5 Remove the protective film from Clamp (A) and assemble Clamp to the desk leg by tightening both knobs.
- Page 6 STEP 6 Loosen the Locking Screws on both sides of the top of Mount (A). Locking Screw Slide the Side Support Bracket out to maximum width. Optional Adjustment for Thinner PCs If your PC tower has a width of 3.19”-6.0”(81mm-152mm), the width range of the side bracket can be narrowed for a better fit.
- Page 7 STEP 7 Place PC tower in Mount (B), then slide bottom support bracket up until Mount is fit vertically to PC. Tighten Set Screws for lower support using 4mm Allen Wrench (T-A). Screw Locking Screw Slide the Side Support Bracket into place to hold PC.
- Page 8 Need Help? We’re Here For You Monday-Friday from 7am-7pm CST Saturday 8am-4pm CST Email Us Chat with Live Agent Give Us a Call help@vivo-us.com www.vivo-us.com 309-278-5303 ext. 1 FOR MORE GREAT VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: WWW.VIVO-US.COM VIVO-us @vivo_us @VIVOus VIVO...
